DSE160 | Self-Seeking Power Supply
- AC SUPPLY
VOLTAGE RANGE: 90 V to 305 V (L-N) - FREQUENCY RANGE: 48 Hz to 64 Hz (L-N)
DC OUTPUT - OUTPUT: 1 A DC at 12 V DC / 1 A DC at 24 V DC
- CURRENT LIMIT: 1.5 A DC
- RISE TIME: <20 ms
- RIPPLE AND NOISE: <1%
- EFFICIENCY: >80%
- REGULATION LINE: <0.1% Vo
- LOAD: <5% Vo
- PROTECTIONS
- Short Circuit
- Over Current
- Reverse Polarity
Call for Quote for international purchases!
$214.38

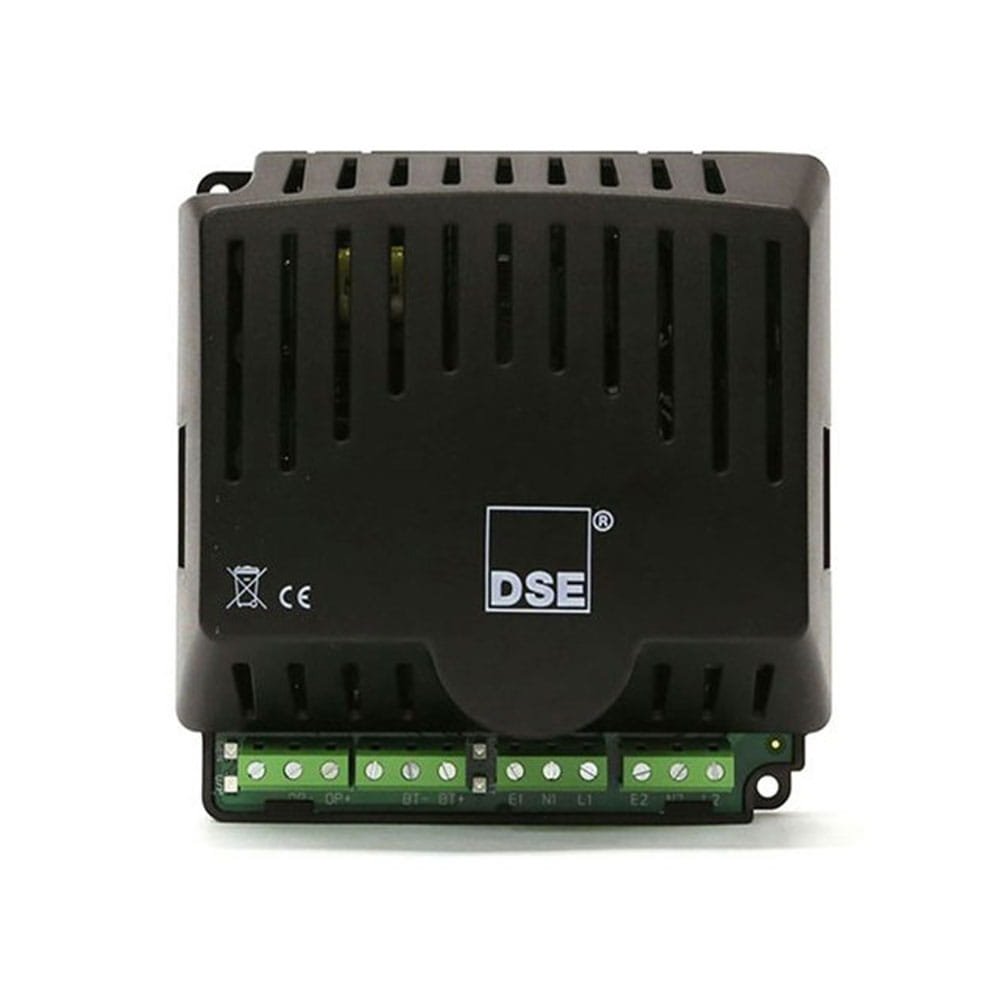

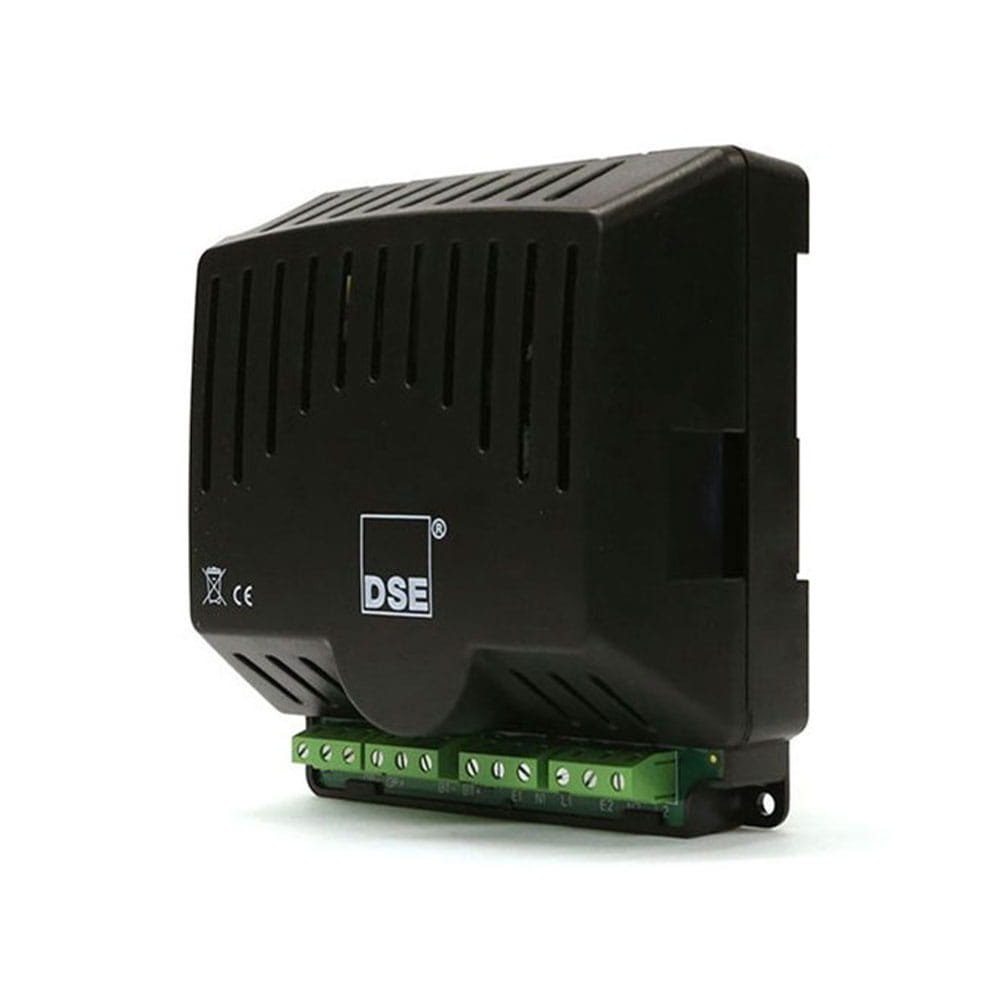

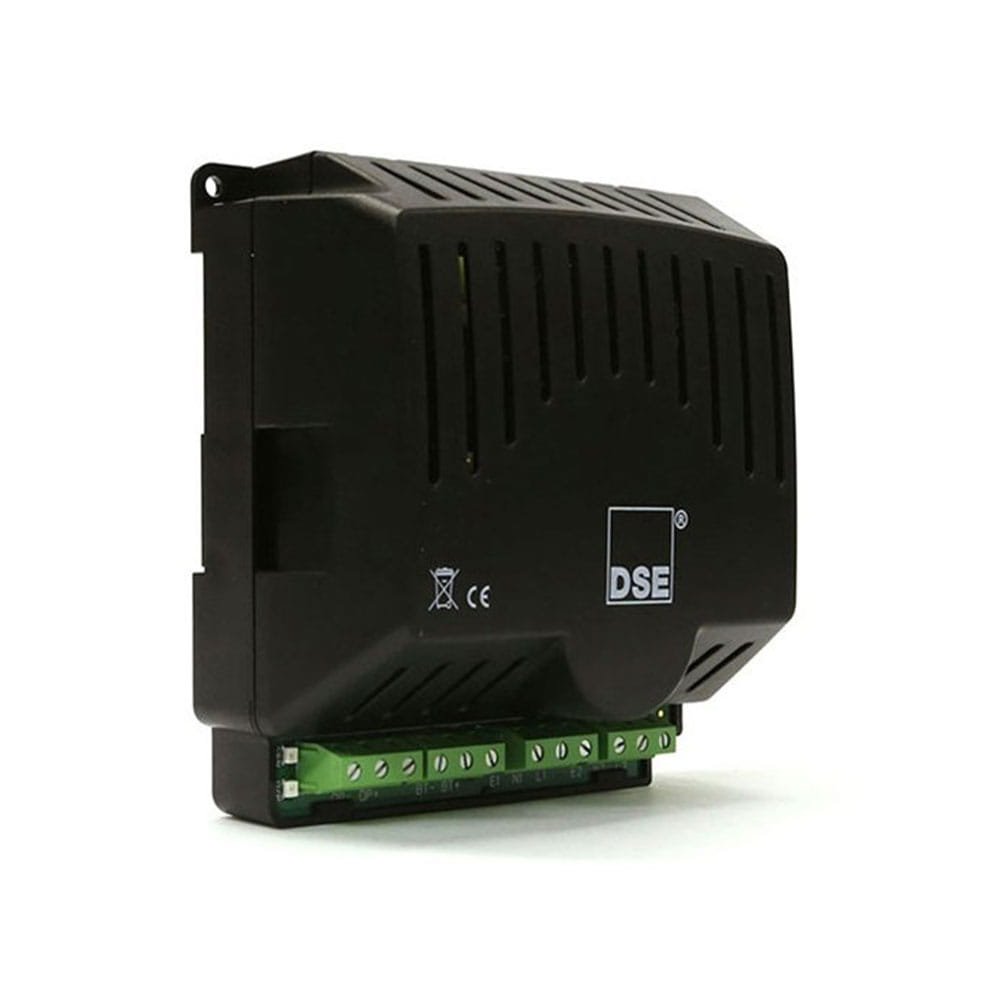

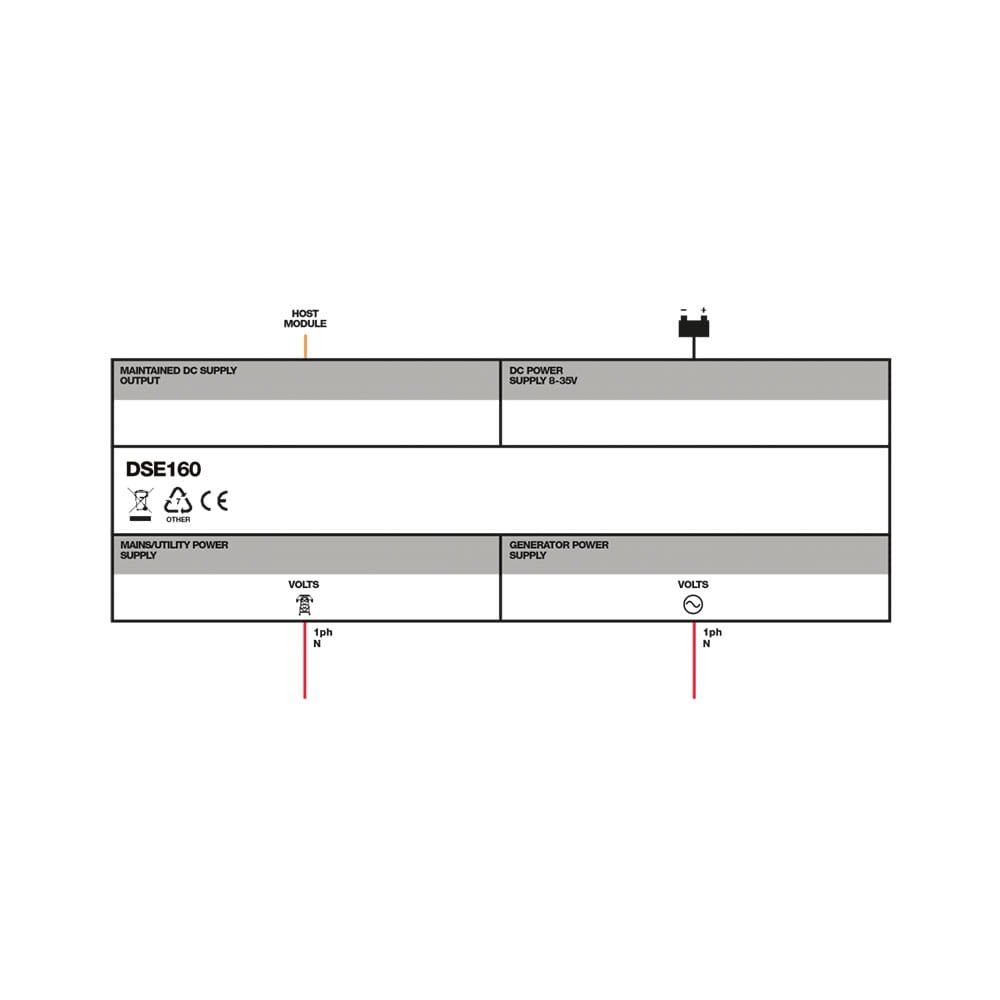

The DSE160 Self-Seeking Power Supply has been designed for use with DSE3xx control modules. The DSE160 can be supplied from a mains (utility), generator or battery and provides a power supply output that gives DC power to the ATS controller. When the mains (utility) supply fails the DSE160 automatically switches to providing generator or battery power. Three red LEDs on the front of the unit show the operating status at all times. The DSE160 is available in 12 and 24 volt versions and provides comprehensive short circuit protection.
-
12 volt & 24 volt variants.
-
LED indicators.
-
Suitable for use as an AC/DC power supply.
-
Powered by mains (utility) or generator or battery.
-
Wide operating input voltage.
-
Short circuit & over voltage protection.
-
Less than 1% output ripple.
OVERALL
136 mm x 140 mm x 63 mm (5.4” x 5.5” x 2.5”)
WEIGHT
0.4kg
PRODUCT VARIANTS

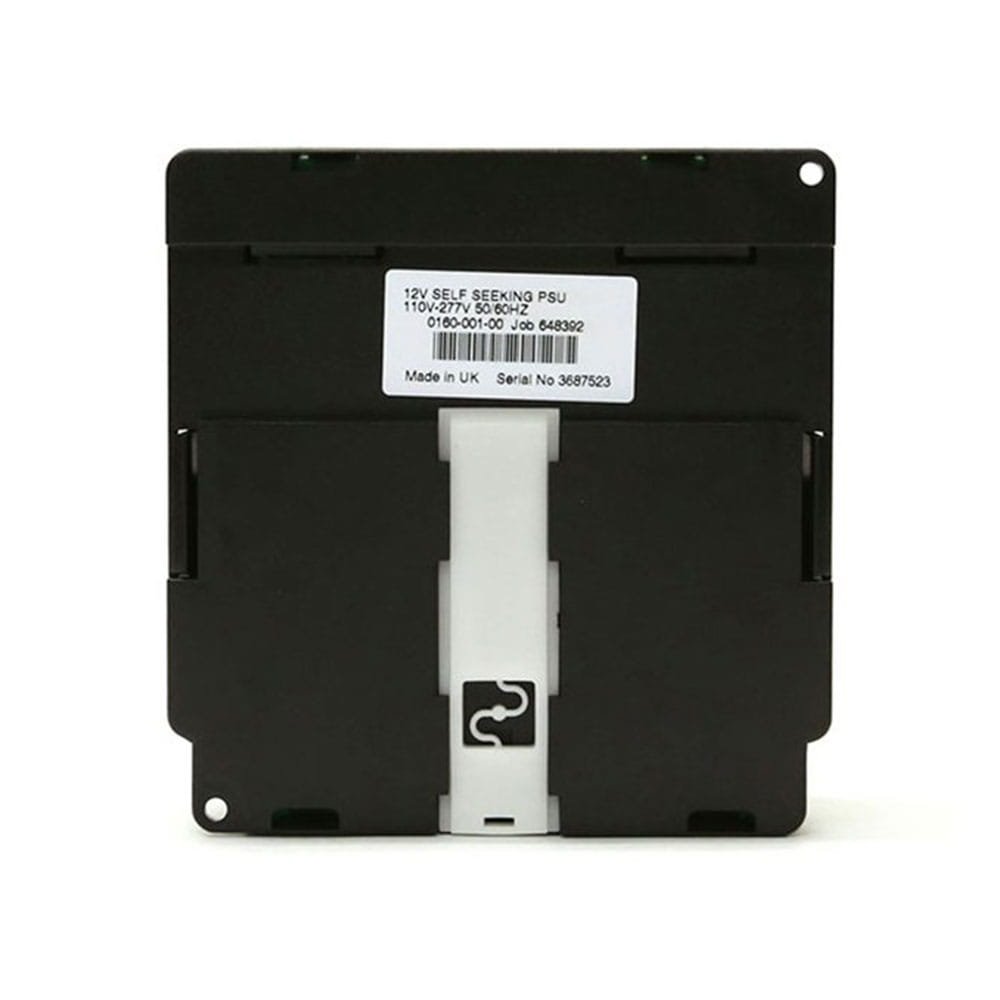

0160-00 - 12 Volt Self Seeking Power Supply (110v-277v 50.60Hz)
0160-01 - 24 Volt Self Seeking Power Supply (110v-277v 50/60Hz)
