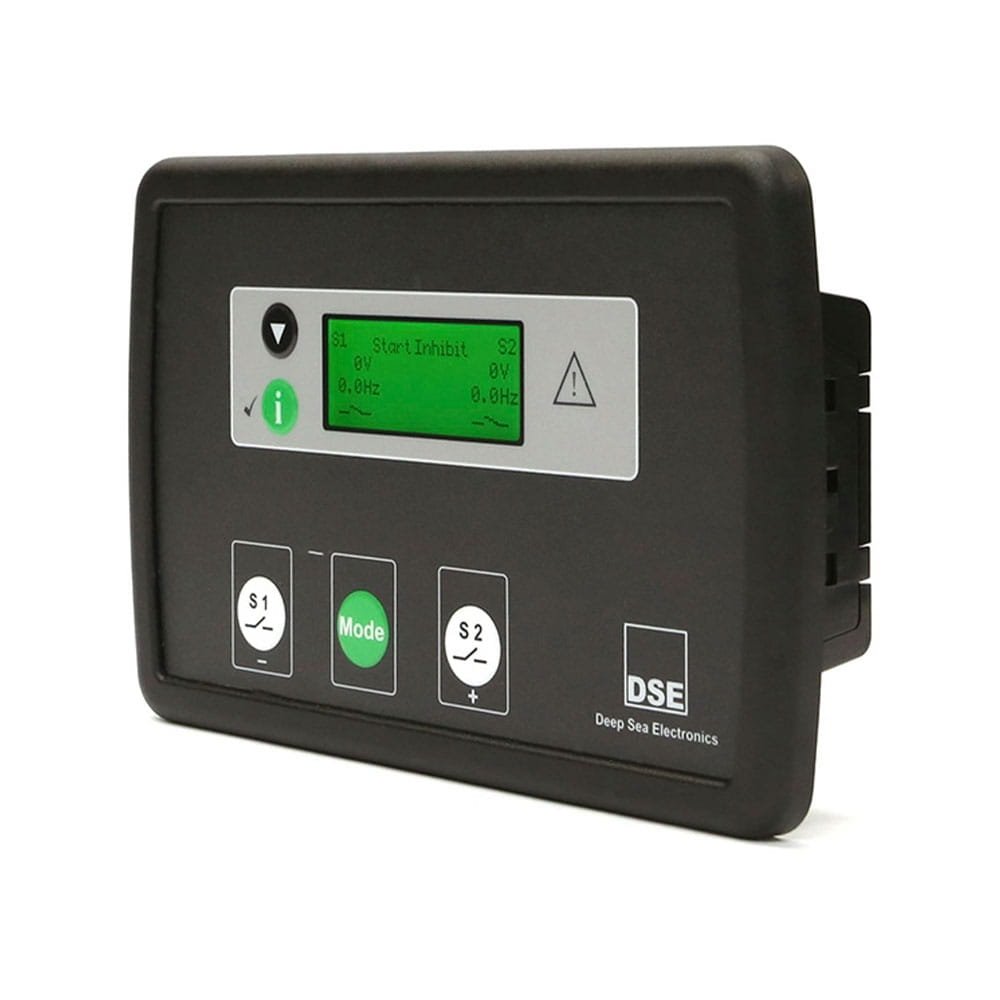

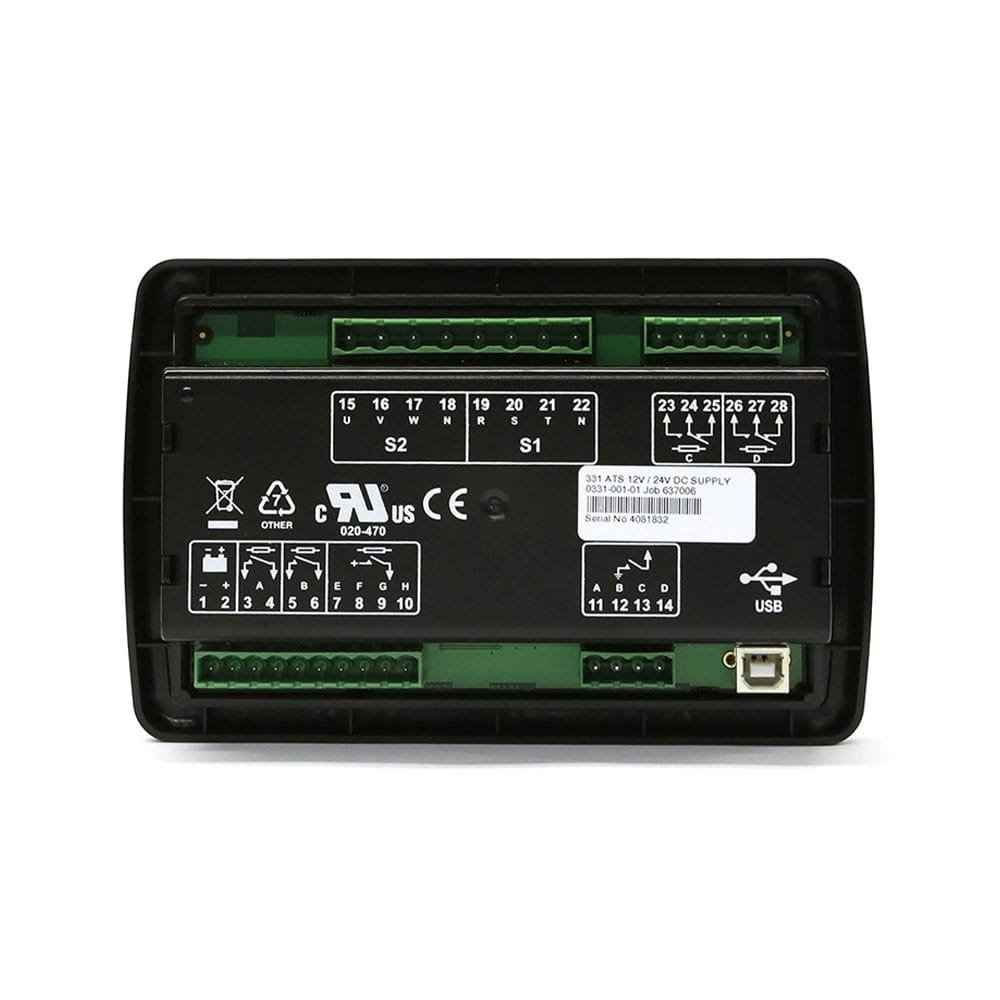

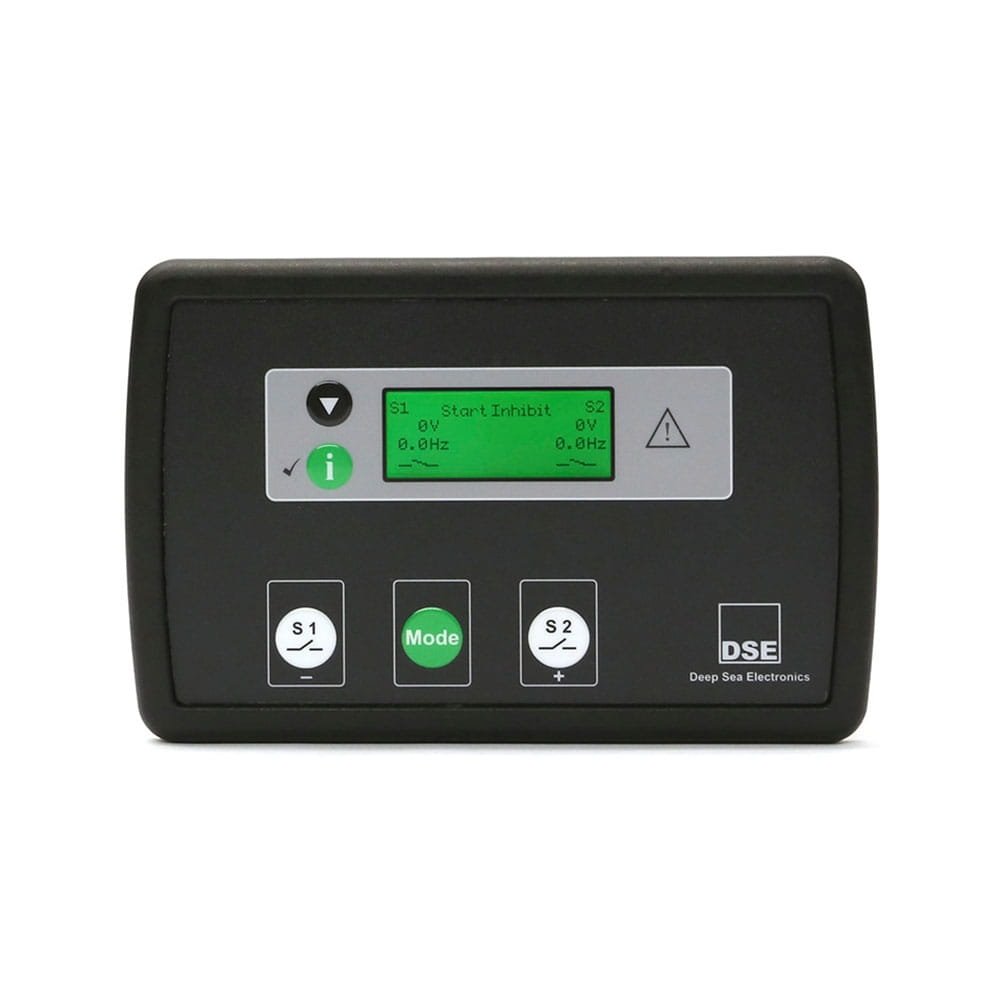

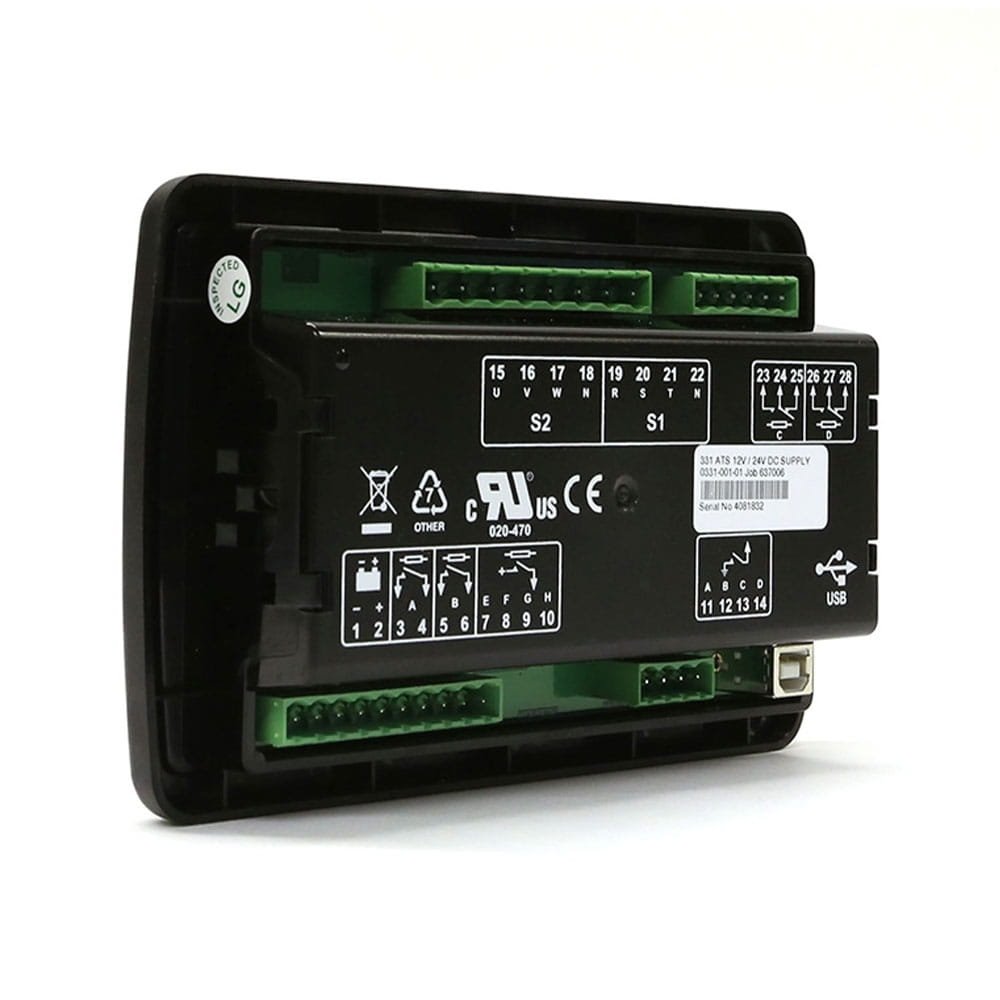

Original DSE331 | Auto Transfer Switch Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- MAXIMUM OPERATING CURRENT: 168 mA at 12 V, 80 mA at 24 V
- MAXIMUM STANDBY CURRENT: 39 mA at 12 V, 20 mA at 24 V
- OUTPUT C & D: 8 A DC at 35 V DC
- VOLTAGE RANGE: 15 V to 333 V AC (L-N)
- FREQUENCY RANGE: 3.5 Hz to 75 Hz
- Automatic switch over between supplies.
- Manual restore to S1.

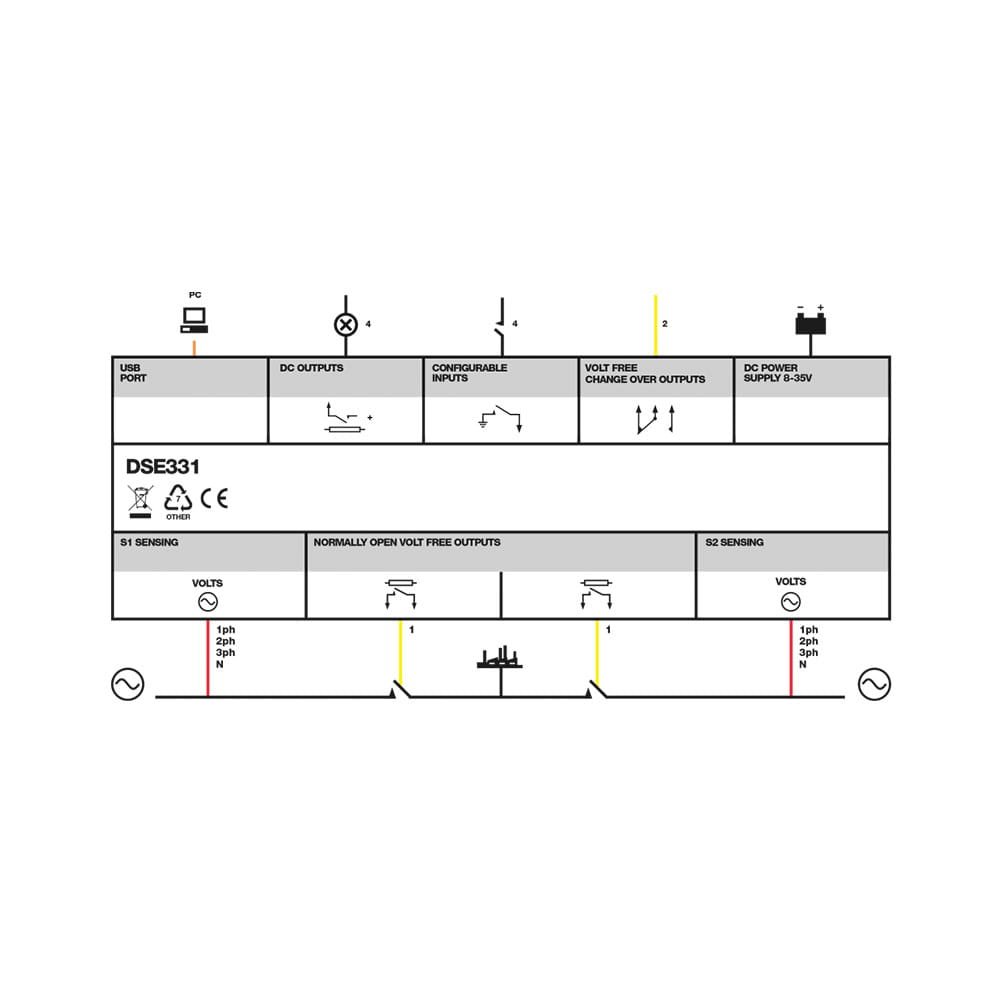

- Configurable inputs/outputs (4/8). 4 configurable volt-free outputs & 4 configurable DC outputs.
- Rotary ATS configuration.
- Source 1/source 2 control.
- 3-phase display.
- DSE Configuration Suite PC Software.
- Compatible with DSE160 power supply.
Call for Quote for international purchases!
$432.99
SKU: DSE331-01
Categories: Auto Transfer Switch
The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
OVERALL SIZE
180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
PRODUCT VARIANTS
0331-01 – 331 Auto Transfer Switch Control Module – 12/24 Volt DC Supply (020-313 gasket not included)
