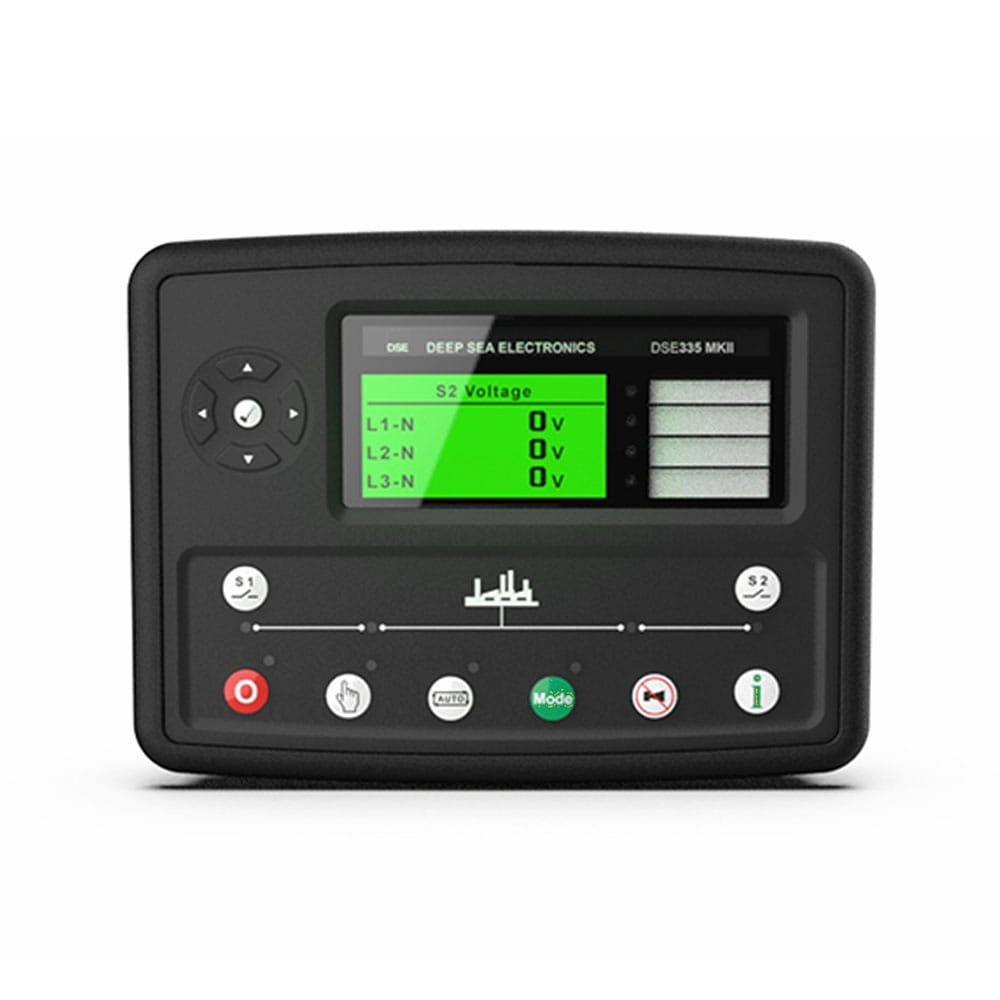

Original DSE335 | Auto Transfer Switch Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- VOLTAGE RANGE: 15 V AC to 415 V AC (L-N)
- FREQUENCY RANGE: 3.5 Hz to 75 Hz
- MAXIMUM OPERATING CURRENT: 480 mA at 12 V, 360 mA at 24 V
- MAXIMUM STANDBY CURRENT: 126 mA at 12 V, 96 mA at 24 V
- Configurable timers and alarms
- Multiple date and time scheduler
- Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
- Load switching (load shedding outputs)
- USB connectivity
- Backed up real time clock
- Fully configurable via DSE
Call for Quote for international purchases!
$836.21
The DSE335 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7” x 6.3”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.9kg
PRODUCT VARIANTS
0335-01 - 335 Auto Transfer Switch Control Module - 12/24 Volt DC Supply (includes gasket)
0335-32 - 335 Auto Transfer Switch Control Module - 12/24 Volt DC Supply
