DSE4520 MKII | Auto Mains Failure Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
VOLTAGE RANGE: 15 V to 415 V AC (Ph to N) / 26 V to 719 V AC (Ph to Ph) - FREQUENCY RANGE: 3.5 Hz to 75 Hz
- CAN & alternator speed sensing.
- Largest back-lit display in its class
- Heated display option.
- Provides full monitoring flexibility.
- Provides clear and easy to read information pages.
- Ensures the display continues to operate in extreme cold weather conditions.
- 600 V ph-ph nominal system compatibility.
- Provides global flexibility.
- Generator & load power monitoring (kW, kV A, kV Ar, pf).
- Accumulated power monitoring (kW h, kVA h, kVAr h).
- Provides clear accurate power measurement information.
- Provides a true indication of the amount of energy the generator has provided.
- Generator overload protection (kW).
- Fuel and start outputs (configurable on CAN).
Call for Quote for international purchases!
$548.99
SKU: DSE4520MKII
Categories: Auto Mains Failure

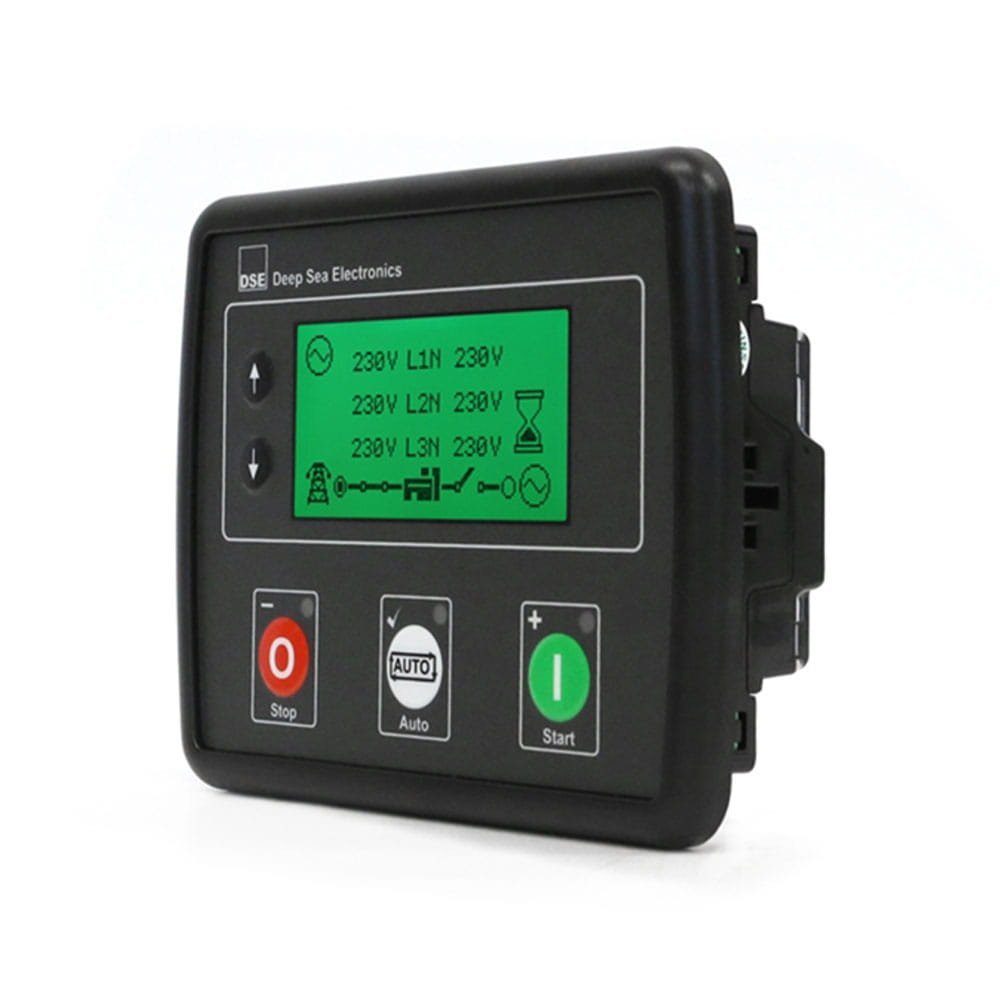

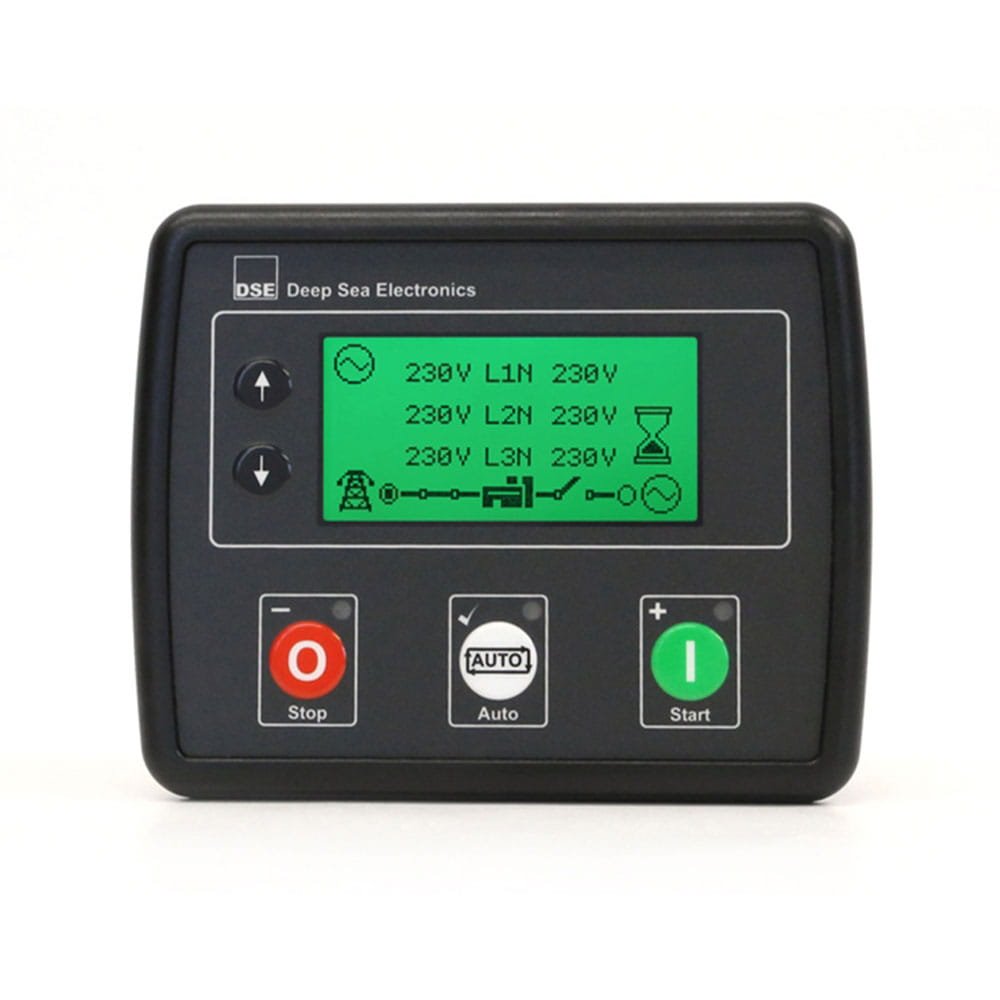

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6" x 3.6")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.26kg
PRODUCT VARIANTS
4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)
4520-35 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc, Htr)
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6" x 3.6")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.26kg
PRODUCT VARIANTS
4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)
4520-35 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc, Htr)
