DSE7320 MKII | Auto Mains Failure Control Module
- DC Supply
- Continuous Voltage Rating: 8 V to 35 V continuous
- Maximum Operating Current:Â 340 mA at 12 V, 160 mA at 24 V
- Maximum Standby Current: 160 mA at 12 V, 80 mA at 24 V
- Charge Fail / Excitation Range: 0 V to 35 V
- Generator & Mains (Utility)
- Voltage Range: 15 V to 415 V AC (Phase to Neutral) / 25 V to 720 V AC (Phase to Phase)
- Frequency Range: 3.5 Hz to 75 Hz
- Magnetic Pickup
- Voltage Range: ±0.5 V to 70 V
- Frequency Input Range: 5 Hz to 10 kHz
Call for Quote for international purchases!
$689.99
The DSE7320 MKII is a powerful, next-generation Auto Mains (Utility) Failure genset control module. It delivers advanced features in the familiar, user-friendly DSE format. As a result, it suits a wide range of single-generator diesel or gas applications.
In addition, the module uses a dual-core processor with extended memory. This design delivers faster processing, quicker response times, and increased functionality. It also includes an integrated data logging facility for improved system monitoring.

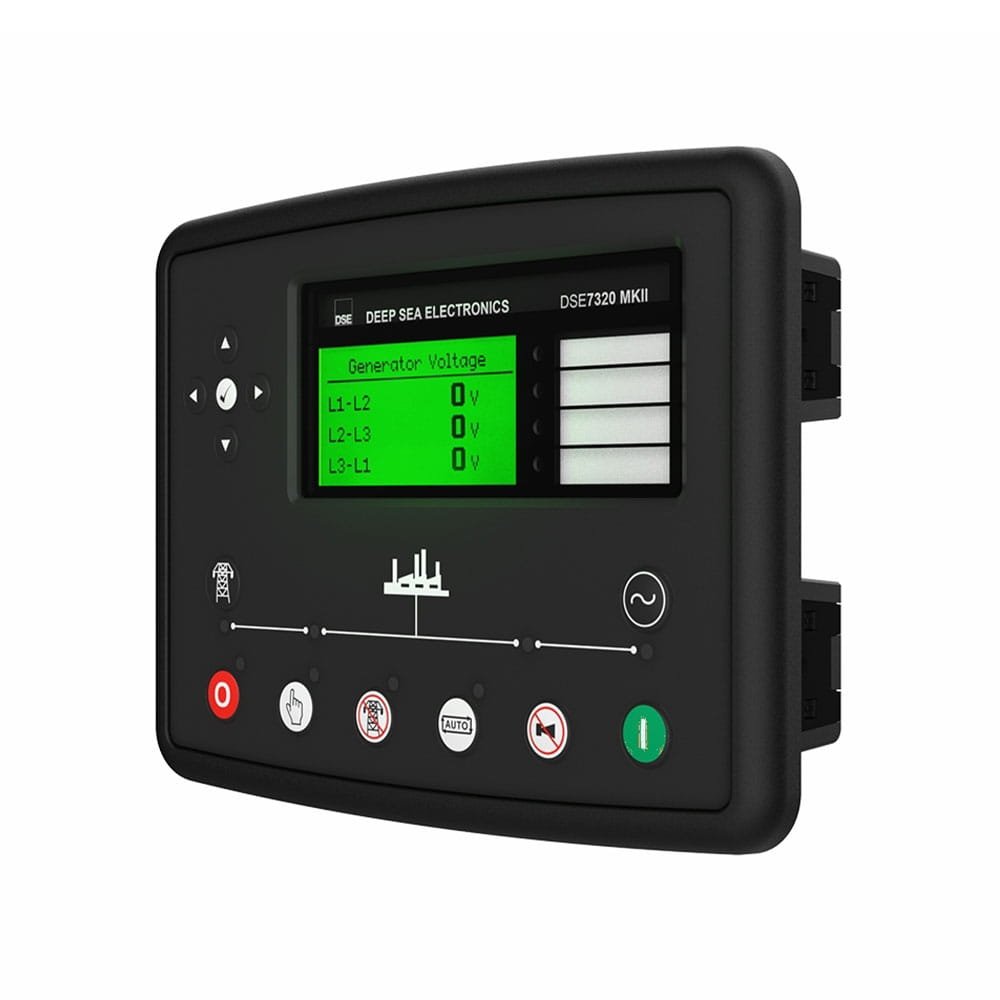

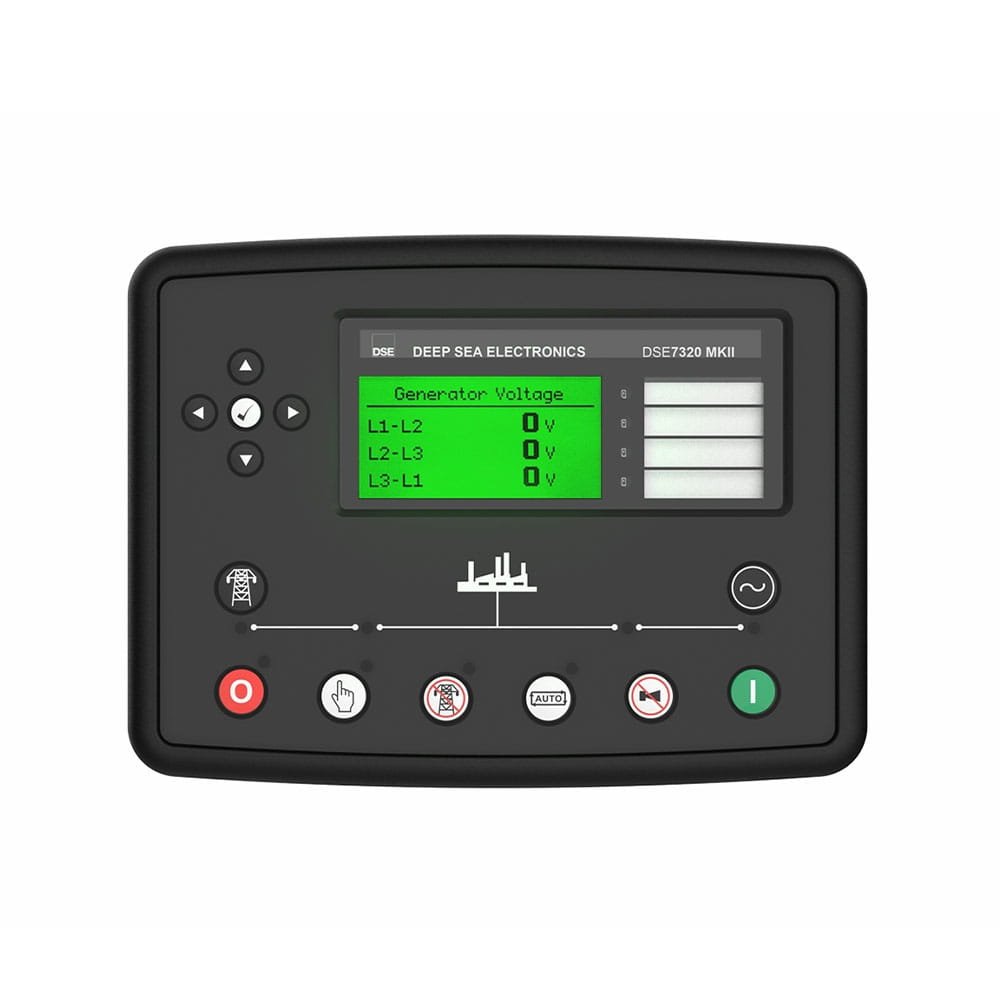

Moreover, the DSE7320 MKII continuously monitors critical engine parameters. It clearly displays warnings, shutdowns, and engine status information on a back-lit LCD screen and LED indicators. Furthermore, users can access this information remotely via PC connection or SMS alerts when using an external communication device.
- Advanced PLC functionality including multi-purpose PIDs
- Flexible inputs and outputs
- Multiple language support
- Enhanced 4-line text display
- 3 phase generator and mains (utility) sensing with protection
- Latest ECU / ECM support for a wide range of engine manufacturers
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7320-03 - 7320 MKII Auto Mains (Utility) Failure Control Module
