DSEE400 | Engine Only Control Module
- CONTINUOUS VOLTAGE RATING: 5 V to 32 V DC continuous
- CRANKING DROPUTS: Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
- MAXIMUM OPERATING CURRENT: 326 mA at 12 V, 164 mA at 24 V
- MAXIMUM STANDBY CURRENT: 119 mA at 12 V, 60 mA at 24 V
- MAXIMUM OFF MODE CURRENT: 76 mA at 12 V, 38 mA at 24 V
- CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
- Voltage Input Range: 0.5 VPeak to 70 VPeak
- Frequency Input Range:Â 5 Hz to 10 kHz
-
IP67 rating with integrated gasket offers increase resistance to water ingress
-
Integrated RS485 ports providing Modbus RTU support
-

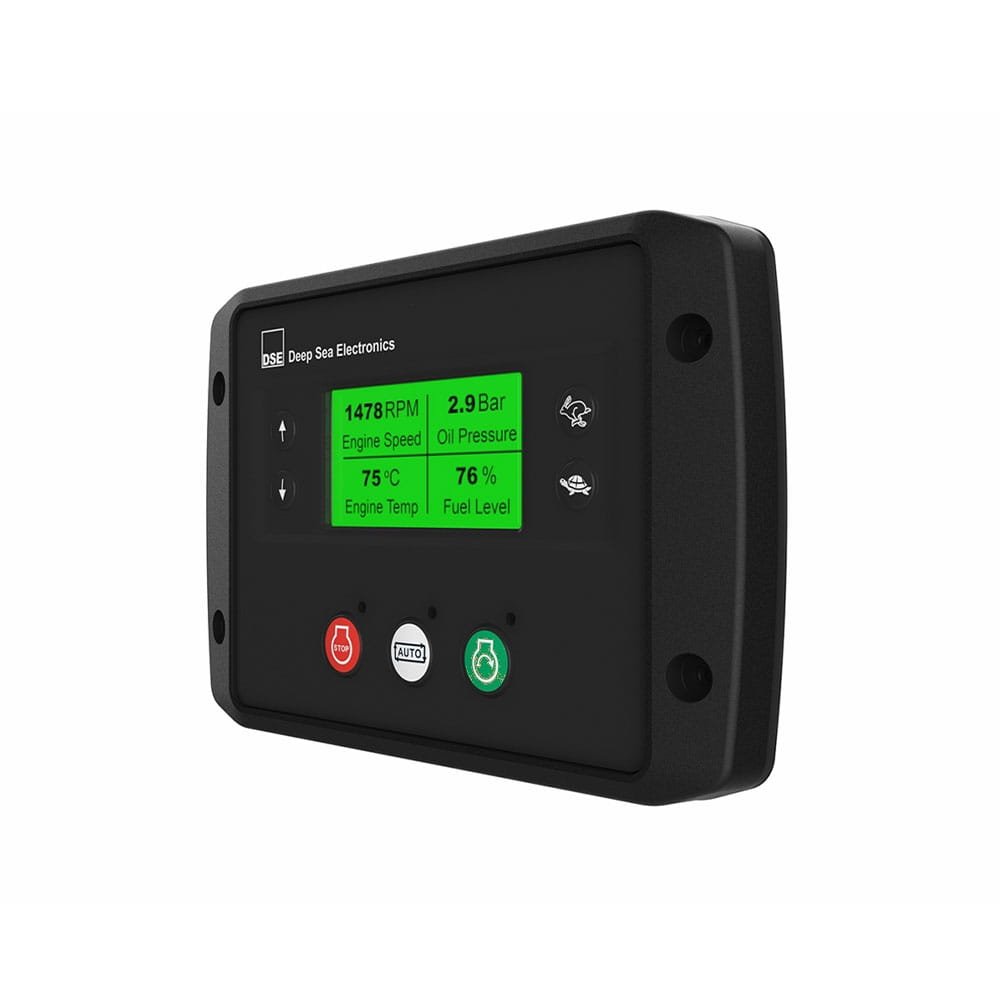

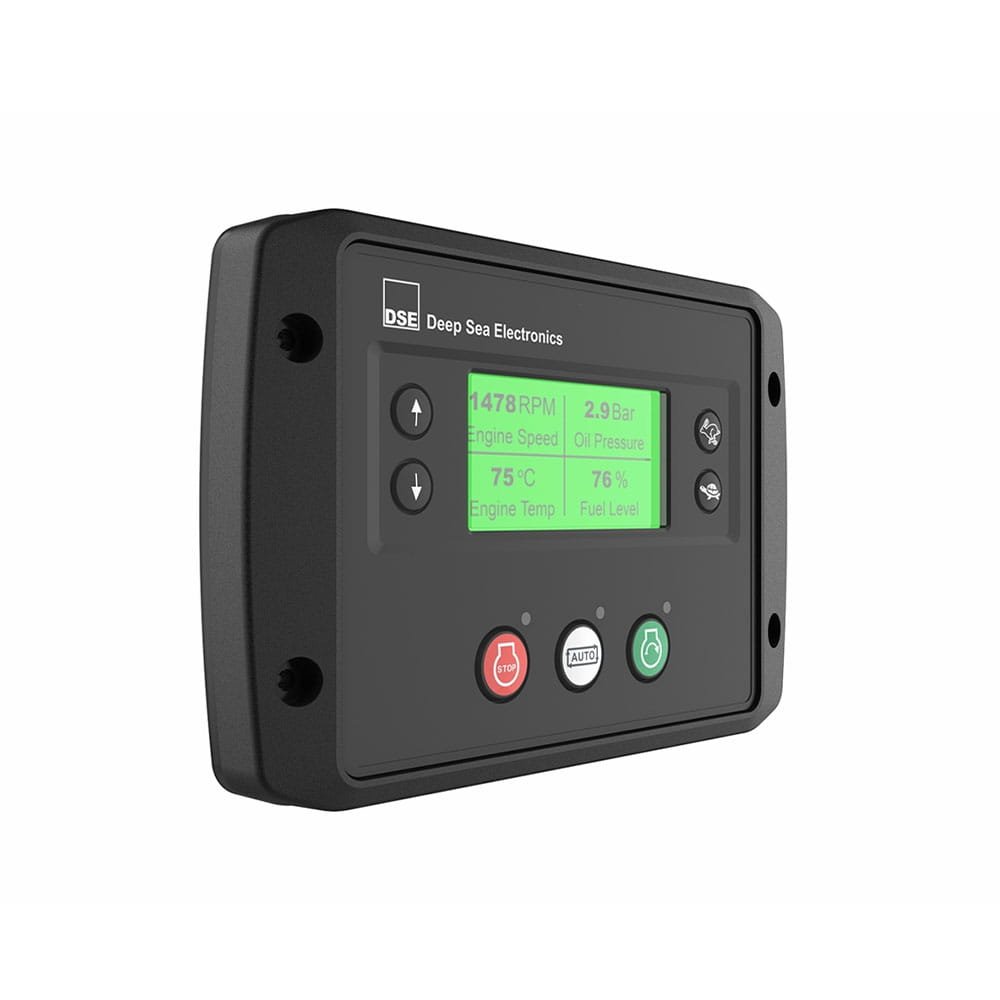

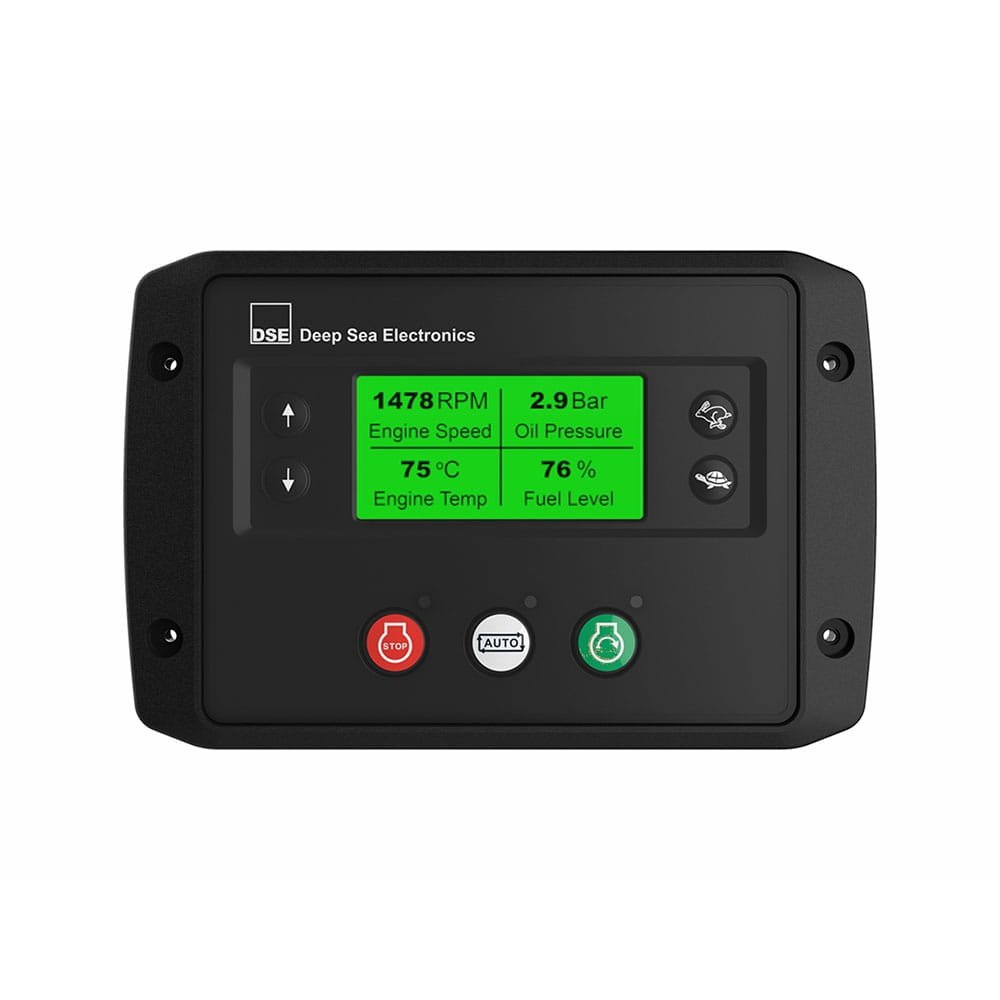

Enhanced 4-line text display
-
Customisable status and multi-instrumentation display screens
-
Advanced PLC functionality including multi-purpose PIDs
-
Multiple language support
Call for Quote for international purchases!
Price range: $758.99 through $2,179.75
SKU: DSEE400
Categories: Engine & Pump (E-Series)
The DSEE400 is an easy-to-use engine controller designed to provide flexible control with built in monitoring and protection. The DSEE400 is compatible with both electronic and mechanical diesel engines. It is fully configurable for a wide range of applications such as engine driven pumps and compressors.
All of the engine control functions, including the engine start, speed and clutch control can be achieved both automatically & manually. The monitoring and configuration of the system variables allows the DSEE400Â to start and stop the engine and increase and decrease engine speed as the output demand requires.
On board event logging makes it possible to determine preventative maintenance and improved performance criteria for the machine. The DSE Configuration Suite PC Software is used to easily make adjustments to the operating parameters, sequences, timers and alarms. Reducing valuable development and commissioning time.
OVERALL SIZE
189 mm x 125 mm x 54 mm (7.5" x 4.9" x 2.1")
PANEL CUT OUT
148 mm x 112 mm (5.8" x 4.4")
PRODUCT VARIANTS
E400-01 - E400 Engine Controller
E400-02 - E400 Engine Controller (Htr)
RELATED PARTS

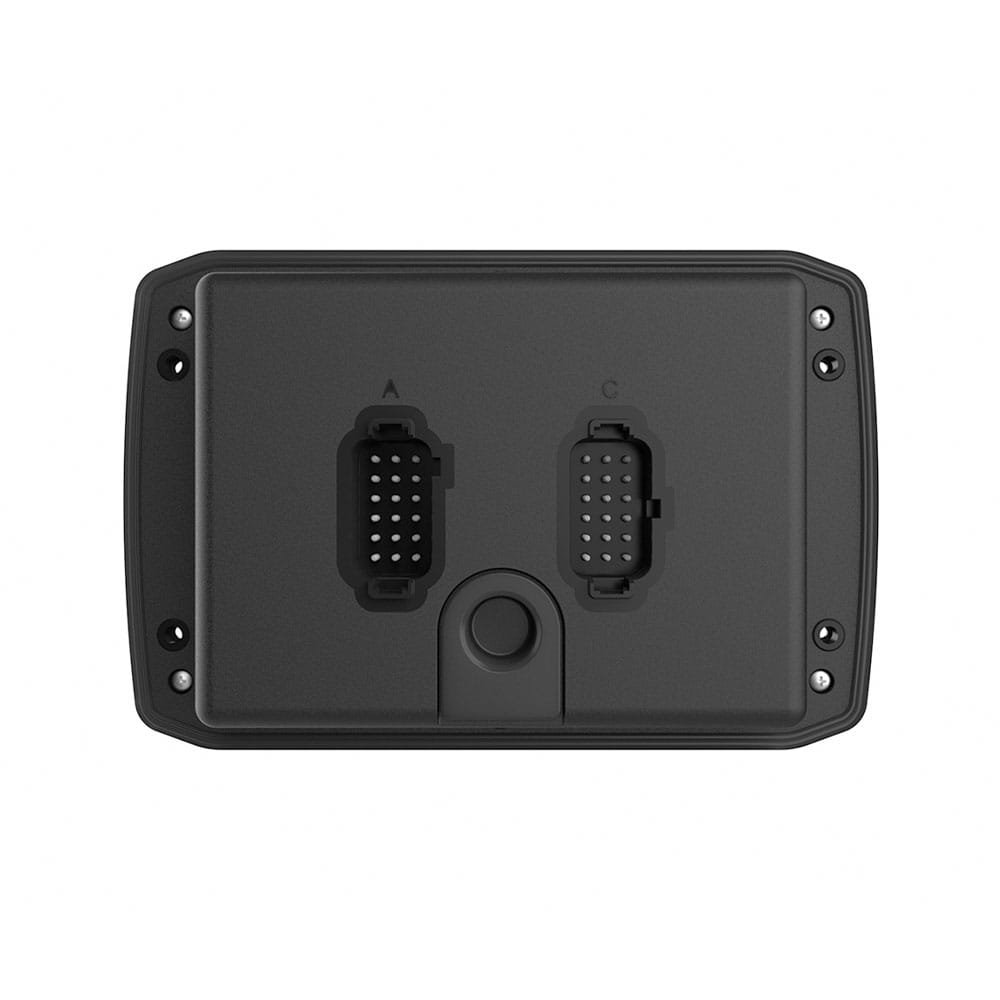

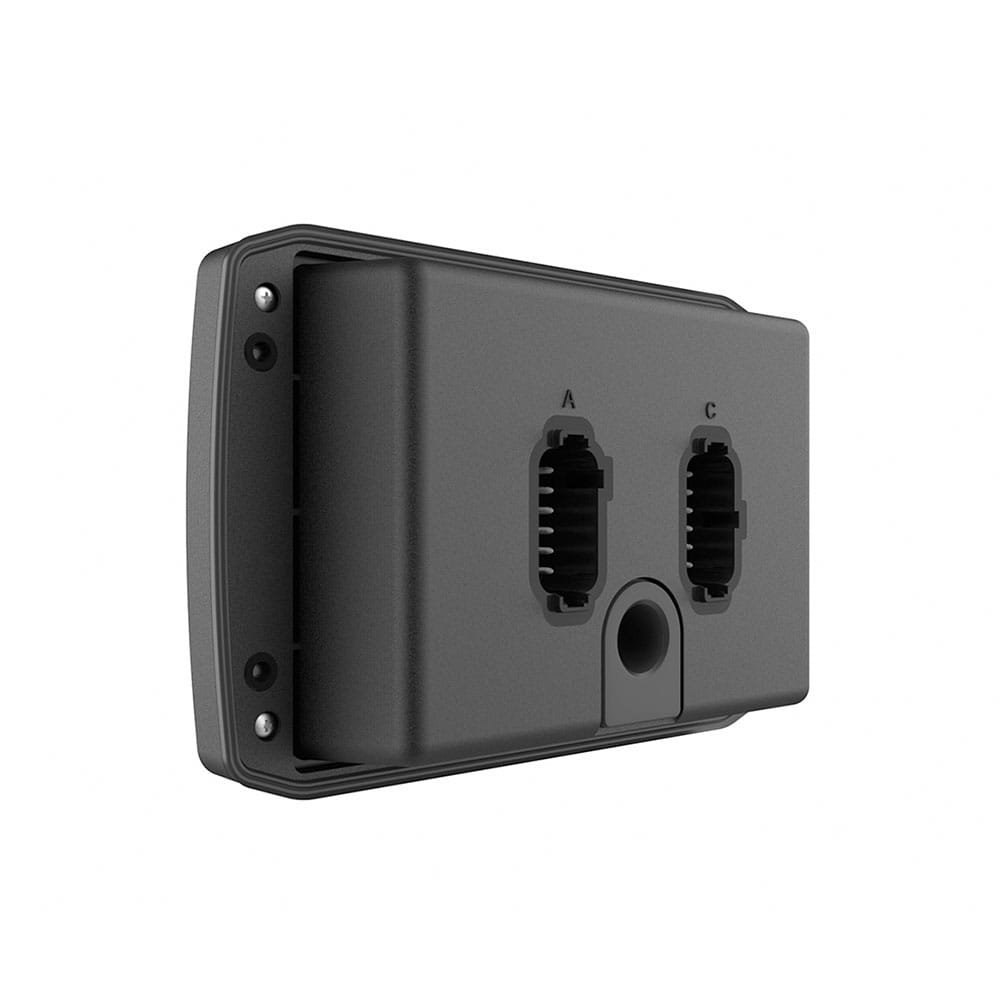

007-850 -Â Deutsch connector A (DT16-18SA-k004), 18 way complete with pins.
007-851 -Â Deutsch connector C (DT16-18SC-K004), 18 way complete with pins.
007-852 -Â Set of 2 harnesses, a & C connectors, pre-wired, 1.2 m cables marked.
