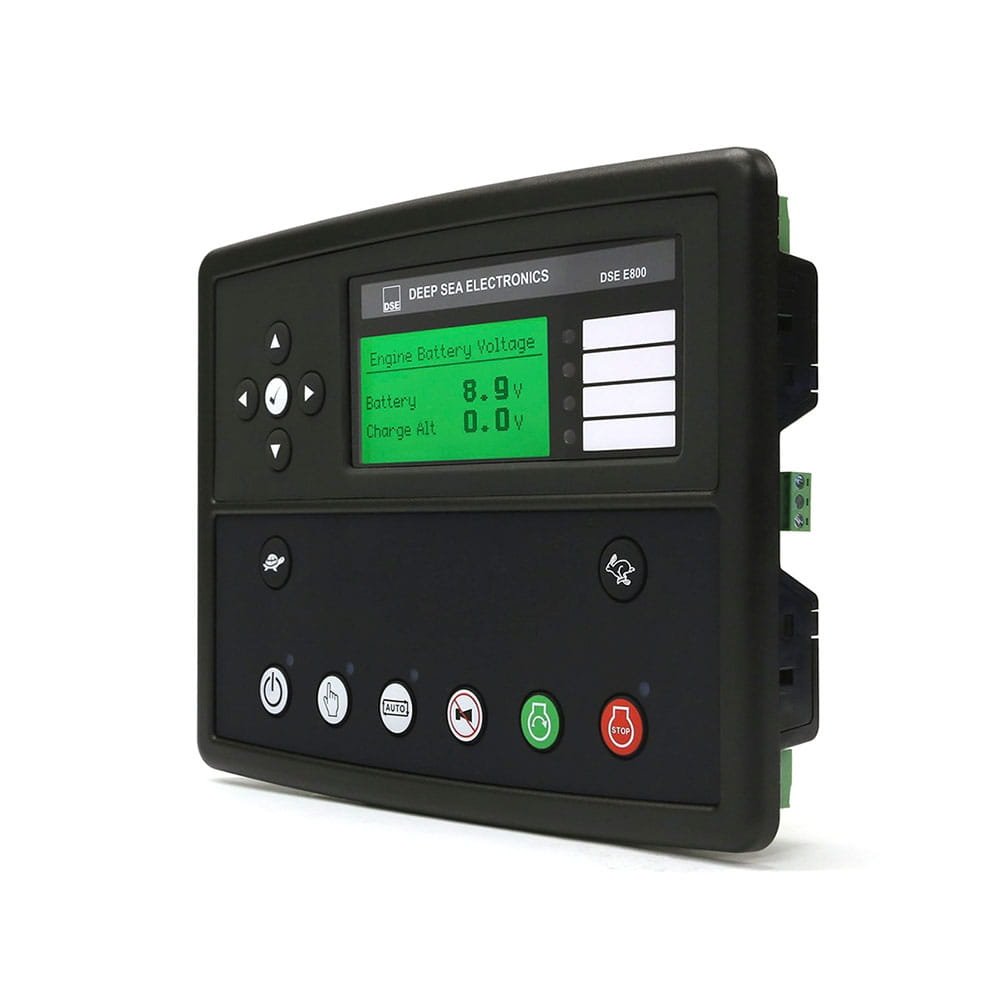

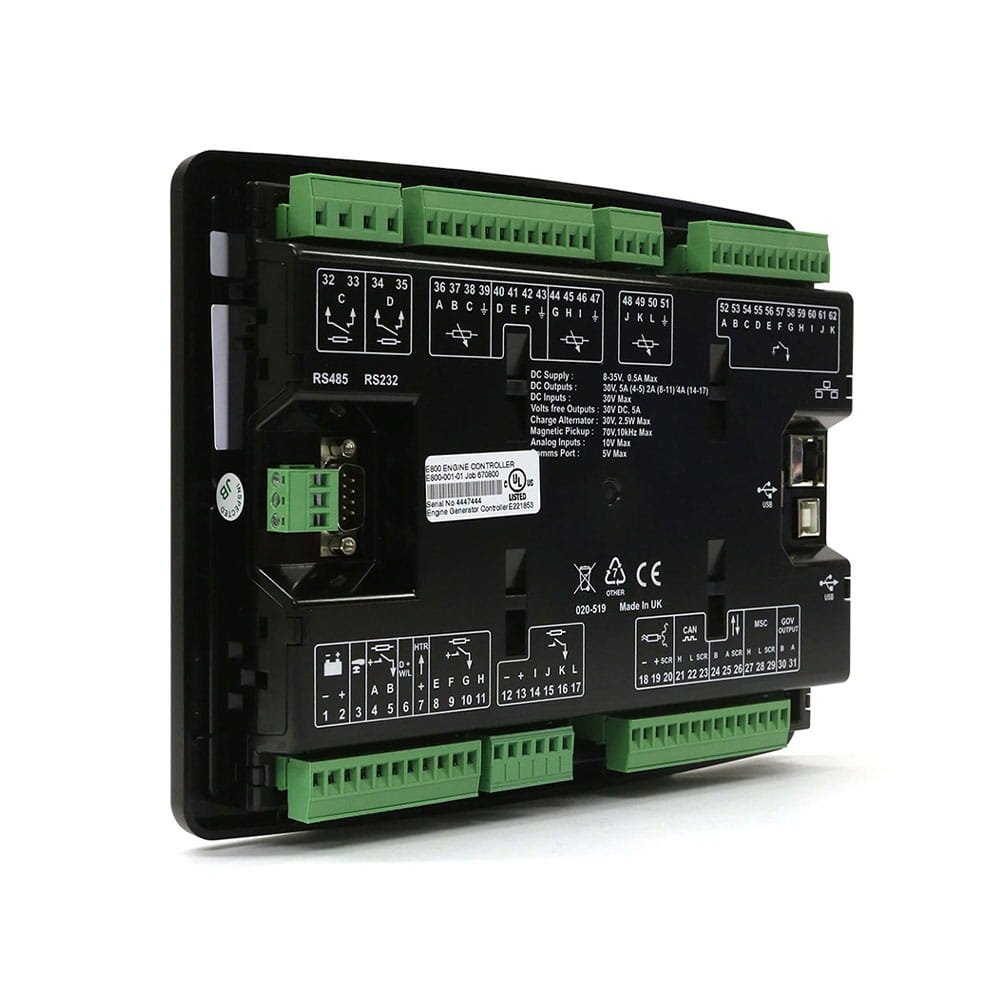

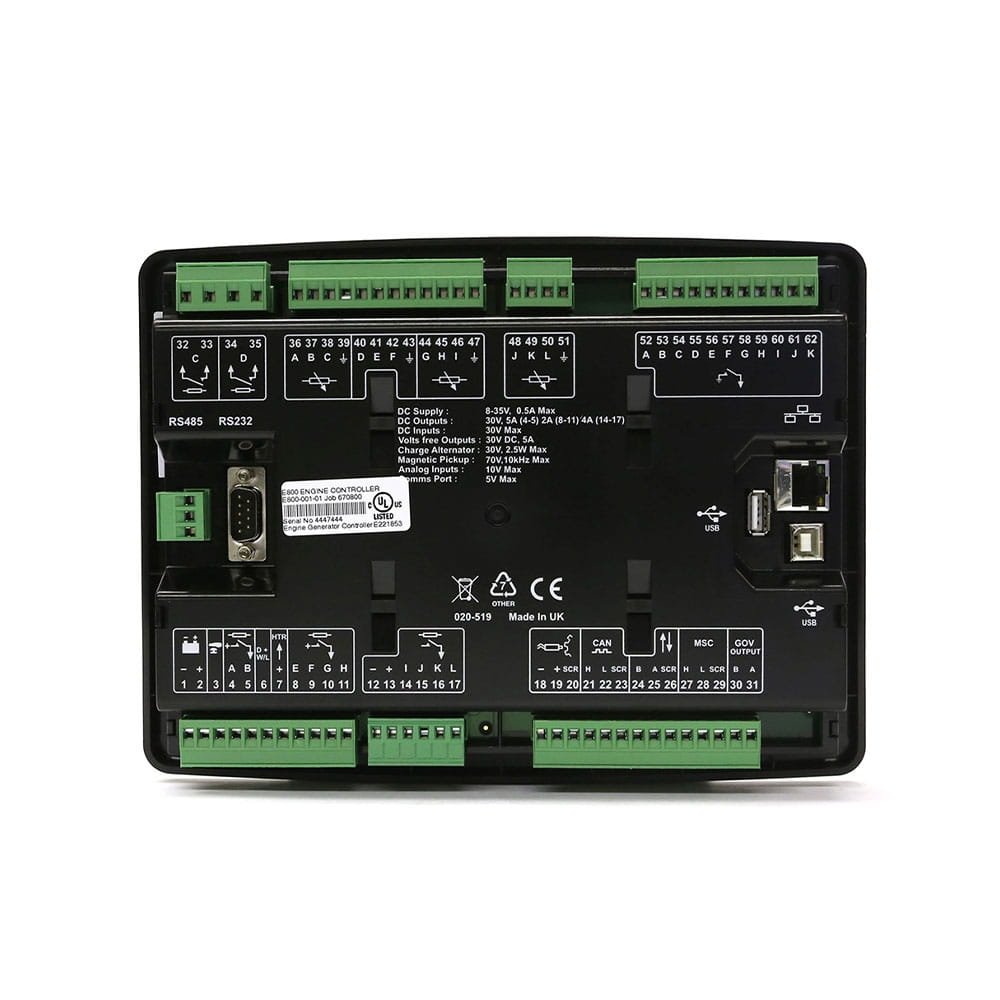

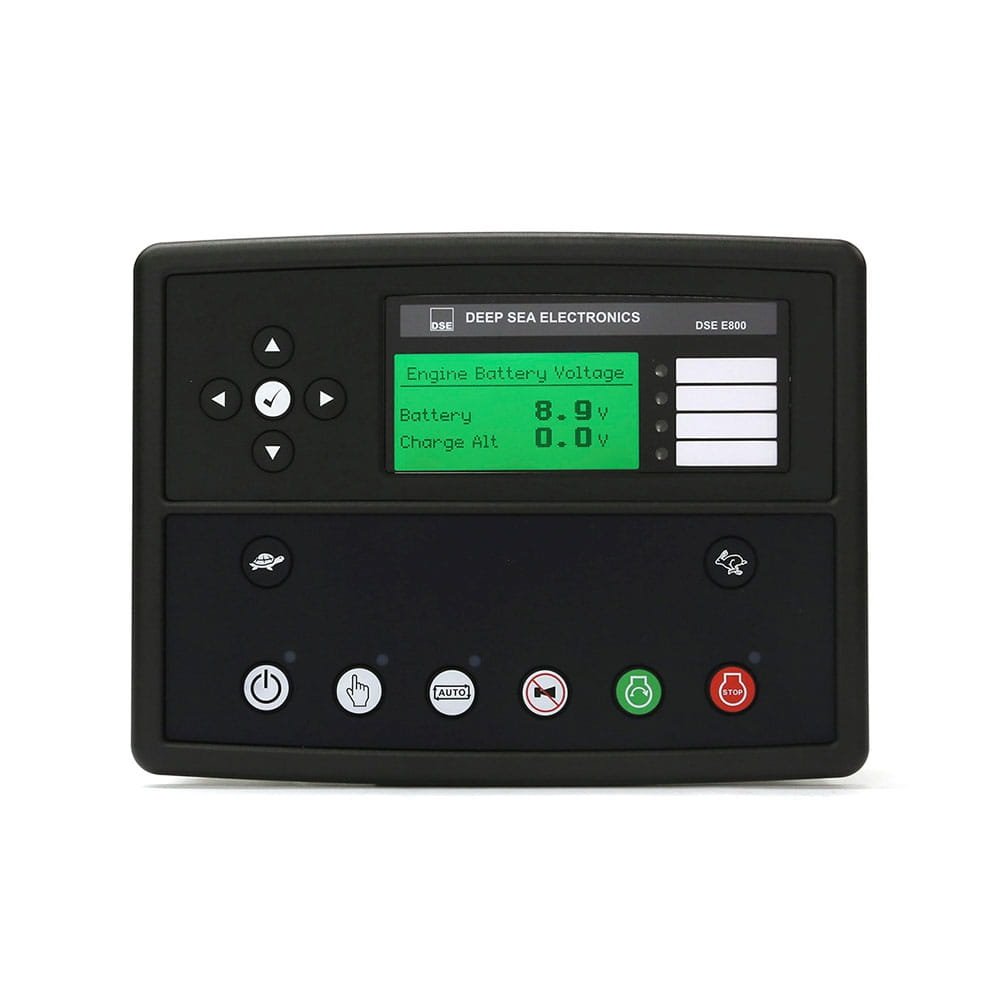

DSEE800 | Engine Only Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V continuous
- MAXIMUM OPERATING CURRENT: 510 mA at 12 V, 238 mA at 24 V
- MAXIMUM STANDBY CURRENT: 226 mA at 12 V, 107 mA at 24 V
- MAXIMUM OFF MODE CURRENT: 180 mA at 12 V, 86 mA at 24 V
- CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
- VOLTAGE RANGE: ±0.5 V to 60 V RMS Fully isolated
- FREQUENCY RANGE: 10,000 Hz (max)
- Multiple language options.
- Power save mode.
- Configurable timers & alarms.
- Engine maintenance alarms (3).
- Engine run time scheduler.
- Charge alternator failure alarm.
- Tier 4 CAN engine support.
Call for Quote for international purchases!
$1,015.99
SKU: E800
Categories: Engine & Pump (E-Series)
The DSEE800 engine control module has been designed to provide flexible control and monitoring for engine driven pumps, compressors, hydraulic power packs and off-highway machinery. The control module can be used with electronic and mechanical diesel engines and offers outstanding flexibility via its integrated PLC editor. This flexibility enables users to match required operating modes unique to their applications.

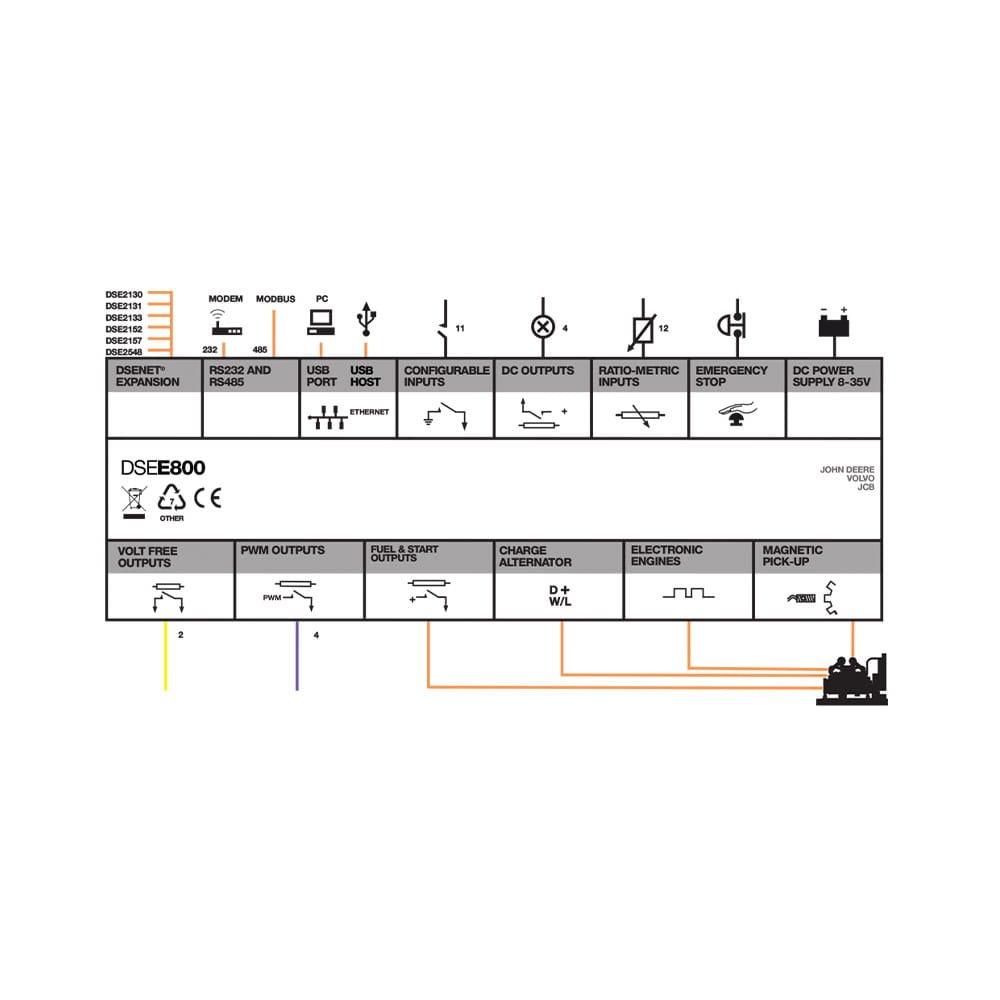

A number of comprehensive communication and system expansion options allows users to extend the input/output capabilities of the system and communicate across complex networks.
OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7 " x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kgPRODUCT VARIANTS
E800-01 - E800 Engine Control Module
