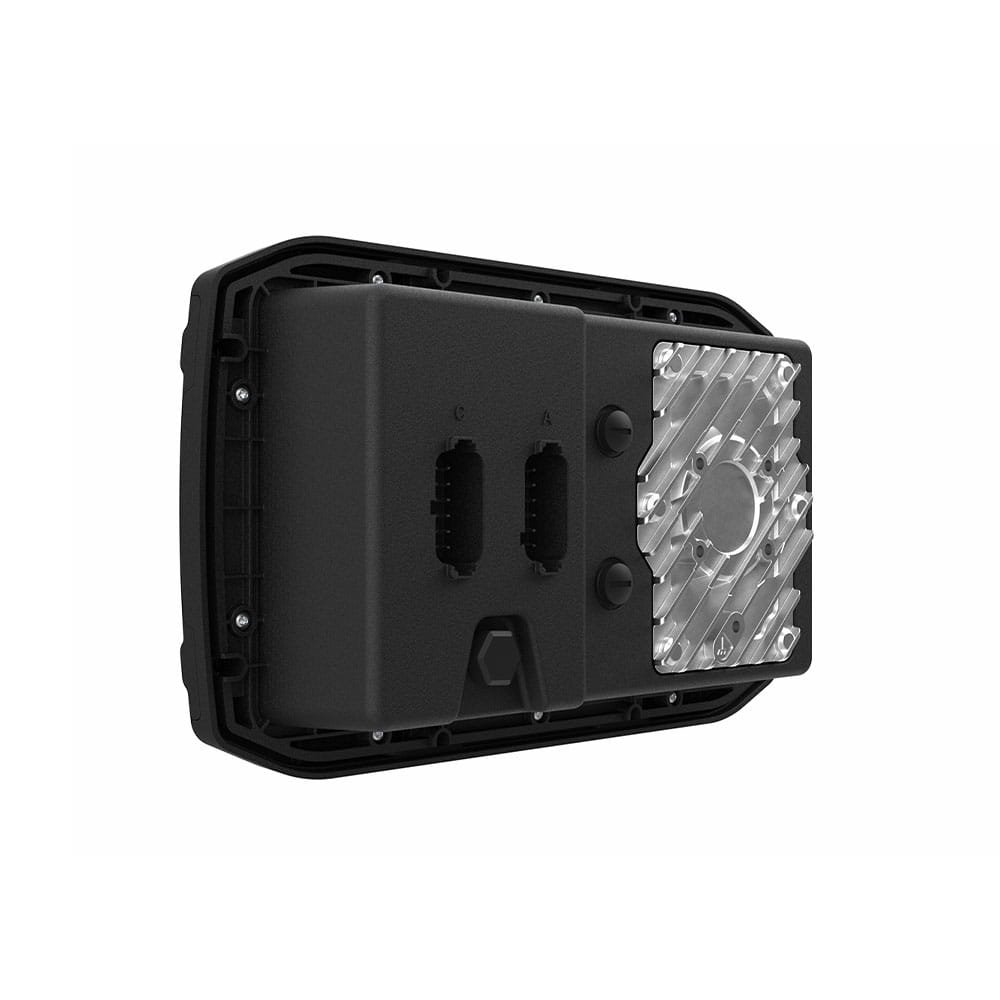

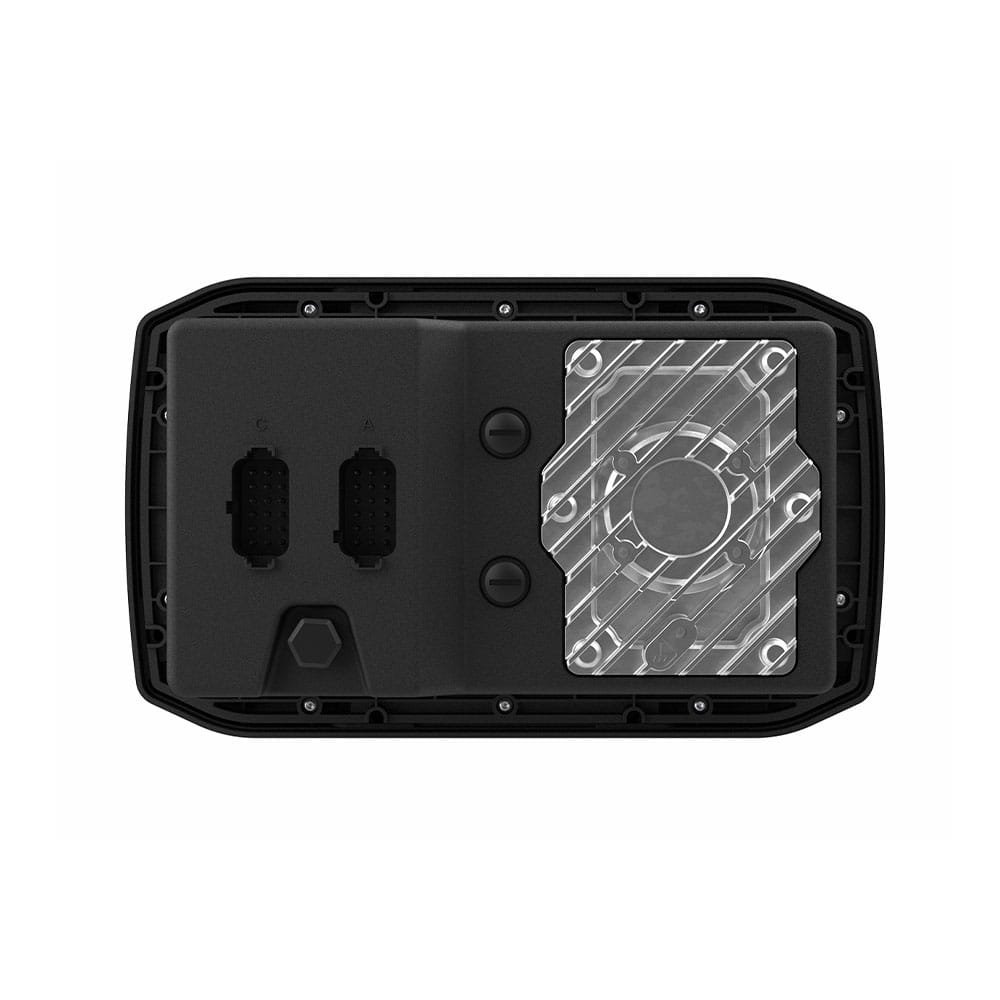

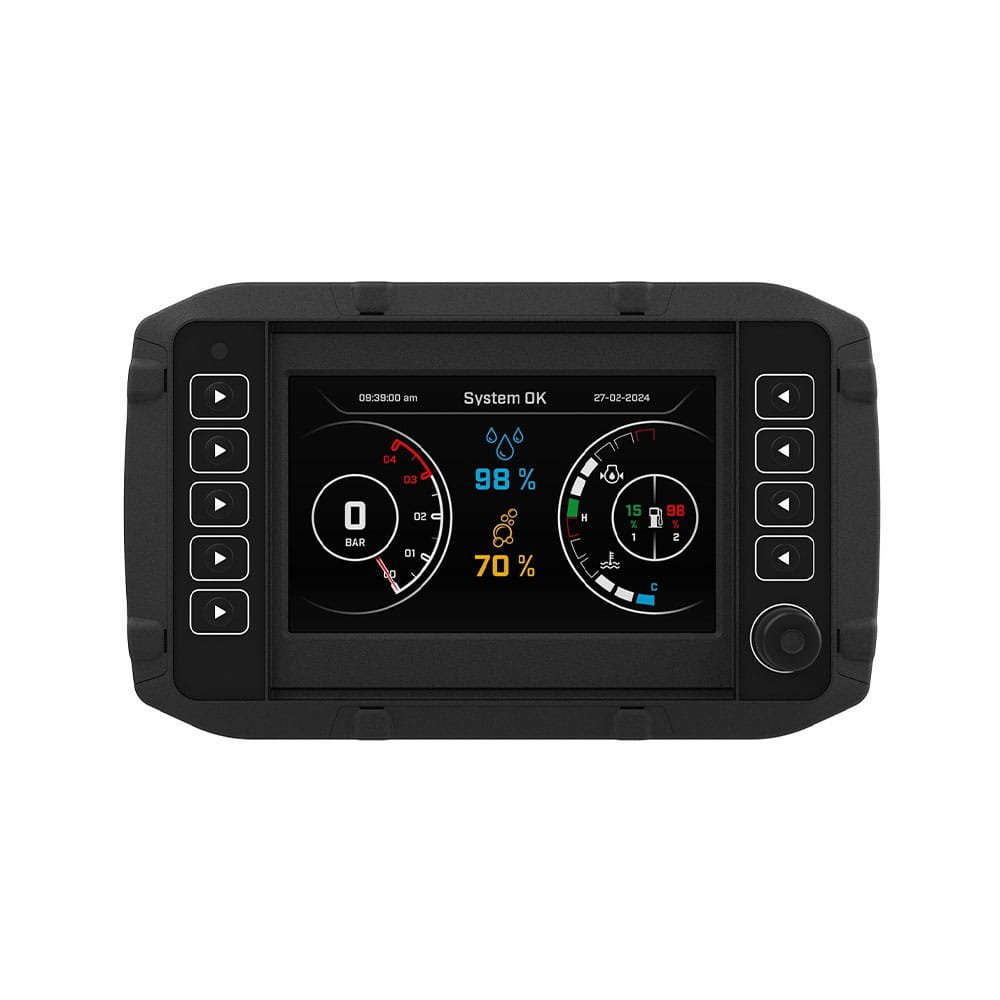

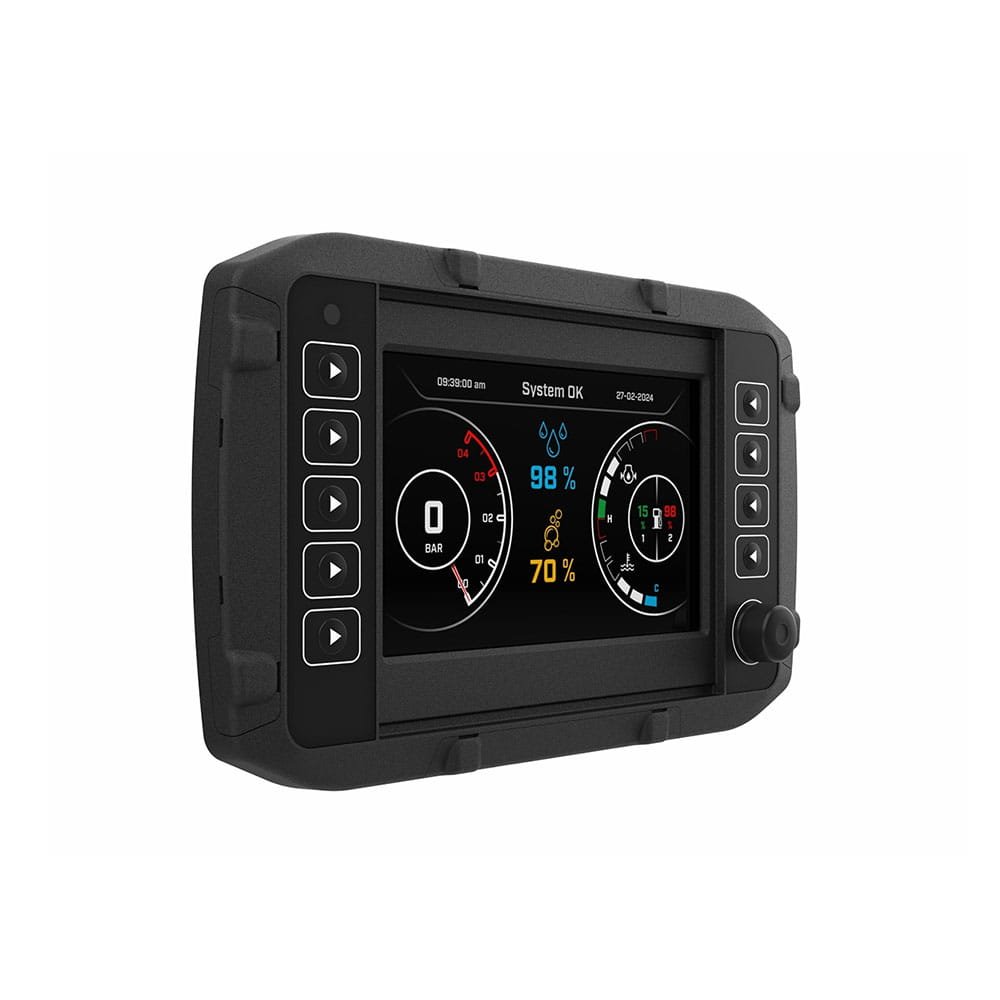

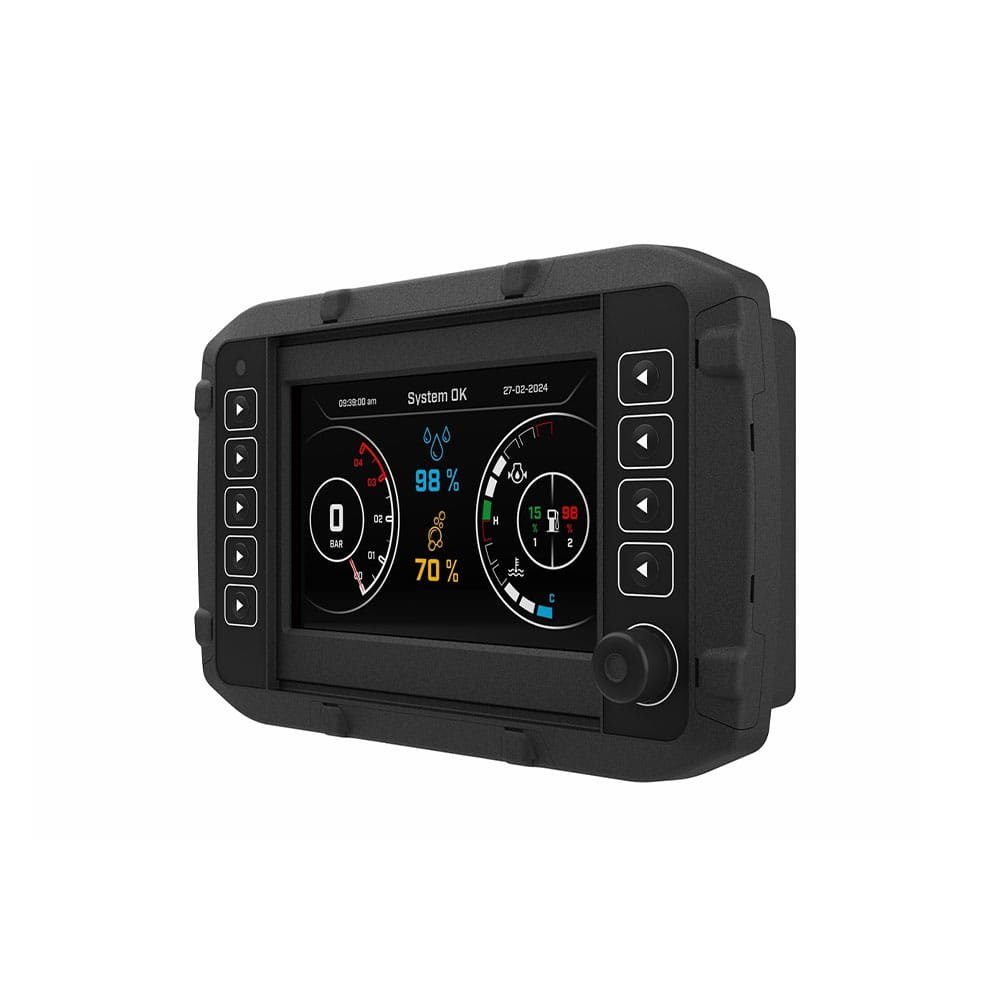

DSEM870 | 7″ Programmable Display
- DC SUPPLY: 8 V DC to 32 V DC Continuous
- MAXIMUM OPERATING CURRENT: < 1000 mA at 12 V and 24 V without external loads / < 1500 mA at 12 V and 24 V with Htr
- TOTAL INPUTS/OUTPUTS: 8 (4 inputs / 4 outputs)
- STORAGE TEMPERATURE RANGE: -40 ˚C to +85 ˚C / -40 ˚F to +185 ˚F
- ETHERNET: 10 Mbit/s / 100 Mbit/s
- USB: USB 2.0 host (480 Mbit/s)
- Display: MEASUREMENT: 800 x 480 resolution 24-bit colour. Optically bonded
-
Robust HMI/programmable display specifically designed for mobile applications.
- Optically bonded 7″ colour screen for harsh environments.
-
Capacitive touchscreen (M870-02 / M870-04 variants)
-
Powerful ARM Cortex A9 processor with 800 MHz clock speed.
-
512 MB of DDR3 SDRAM and 2 GB of NAND mass storage.
-
4 configurable inputs, 4 configurable digital outputs
-
Supports landscape and portrait orientation
-
2 independent CAN interfaces, J1939, CANopen and Raw CAN
-
2 camera inputs.
Call for Quote for international purchases!
$3,811.16
SKU: M870-01
Categories: Vehicle & Off-Highway Machinery (M-Series)
M870-04 Qt (Touchscreen) Variant - Now Available.
Option to Mount in Landscape/Portrait Mode.
The DSEM870 is a 7" programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).
OVERALL SIZE
272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”)
WEIGHT
1.25kg
CUT-OUT
231 mm x 133 mm (9.09" x 5.24")
PRODUCT VARIANTS
M870-01 | CODESYS (Standard) M870 7″ OH Display
M870-A1 | M870 7″ Solar Display (WV)
DSEM870
(pdf, 1388KB)
