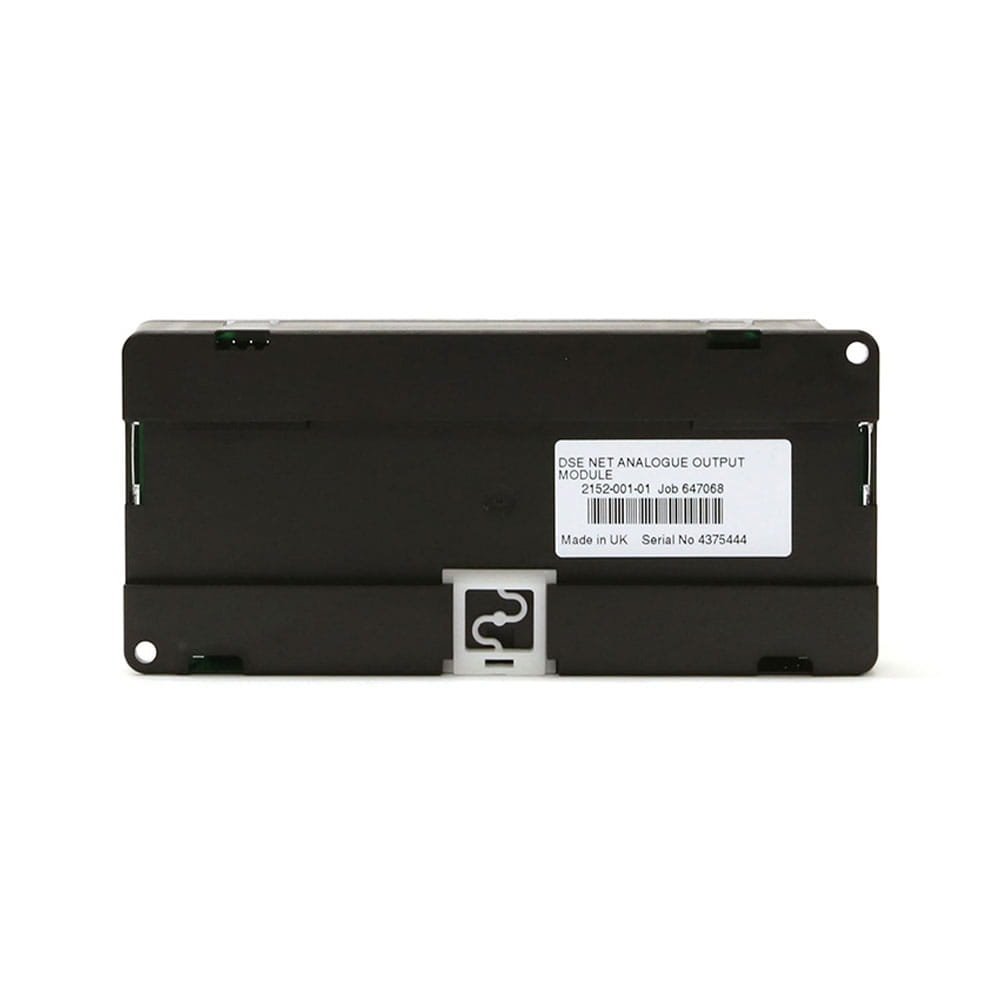

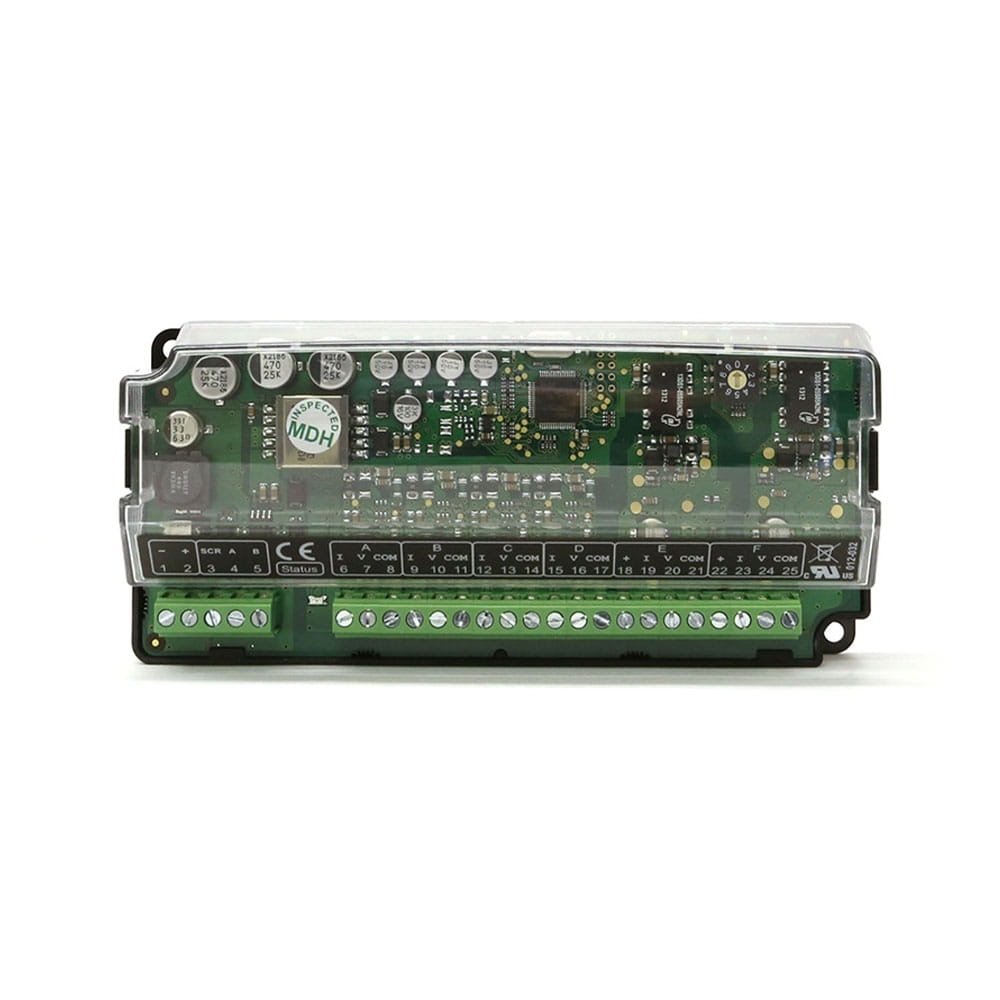

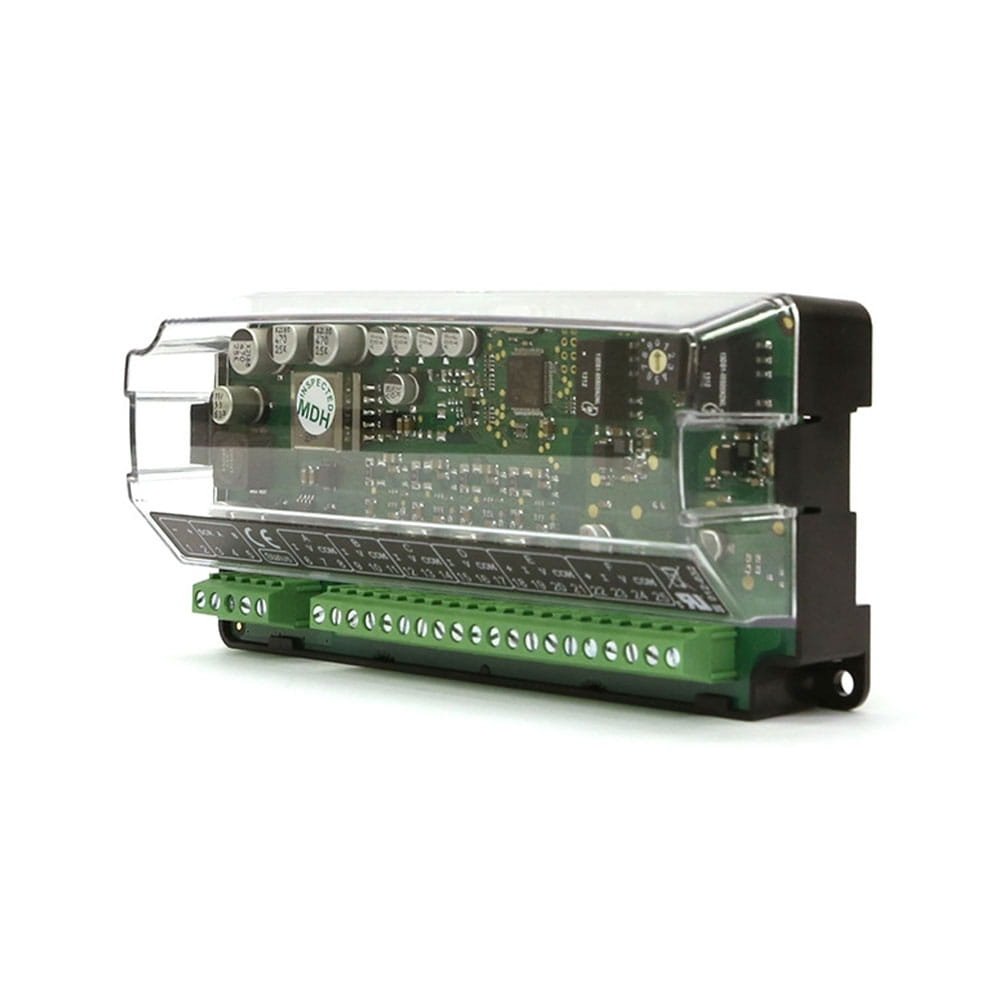

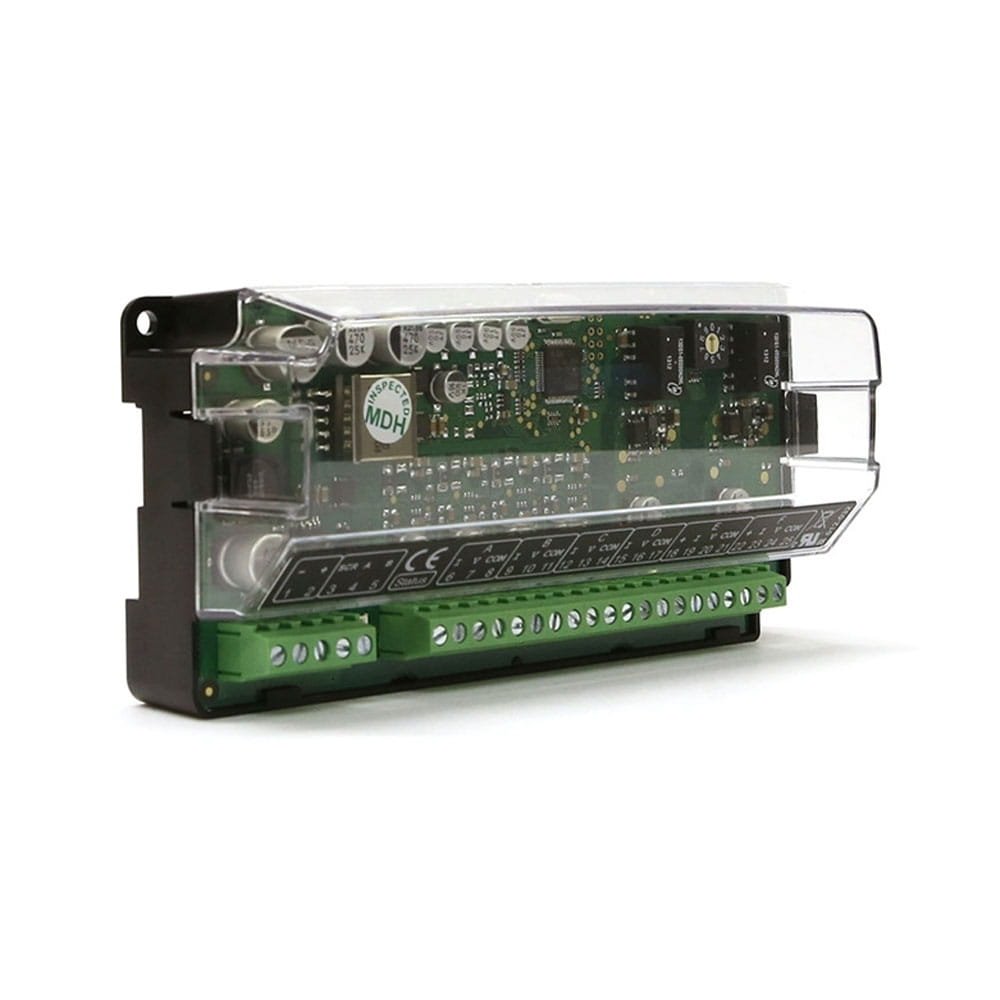

DSE2152 | Analogue Output Expansion Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- MAXIMUM OPERATING CURRENT: 56 mA at 12 V, 20 mA at 24 V
- OUTPUT A, B, C & D: Non-Isolated Configurable As: 4 – 20 mA DC or 0 V to 10 V DC
- OUTPUT E & F: Optional Isolation Configurable As: 4 – 20 mA DC or 0 V to 10 V DC
-
DIN rail & chassis mount.
-
Power on/link lost LED.
-
1.2km (0.75 Mile) working range.
-
Connect maximum of 4 x DSE2152ās to a single host controller.
-
Max of 24 0-10 V or 4-20 mA outputs.
Call for Quote for international purchases!
$337.14
SKU: 2152-01
Categories: Expansion Modules
The DSE2152 is an analogue output expansion module designed to give Original Equipment Manufacturers (OEMs) greater output flexibility when trying to meet complex industry generator control specifications.
The module includes six outputs. These can be configured as 0-10 V or 4-20mA. All configurations are controlled within the host control module.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5ā x 3.0ā x 1.9ā)
WEIGHT
0.24kg
PRODUCT VARIANTS
2152-01 - 2152 Analogue Output Expansion Module
DSE2152
(pdf, 654KB)
