DSE8610 MKII | Synchronising & Load Sharing Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V continuous
- CRANKING DROPOUTS: Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. Backlight will not be maintained during cranking.
- MAXIMUM OPERATING CURRENT: 530 mA at 12 V, 280 mA at 24 V
- MAXIMUM STANDBY CURRENT: 320 mA at 12 V, 160 mA at 24 V
- CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
- VOLTAGE RANGE: 15 V to 415 V Phase to Neutral / 25 V to 720 V Phase to Phase
- FREQUENCY RANGE: 3.5 Hz to 75 Hz
- Slip sync and dead bus synchronising control
- Multi-set communication (MSC) link with optional redundancy
- Advanced PLC functionality including multi-purpose PIDs
- Flexible inputs and outputs
- Integrated RS232 and RS485 ports providing Modbus RTU support
- Integrated Ethernet port providing Modbus TCP and SNMP v2C support
Call for Quote for international purchases!
$2,695.99

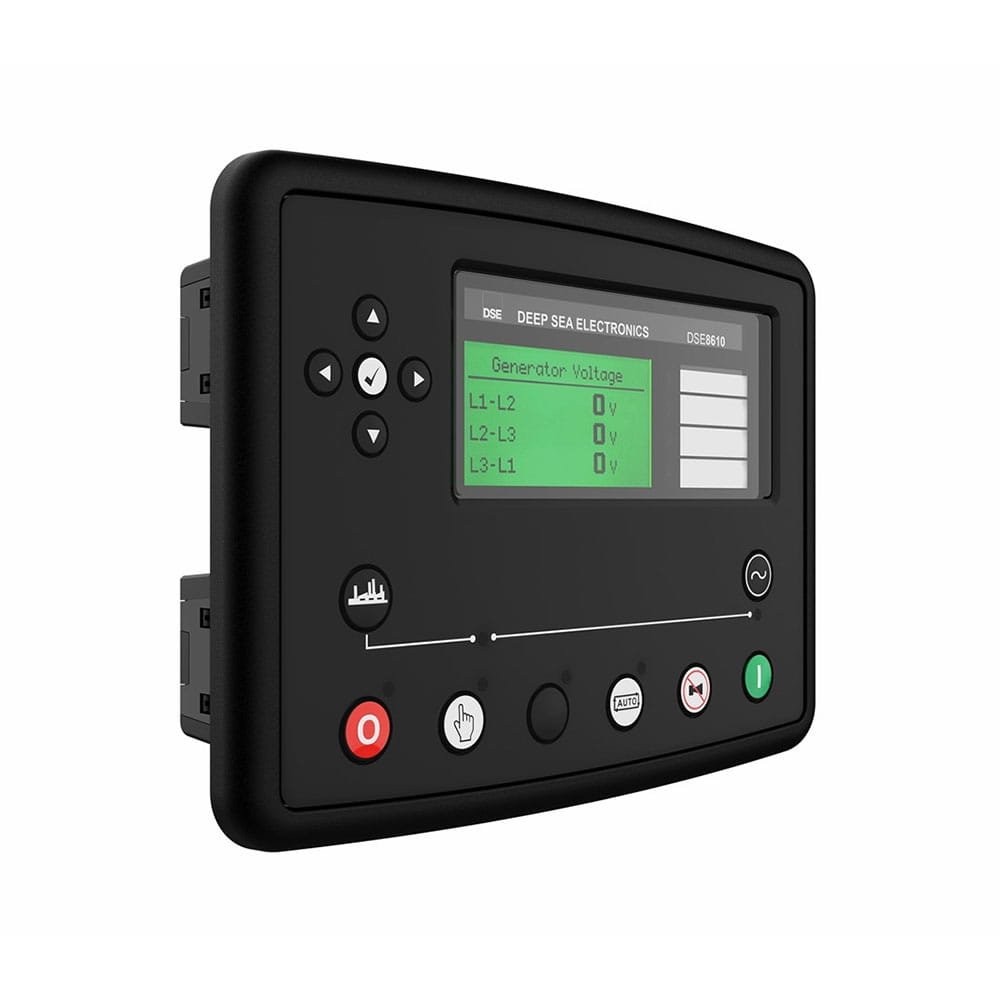

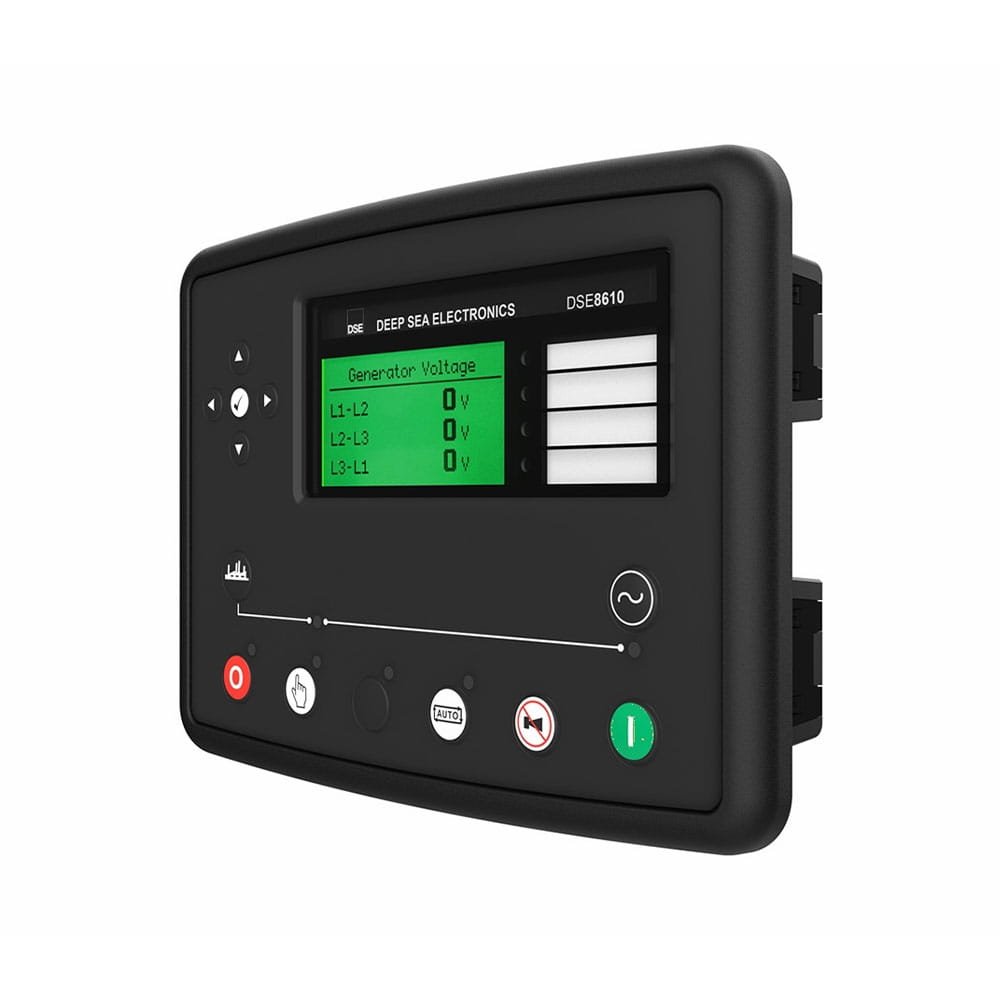

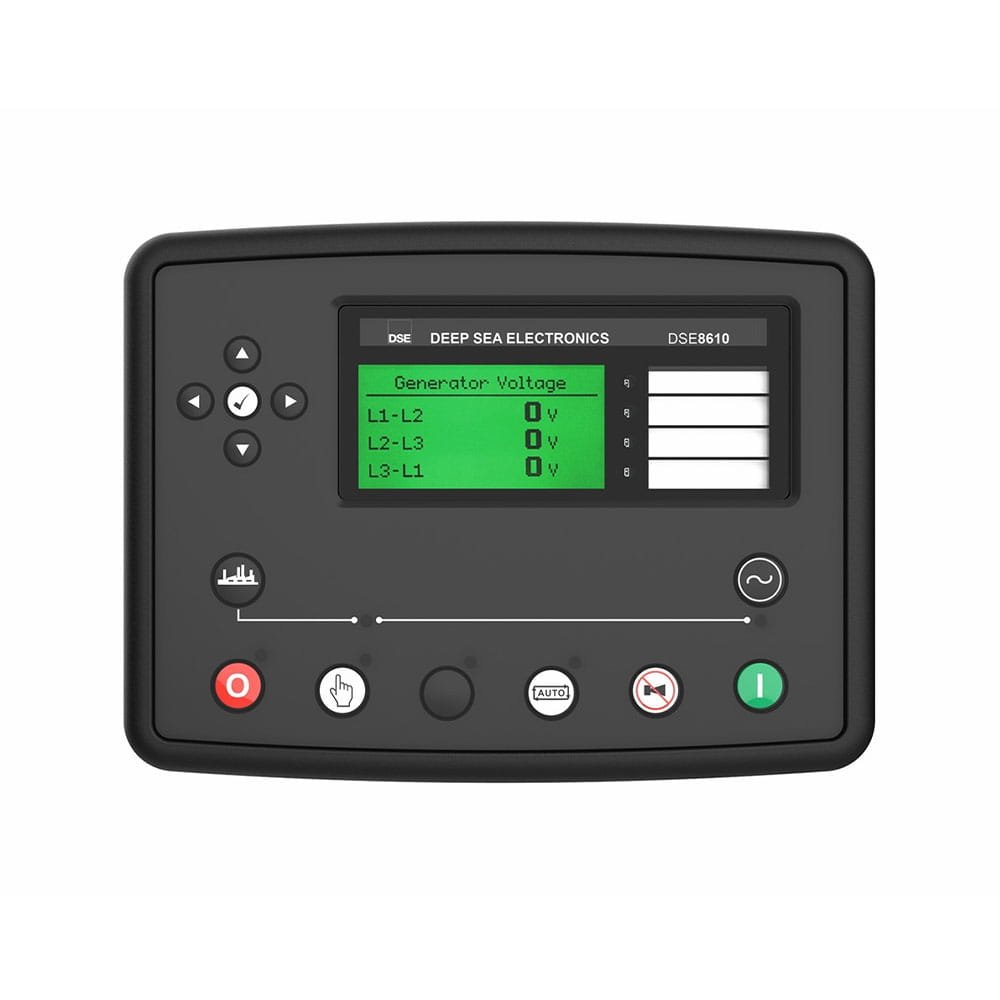

The DSE8610 MKIIÂ is a market-leading Synchronising Auto Start Control Module suitable for use in a multi-generator loadshare system, designed to synchronise up to 32 generators including electronic and non-electronic engines. The DSE8610 MKIIÂ monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault conditions.
System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder. The event log records 250 events to facilitate easy maintenance, and an extensive number of fixed and flexible monitoring, metering and protection features are included. Designed to offer increased built in support for active sensors for 0 V to 10 V & 4 mA to 20 mA. Comprehensive communication and system expansion options are available.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8610-02 -Â 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)
