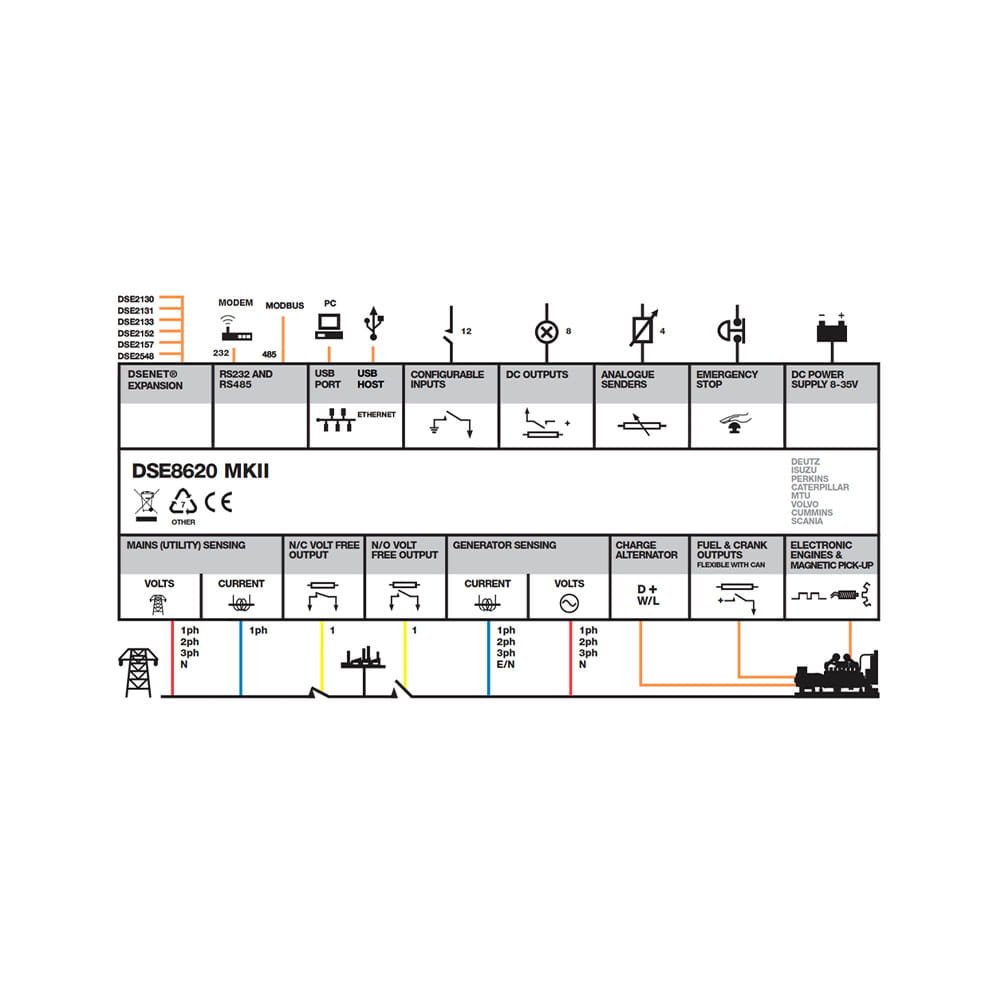

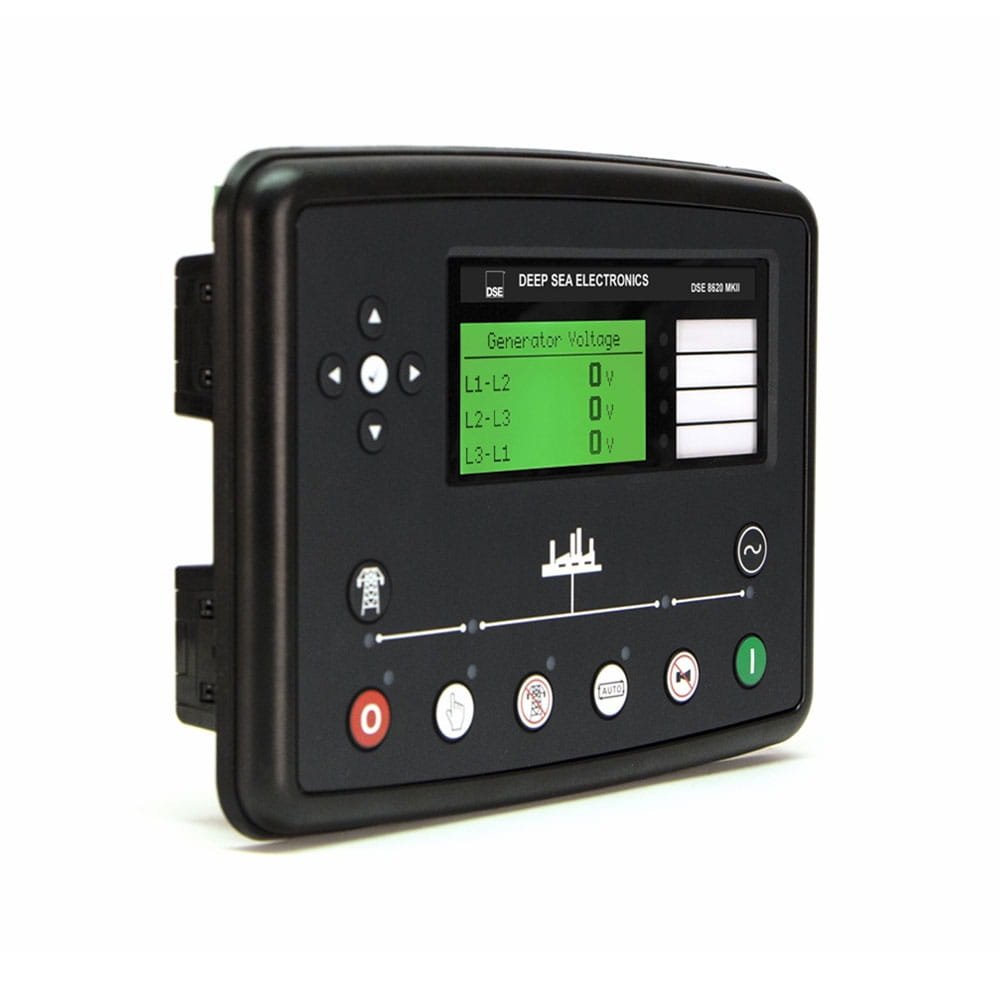

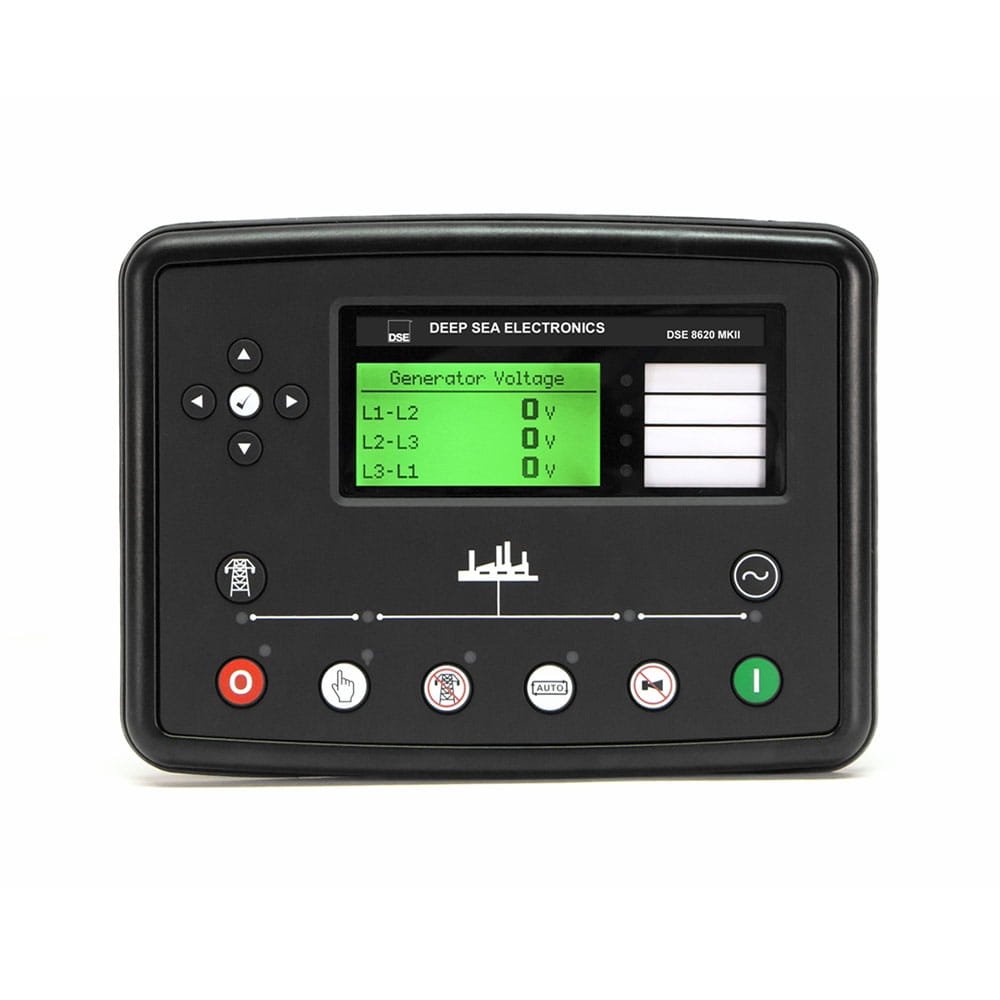

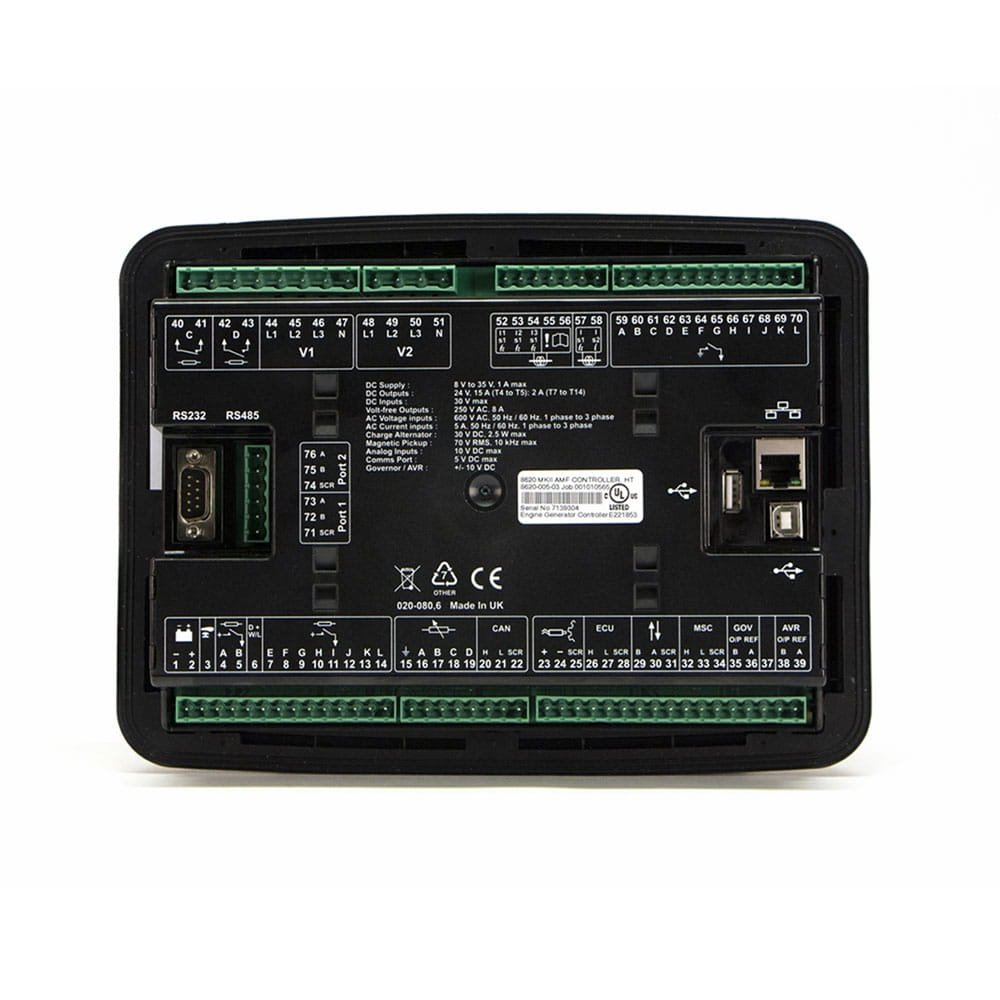

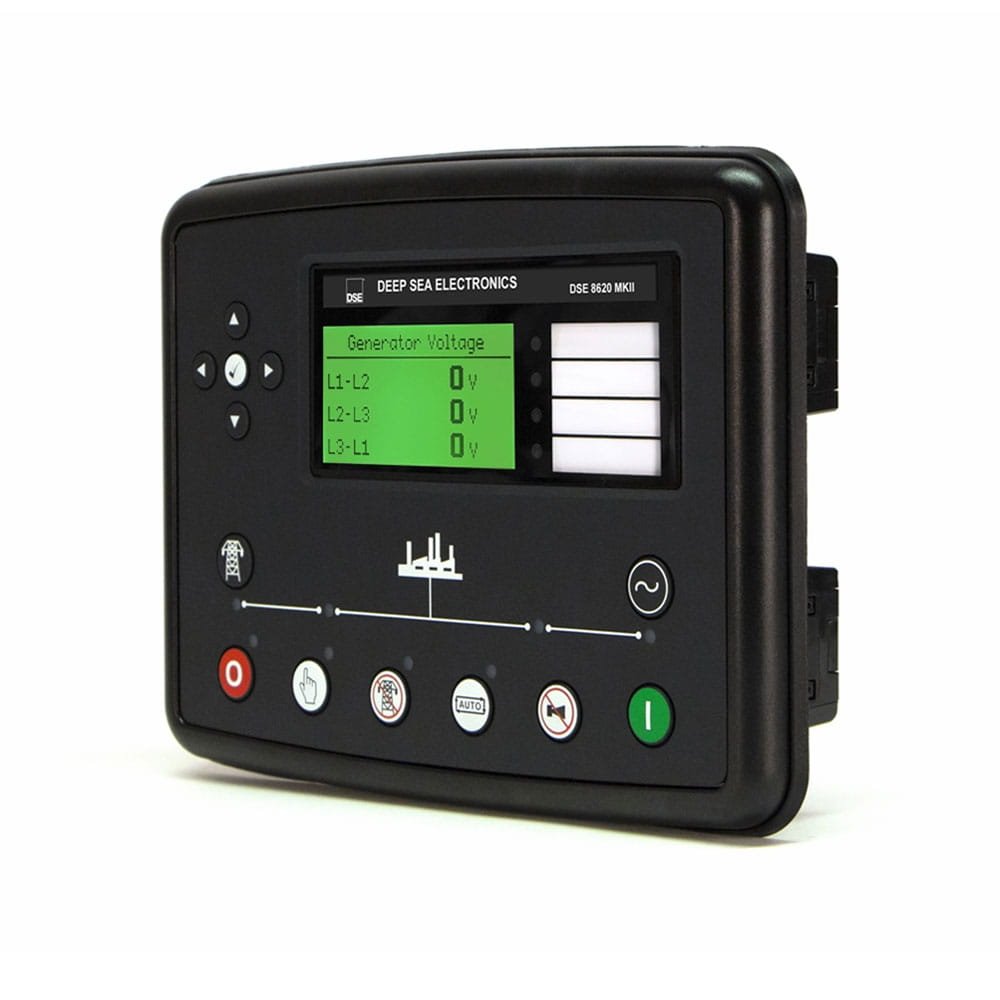

DSE8620-02 | Synchronising & Load Sharing Control Module

• CONTINUOUS VOLTAGE RATING: 8 V to 35 V continuous
• CRANKING DROPOUTS:Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

• MAXIMUM OPERATING CURRENT: 530 mA at 12 V, 280 mA at 24 V

• MAXIMUM STANDBY CURRENT: 320 mA at 12 V, 160 mA at 24 V

• CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
• VOLTAGE RANGE:15 V to 415 V AC (Ph to N) / 26 V to 719 V AC (Ph to Ph)
• FREQUENCY RANGE: 3.5 Hz to 75 Hz
• MAGNETIC PICK-UP VOLTAGE RANGE: +/- 0.5 V to 70 V
• FREQUENCY RANGE: 10,000 Hz (max)
• Refer to product data sheet for complete list of integrated features.
• Extended PLC function types.
• Redundant MSC.
• Redundant MSC.
• Two RS485 ports.
• 32-set synchronisation.
• Load switching, load shedding & dummy load outputs.
