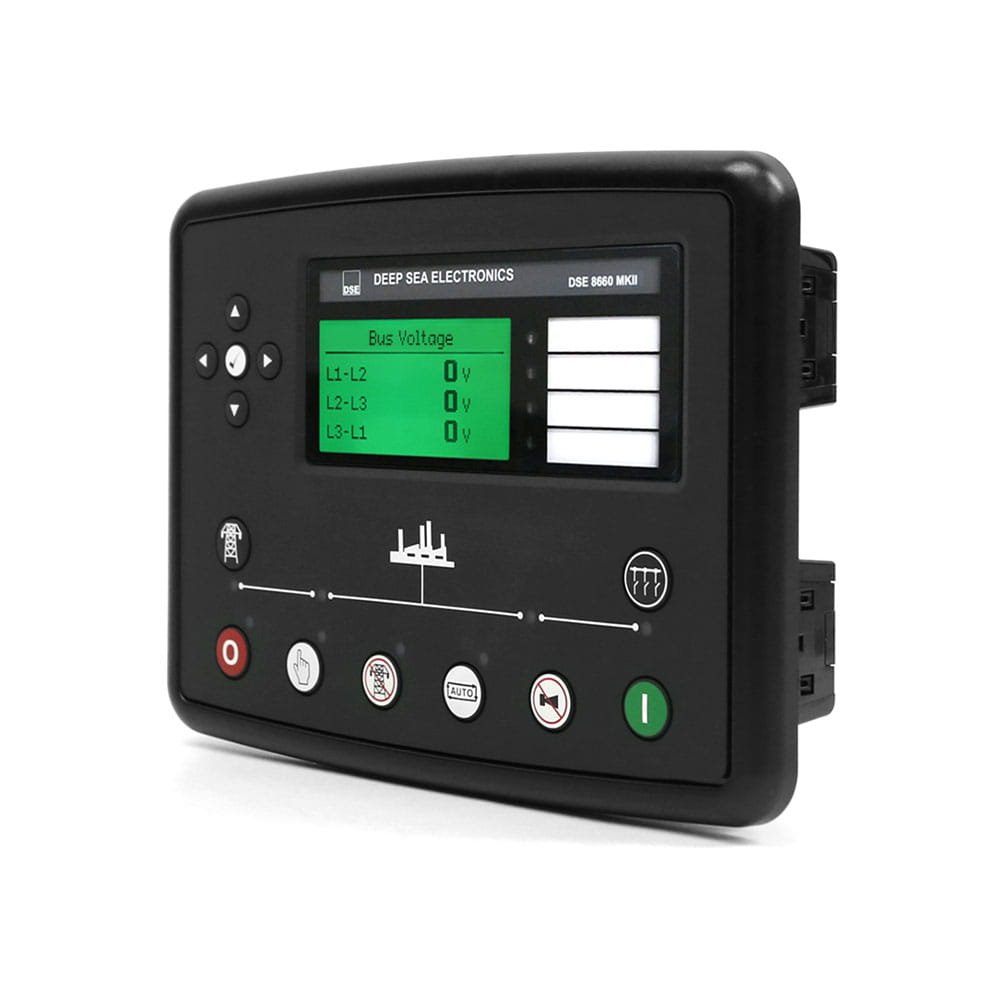

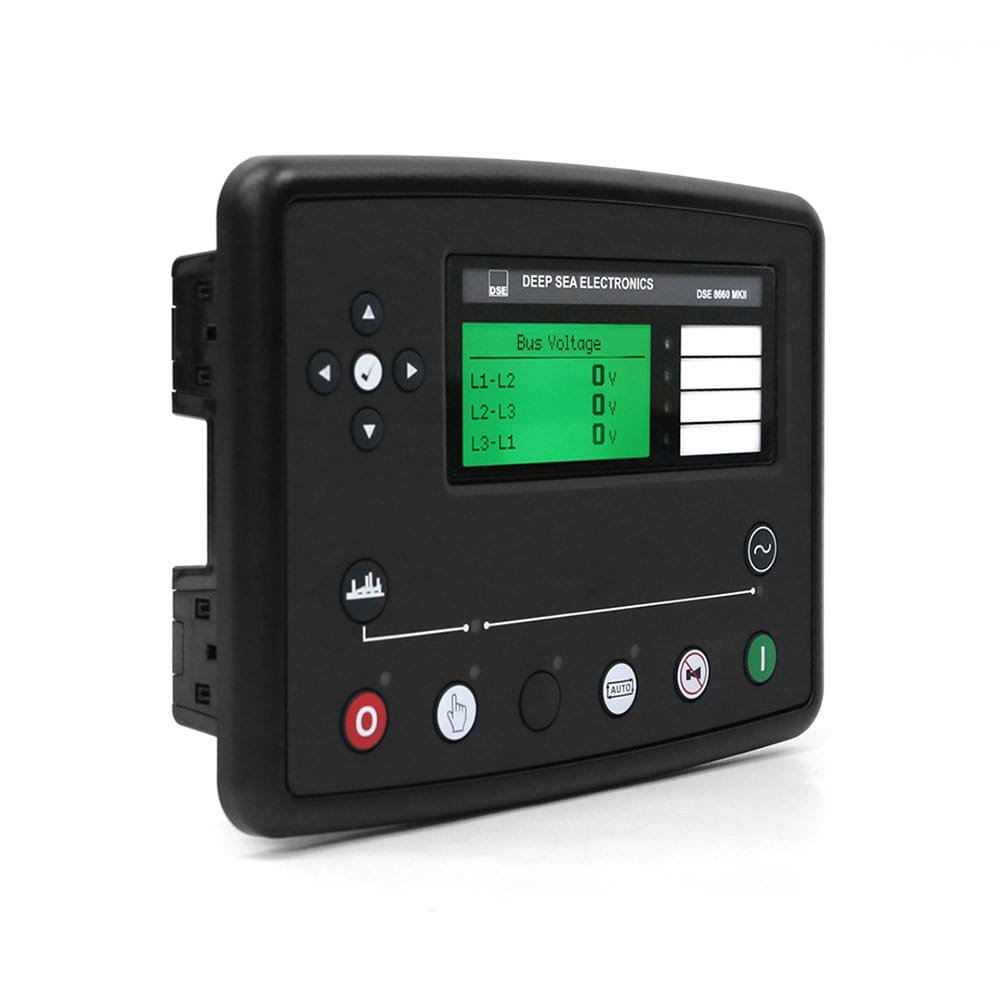

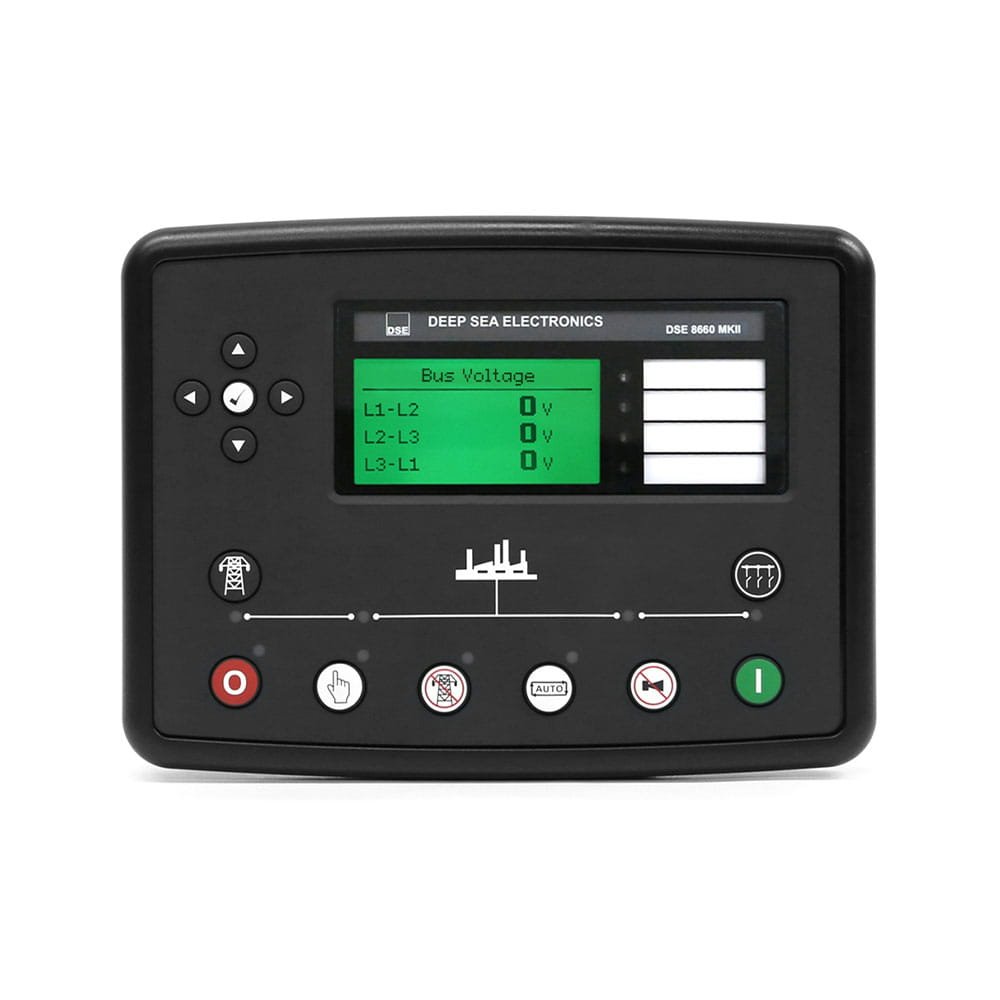

DSE8660 MKII | Auto Transfer Switch & Mains (Utility) Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V continuous
- CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
- MAXIMUM OPERATING CURRENT: 460 mA at 12 V, 245 mA at 24 V
- MAXIMUM STANDBY CURRENT: 375 mA at 12 V, 200 mA at 24 V
- CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
- VOLTAGE RANGE:15 V to 333 V AC (L-N)
- MAGNETIC PICK-UP VOLTAGE RANGE: +/- 0.5 V to 70 V
- FREQUENCY RANGE: 10,000 Hz (max)
- R.O.C.O.F & vector shift.Ç
- Generator load demand.
- Automatic hours run balancing.
- Bus failure detection.
- Electrical protections.
- Modbus RTU/TCP support.
- Configurable display languages.
- Configurable timers & alarms.
- Configurable maintenance alarms (3).
- Multiple date & time scheduler.
Call for Quote for international purchases!
$1,798.93
SKU: 8660-02
Categories: Load Sharing & Synchronizing
The DSE8660Â MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE8610Â MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)
