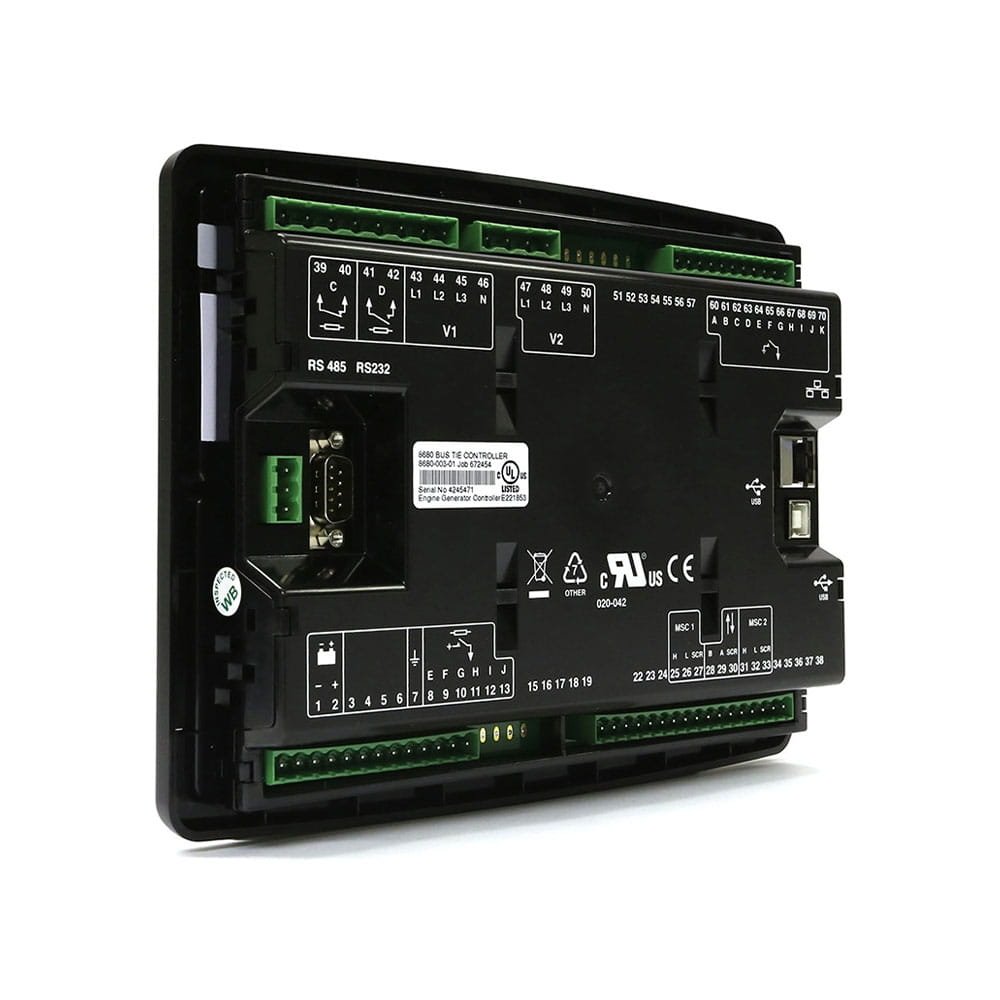

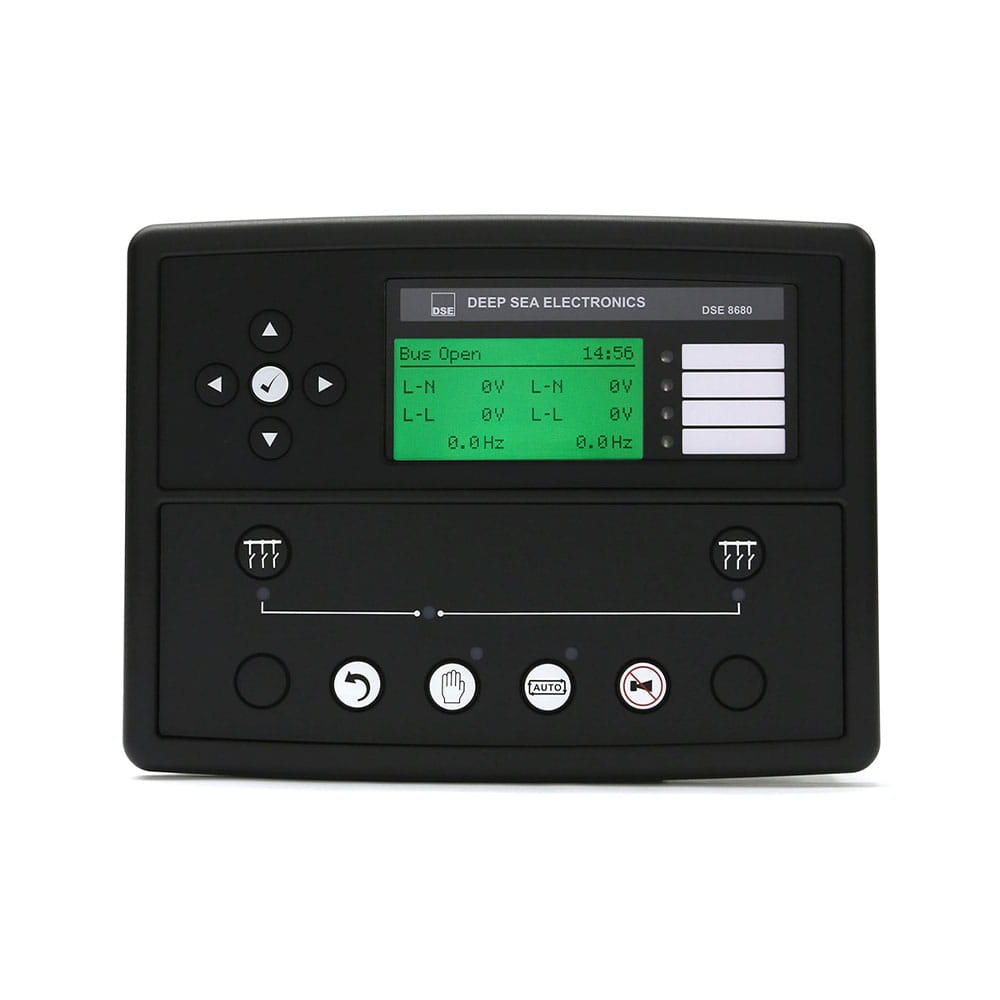

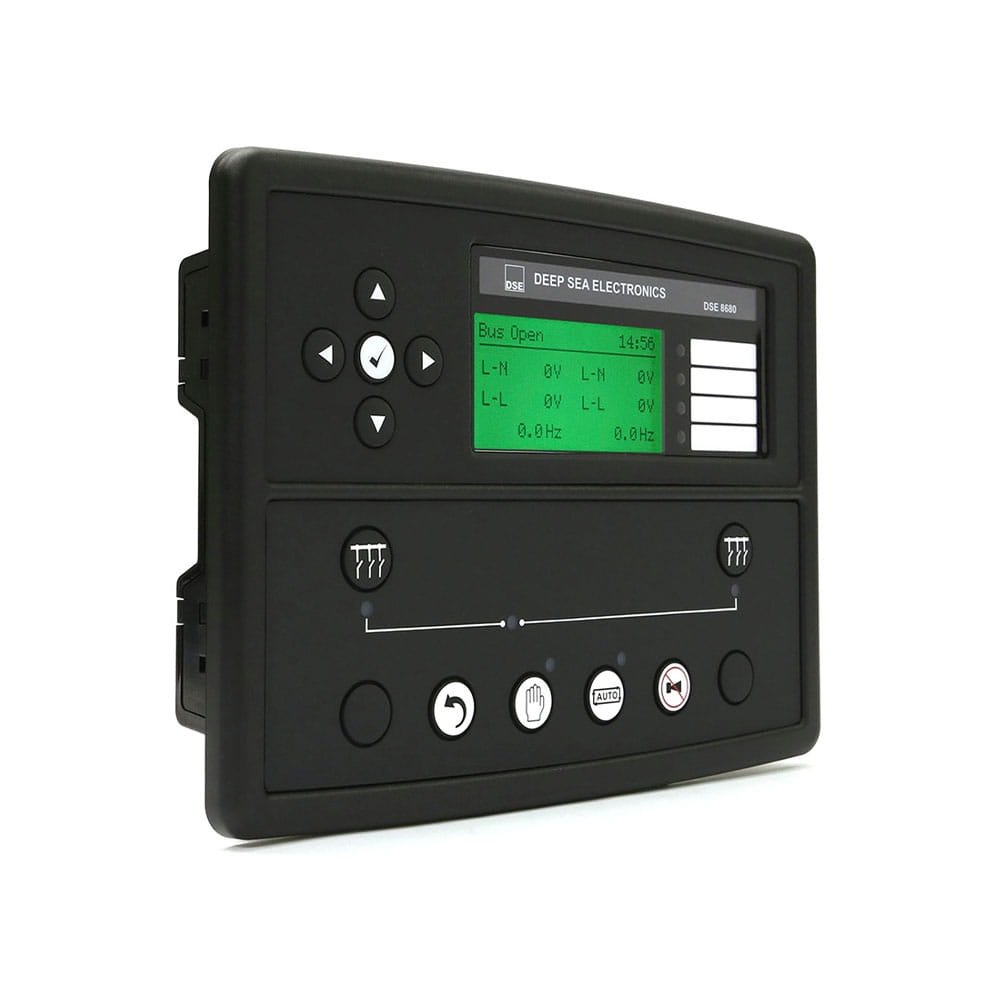

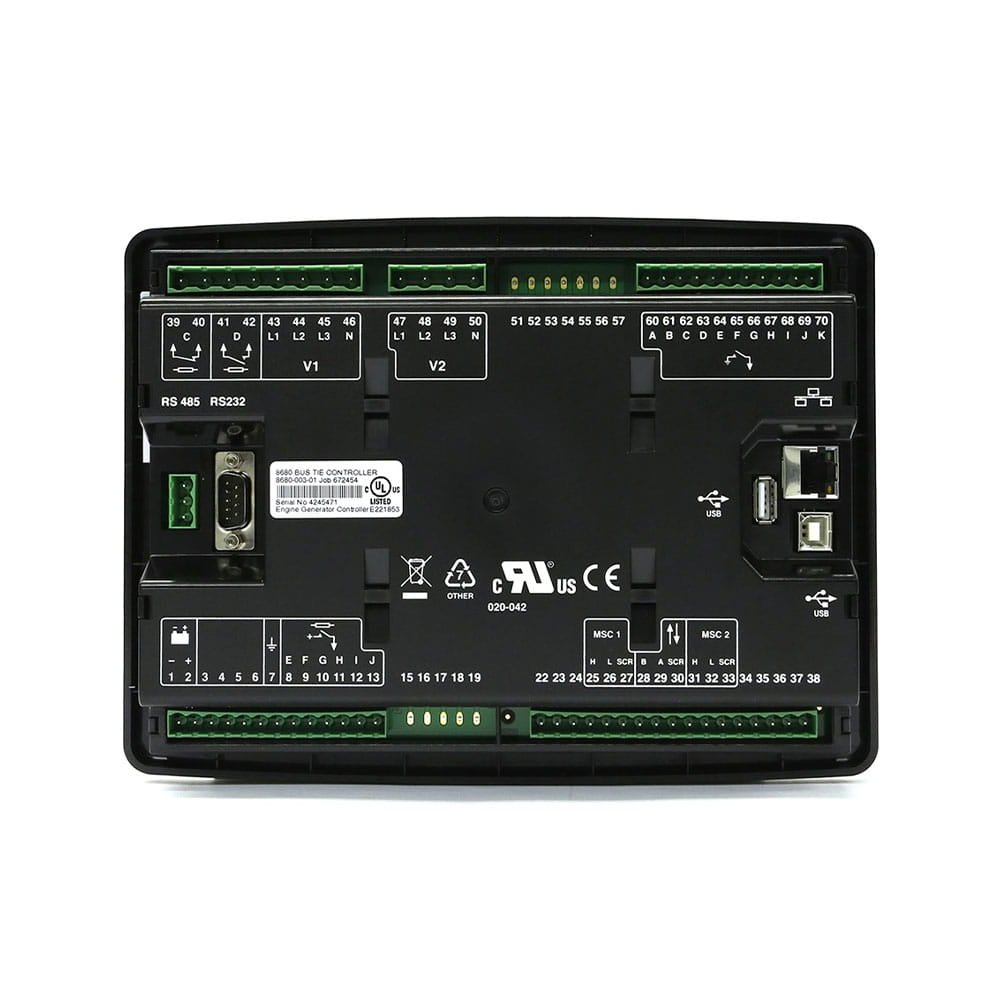

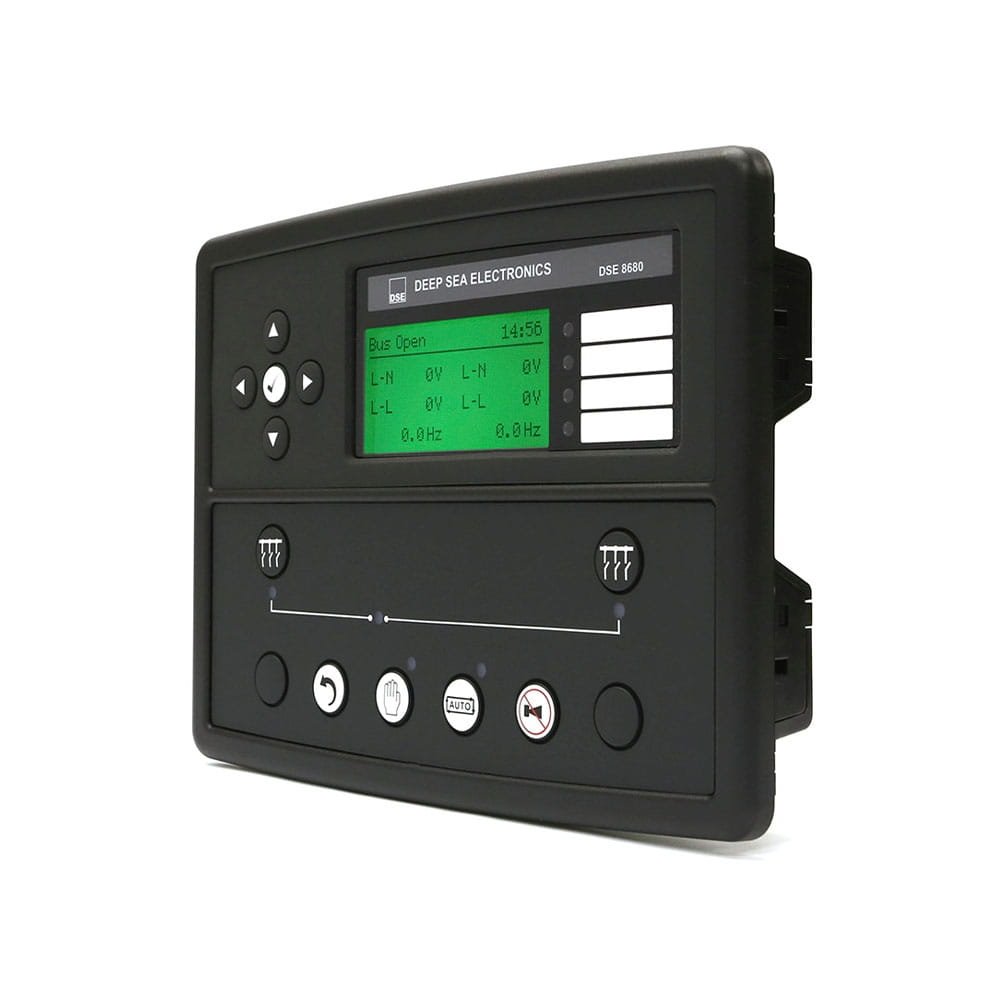

Original DSE8680 | Synchronising Generator Bus Tie Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- MAXIMUM OPERATING CURRENT: 150 mA at 12 V, 80 mA at 24 V
- MAXIMUM STANDBY CURRENT: 50 mA at 12 V, 30 mA at 24 V
- VOLTAGE RANGE: 15 V to 333 V AC (L-N)
- FREQUENCY RANGE: 3.5 Hz to 75 Hz
- OUTPUTS C & D: 8 A at 250 V AC (Volt free)
- AUXILIARY OUTPUTS E,F,G,H,I & J: 2 A DC at supply voltage
- Electrical protections.
- Modbus RTU/TCP support.
- Configurable display languages.
- Configurable status screens.
- Audible alarms.
- Engine protections.
- Backed-up real time clock.
- SMS messaging.
- Modem diagnostic tool.
- Data logging & trending.
Call for Quote for international purchases!
$1,615.99

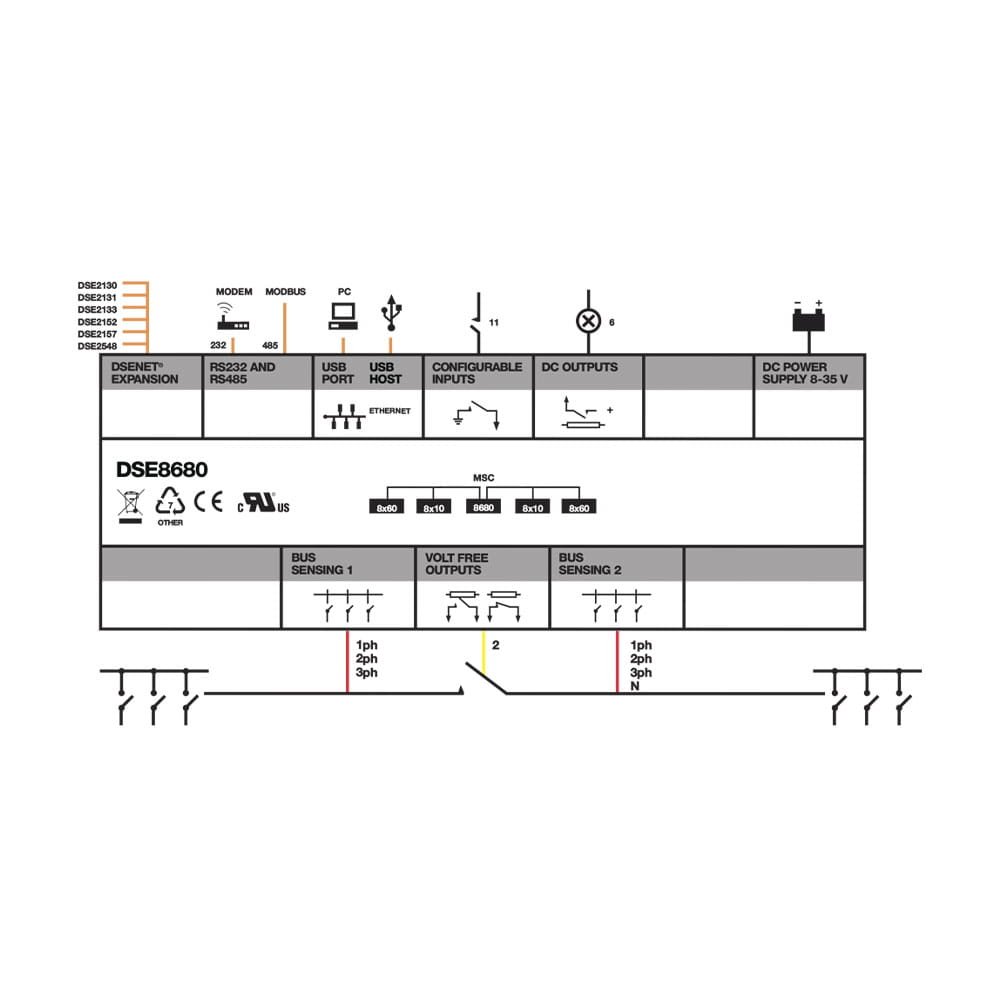

The DSE8680 Generator Bus-Tie Breaker Control Module actively controls and manages a generator bus-tie breaker using advanced synchronizing technology. It automatically handles synchronizing and check-sync operations through the DSE Multi-Set Communications (MSC) link, ensuring safe and reliable opening and closing of the bus-tie breaker. Engineered for demanding power management applications, the DSE8680 delivers precise generator synchronization, seamless power transitions, and enhanced system protection—making it ideal for complex multi-set generator installations.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.86kg
PRODUCT VARIANTS
8680-01 - 8680 Synchronising Generator Bus Tie Control Module
