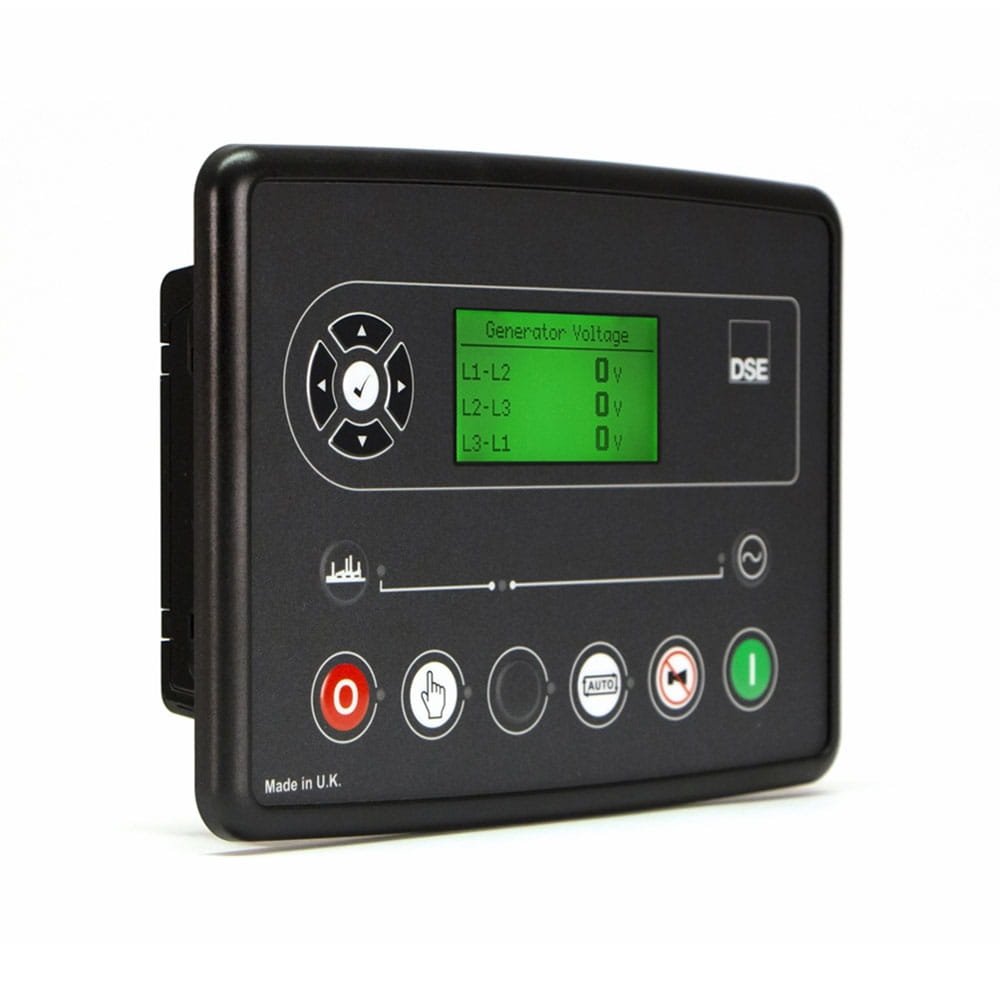

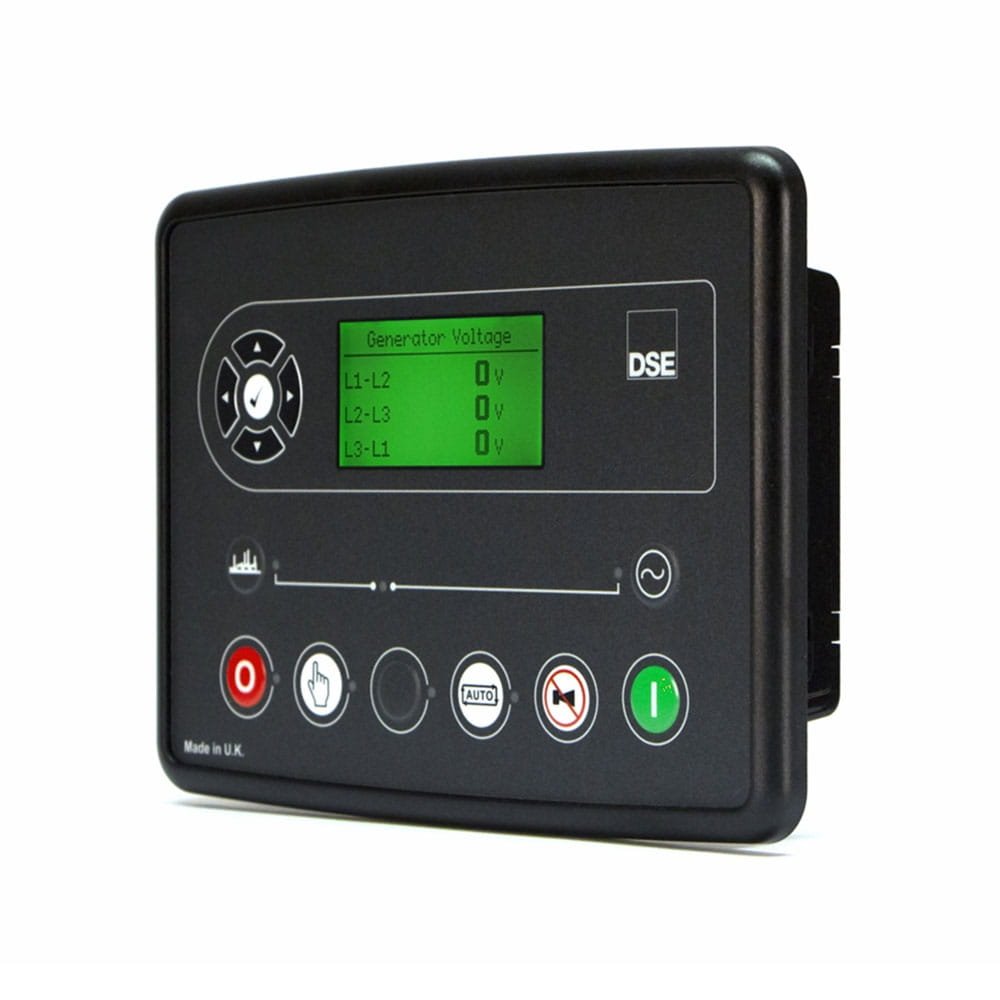

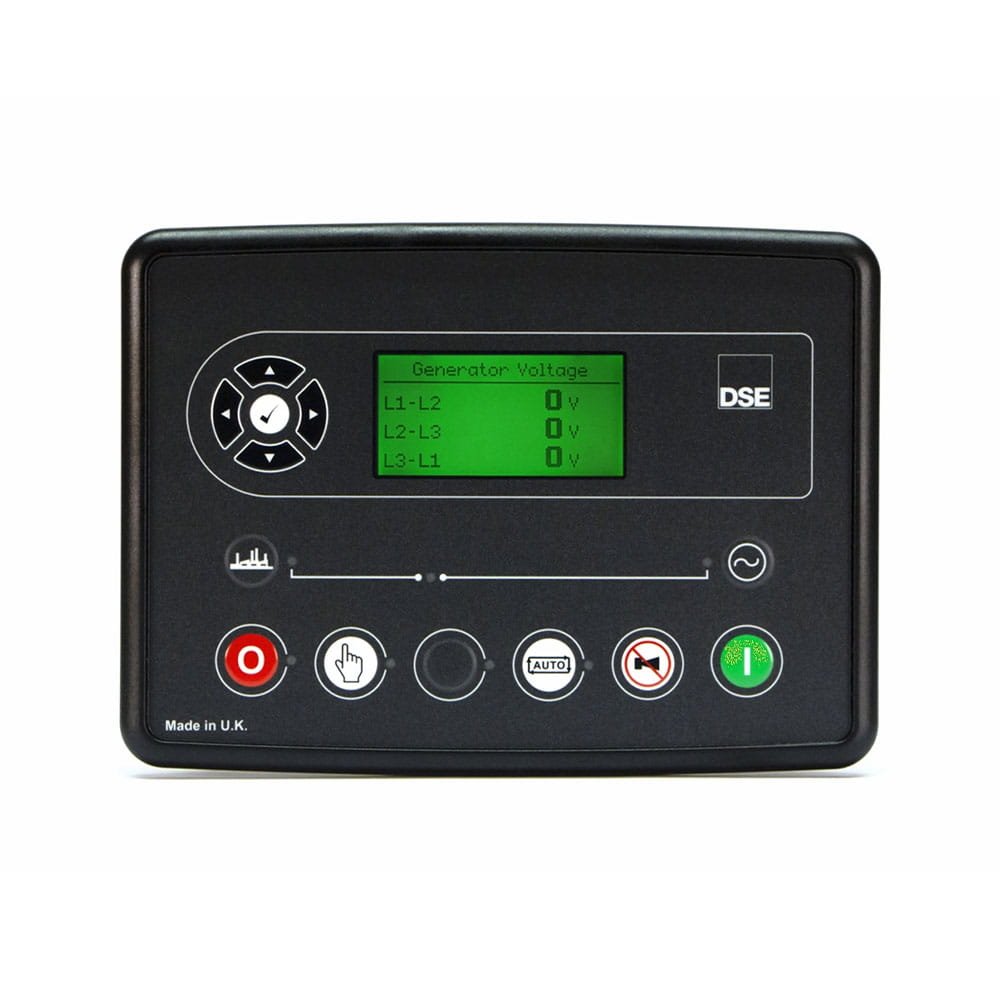

Original DSE6110 MKIII | Auto Start Control Module

• CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous 5 V for up to 1 minute
• CRANKING DROPOUTS: Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
• MAXIMUM OPERATING CURRENT: 260 mA at 12 V, 150 mA at 24 V
• MAXIMUM STANDBY CURRENT: 145 mA at 12 V, 85 mA at 24 V
• CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
• VOLTAGE RANGE: 15 V to 415 V AC (Ph to N) / 26 V to 719 V AC (Ph to Ph)
• FREQUENCY RANGE: 3.5 Hz to 75 Hz
• VOLTAGE RANGE: +/- 0.5 V to 70 V
• FREQUENCY RANGE: 10,000 Hz (max)
• 6 configurable DC outputs.
• 4 configurable analogue/digital inputs.
• 8 configurable digital inputs.
• 3-phase generator sensing.
• Tier 4 ECO engine support including exhaust fluids & filters.
• CAN, MPU & alternator speed sensing (selectable depending on engine type).
• Support for 0-10 V & 4-20mA oil pressure senders.
• Customisable power up text and images
• Generator/load current monitoring & protection.
