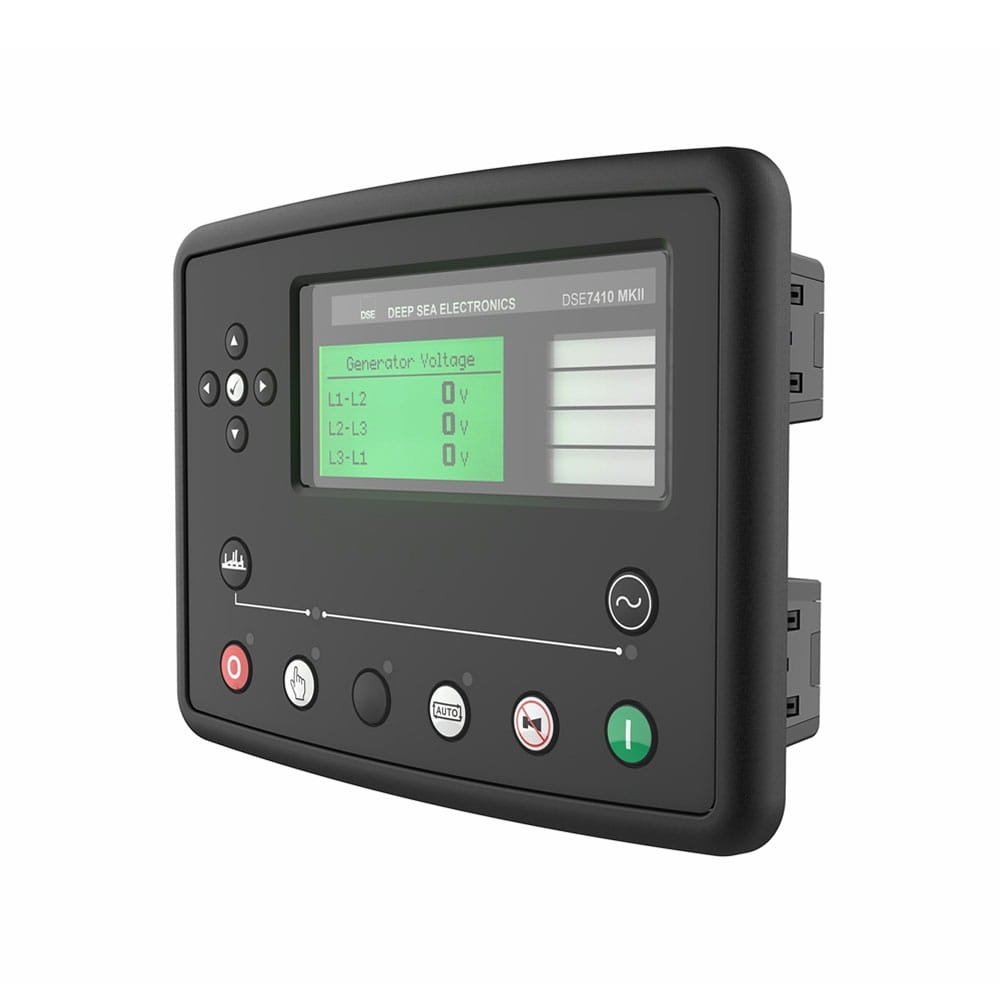

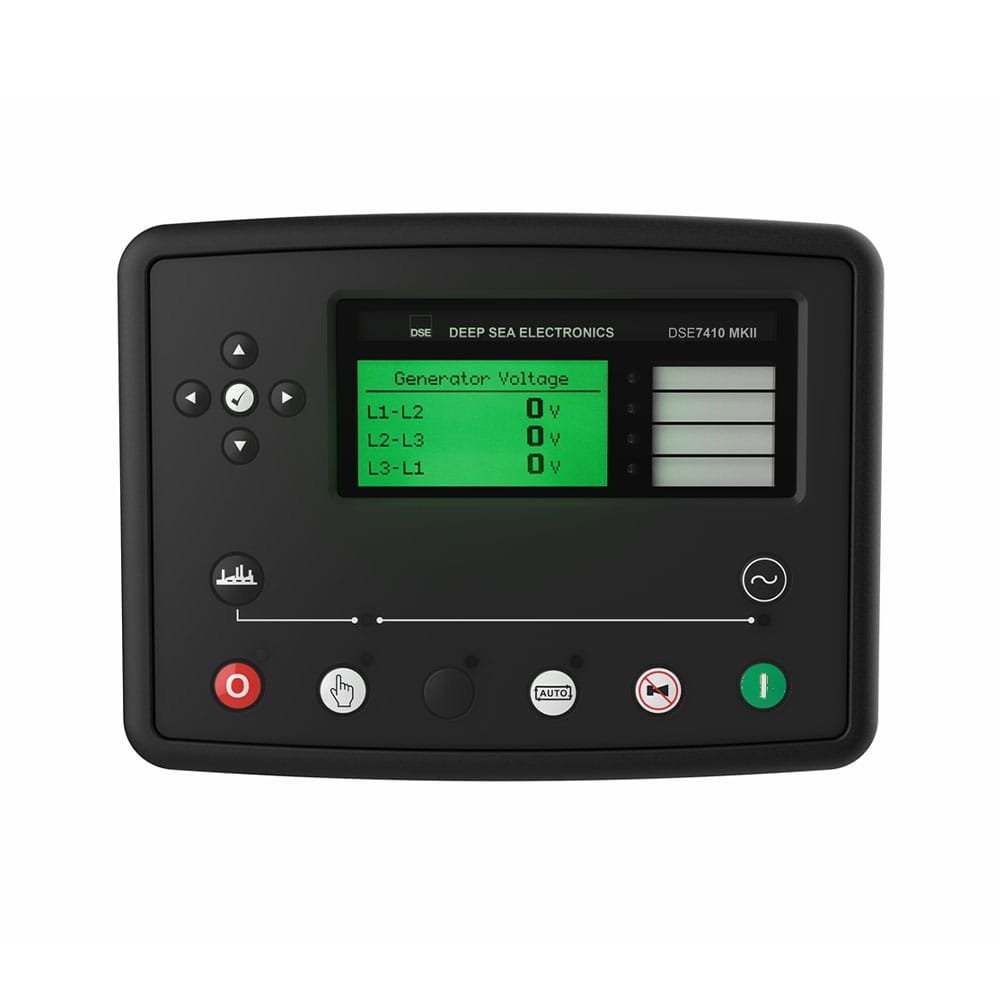

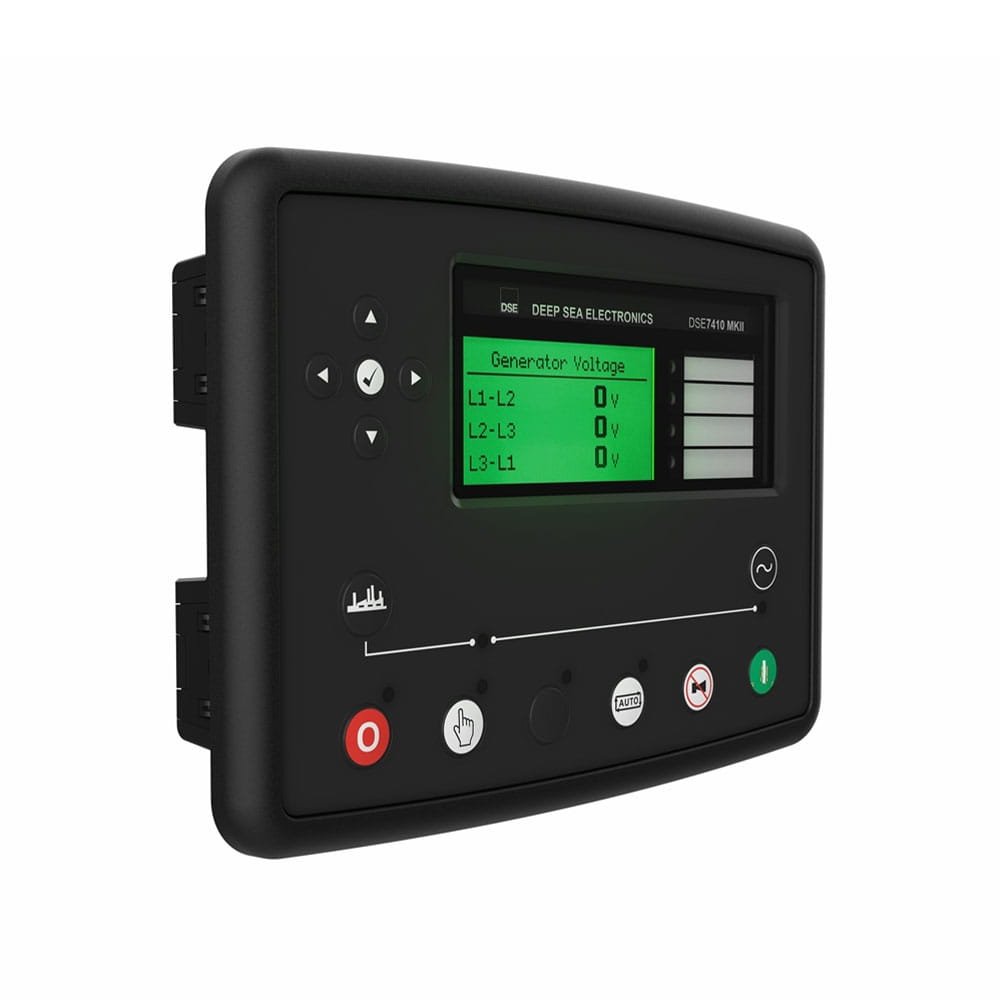

Original DSE7410-03 MKII | Auto Start Control Module
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V DC Continuous
- CRANKING DROPOUTS: Able to survive 0 V for 100 ms, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. Backlight will not be maintained during cranking
- MAXIMUM OPERATING CURRENT: 340 mA at 12 V, 160 mA at 24 V
- MAXIMUM STANDBY CURRENT: 160 mA at 12 V, 80 mA at 24 V
- CHARGE ALTERNATOR EXCITATION / FAIL RANGE: 0 V to 35 V
- Advanced PLC functionality including multi-purpose PIDs
- Flexible inputs and outputs
- DSENet® Expansion Support
- PC configuration using DSE Configuration Suite
- Multiple language support
- Enhanced 4-line text display
- Integrated RS232 and RS485 ports providing Modbus RTU support
- Integrated Ethernet port providing Modbus TCP, SNMP v2c and in built web SCADA support.
Call for Quote for international purchases!
$969.99
SKU: 7410-03
Categories: Manual & Auto Start
The DSE7410 MKII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module includes USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.
The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to meet the most demanding industry requirements. The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7410 MKII & DSE7420 MKII using RS232 or RS485 communications.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7410-03 - 7410 MKII Auto Start Control Module
