DSE8003 MKII 7″ | Graphical Colour Multi-Set Remote Overview Display
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. - MAXIMUM OPERATING CURRENT: 300 mA at 12V, 150 mA at 24V
- AUXILLARY OUTPUTS C & D: 2 A DC at supply voltage
- Touch screen enabled.

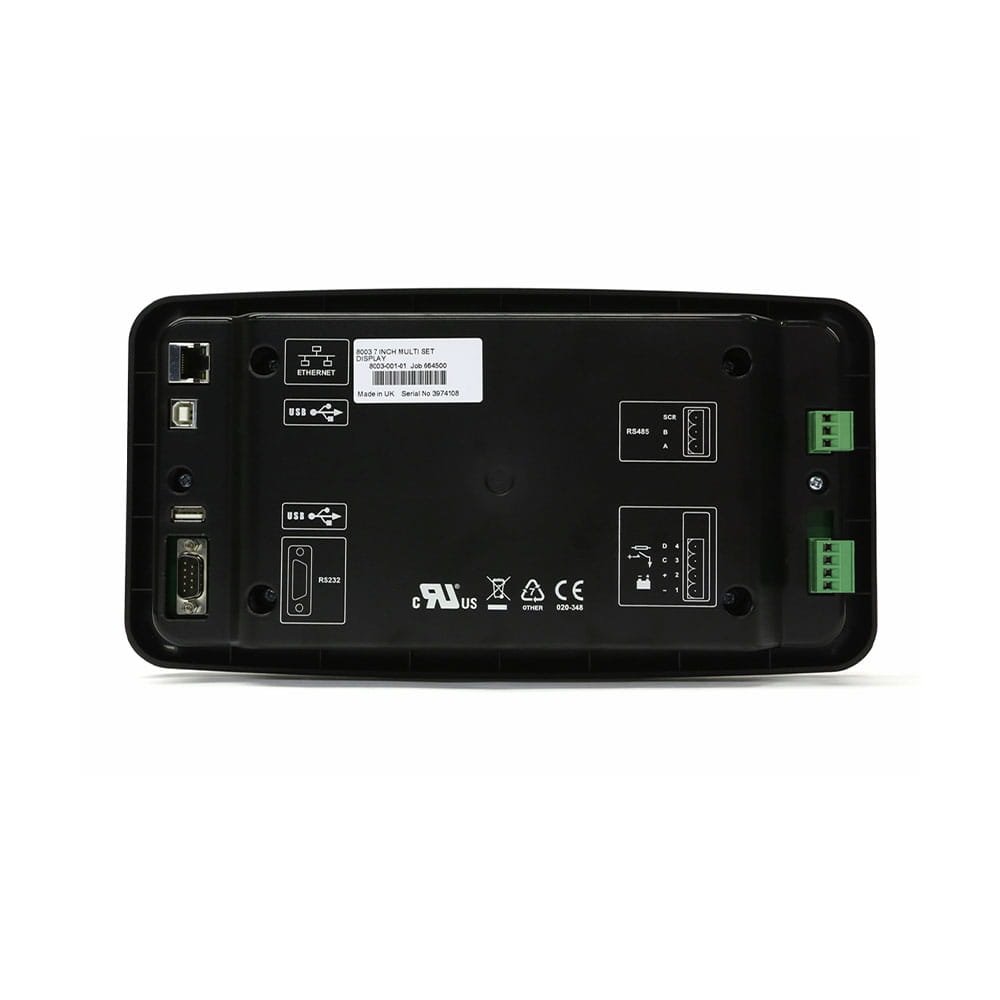

- Remote communications (RS232, RS485 x2, Ethernet).
- Front panel mounting.
- Remote monitoring.
- Graphical displays showing, charts, meters, power display, graphs and engine status information.
- Up to 20 remote displays can be used within one system.
Call for Quote for international purchases!
$1,825.99
SKU: 8003-02
Categories: Remote Monitoring

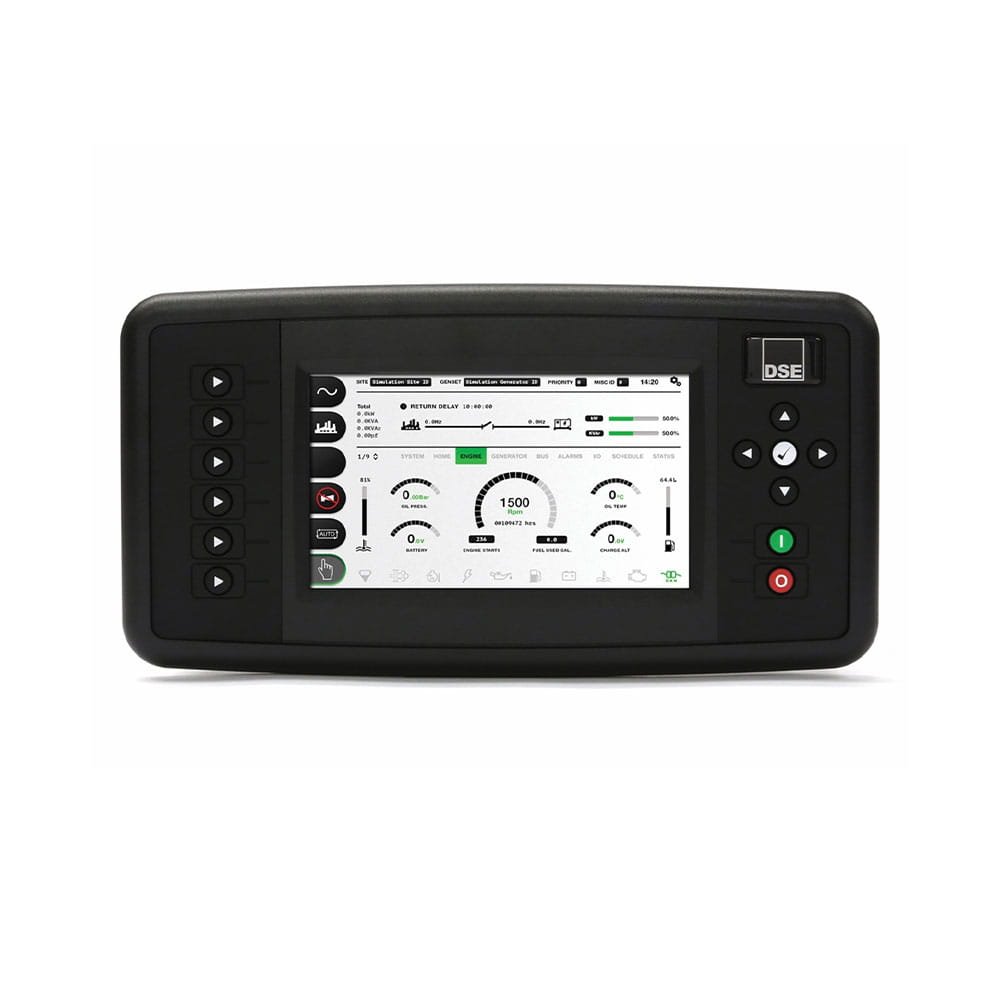

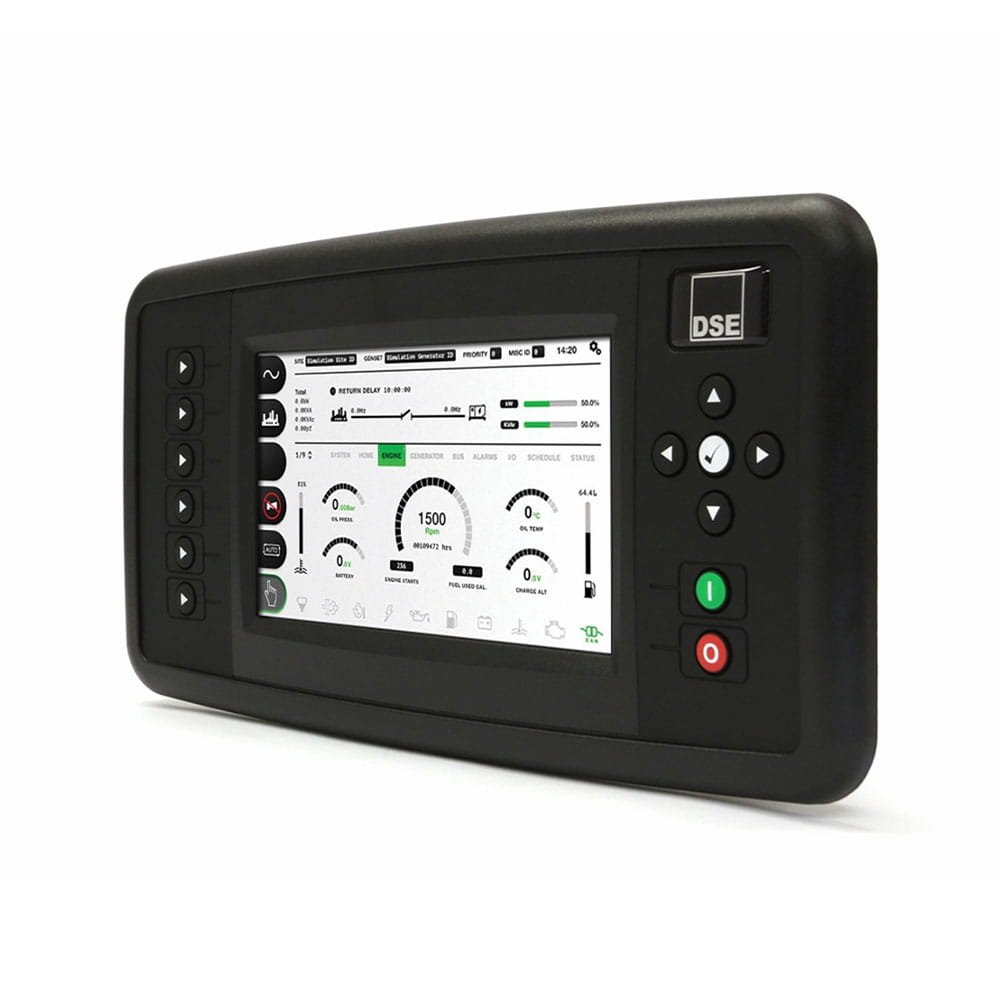

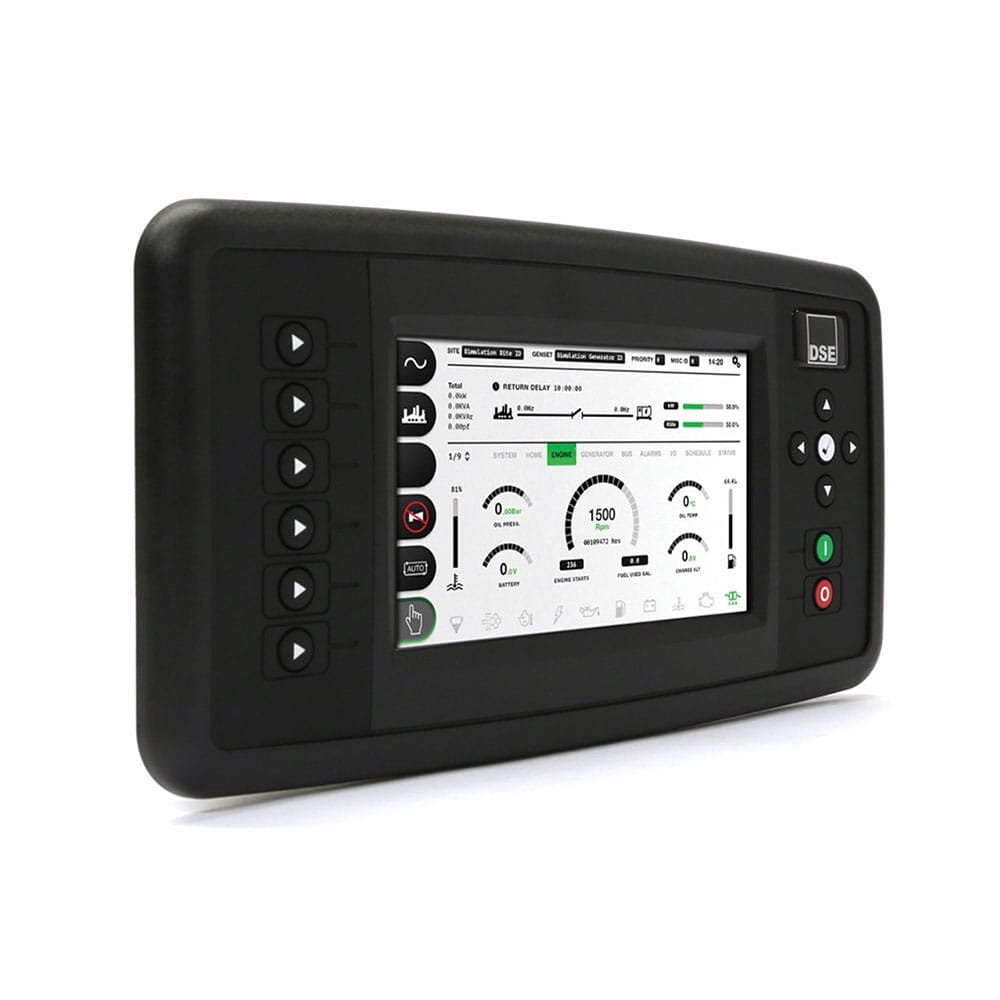

The DSE8003 is a full colour 7” graphical remote overview display. It has been designed to seamlessly integrate with 86xx MKII load share control modules. The MKII version offers an improved graphical user interface and faster operating response times compared to its MKI predecessor.
Using a RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.
OVERALL SIZE
310 mm x 160 mm x 40 mm (12.2” x 6.3” x 1.5”)
PANEL CUTOUT SIZE
282 mm x 136 mm (11.1" x 5.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
1.0kg
PRODUCT VARIANTS
8003-02 - 8003 7" Graphical Colour Multi-Set Remote Overview Display
