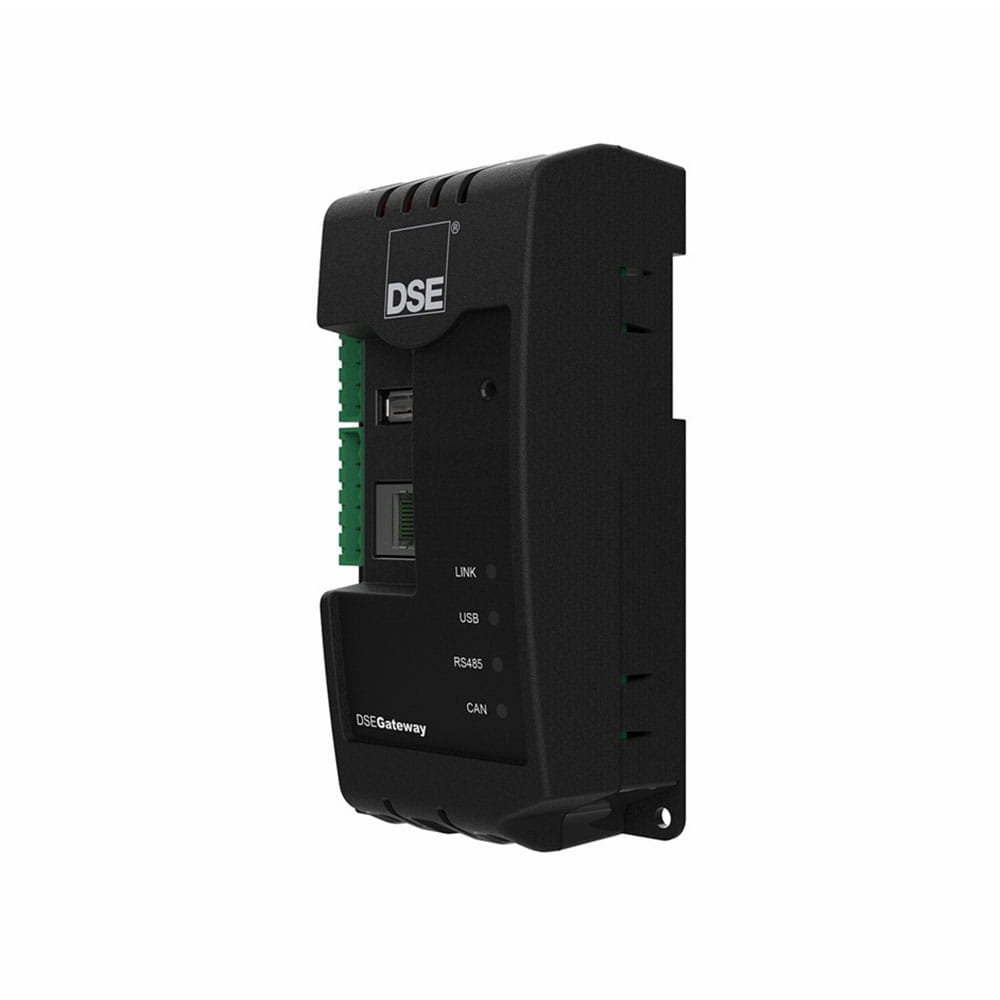

Original DSE890-04 | DSEWebNet® Gateway – 4G (GSM)/Ethernet
- CONTINUOUS VOLTAGE RATING: 8 V to 36 V continuous
- CRANKING DROPOUTS: Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries.
- MAXIMUM OPERATING CURRENT: 755 mA at 12 V / 376 mA at 24 V
- MAXIMUM STANDBY CURRENT: 207 mA at 12 V / 113 mA at 24 V
- COMMUNICATIONS: USB A Single DSE Controller
- CAN: Multiple DSE Controllers & Programmable Displays
- RS485: Multiple DSE Controllers
- Ethernet: Multiple DSE Controllers
- 4G Connectivity.
- Supports 2G & 3G connections (where available)
- Configured device can be monitored using DSEWebNet® software
- Configured device can be monitored using third-party MQTT brokers

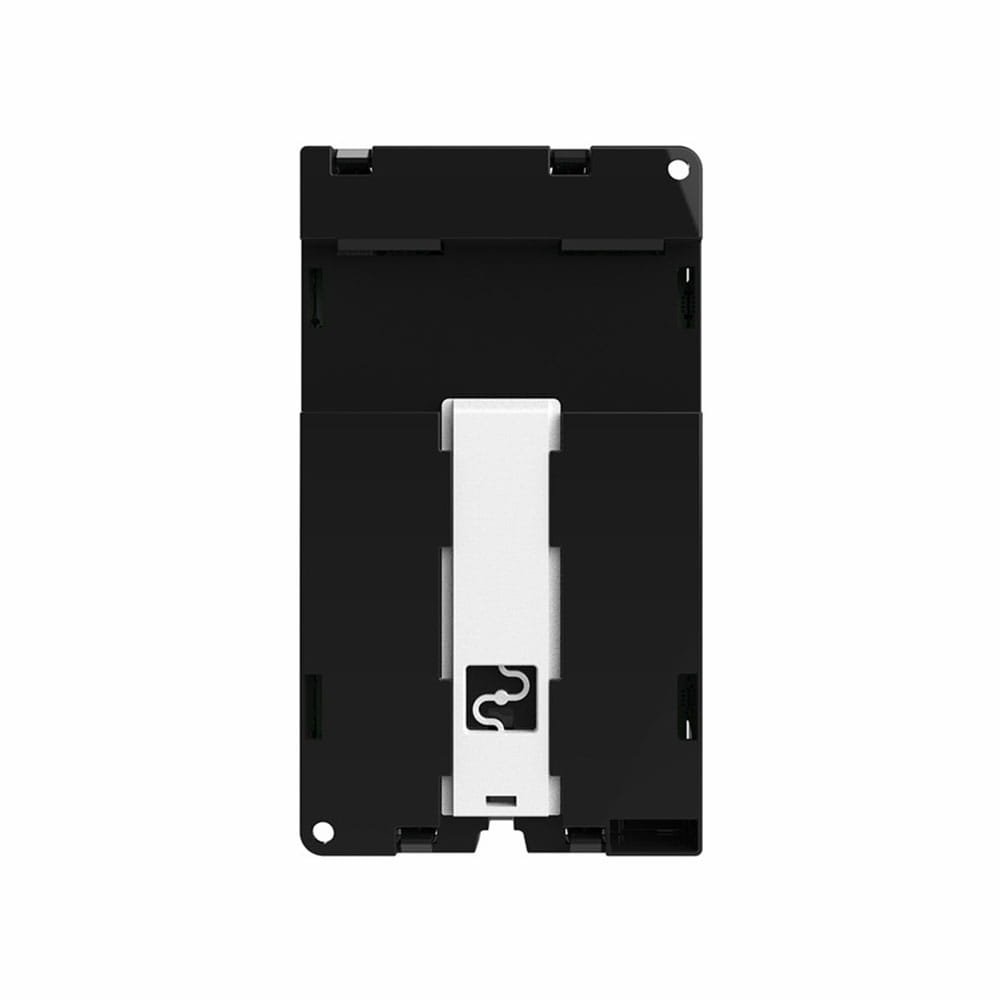

- DIN rail & chassis mount.
- Multiple users can access each DSE890 MKII simultaneously
- Main & diversity aerial connection inputs.
Call for Quote for international purchases!
$615.99
The DSE890 MKII gateway is used in conjunction with supported DSE controllers and programmable displays to provide remote monitoring and communications data via DSEWebNet® or third party MQTT brokers. The DSE890 MKII communicates with up to five connected DSE controllers, monitoring instrumentation and operating states. Data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..).
DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels.
OVERALL SIZE
85 mm x 149 mm x 51 mm (3.4” x 5.9” x 2.0”)
WEIGHT
0.23kg
