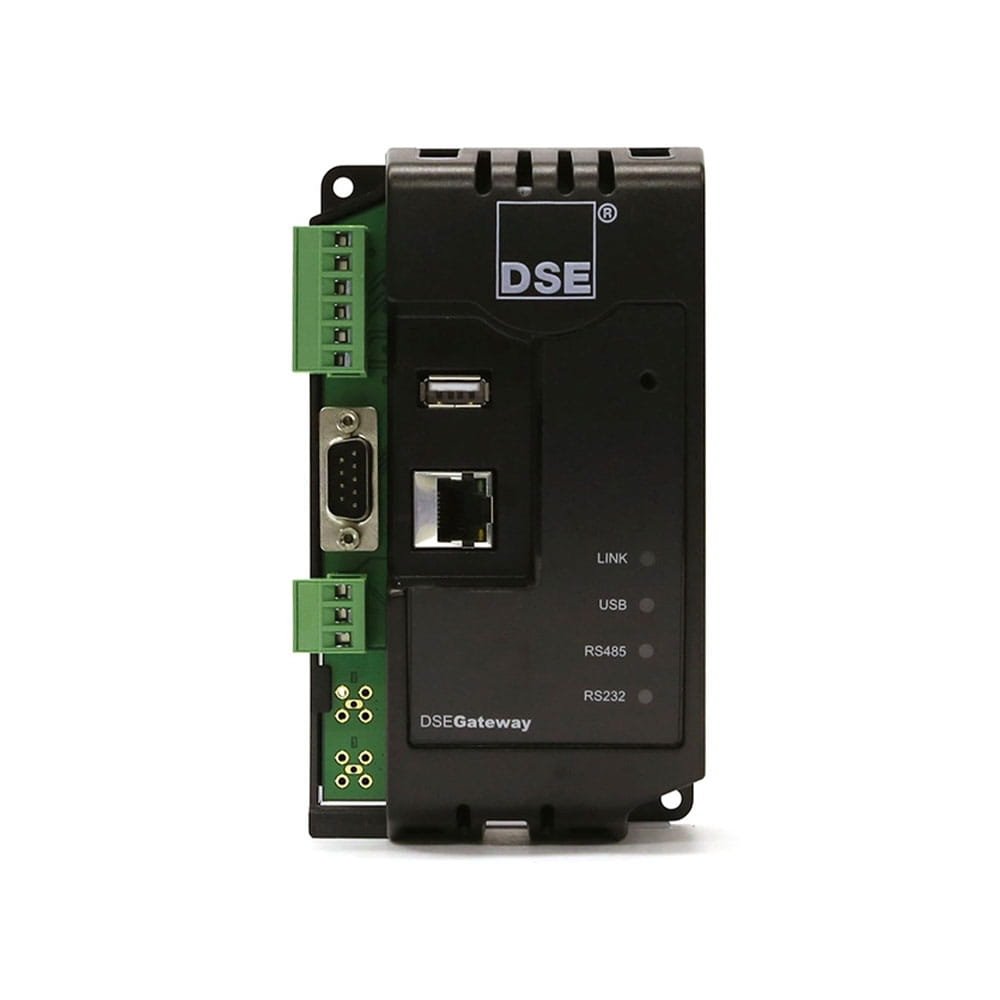

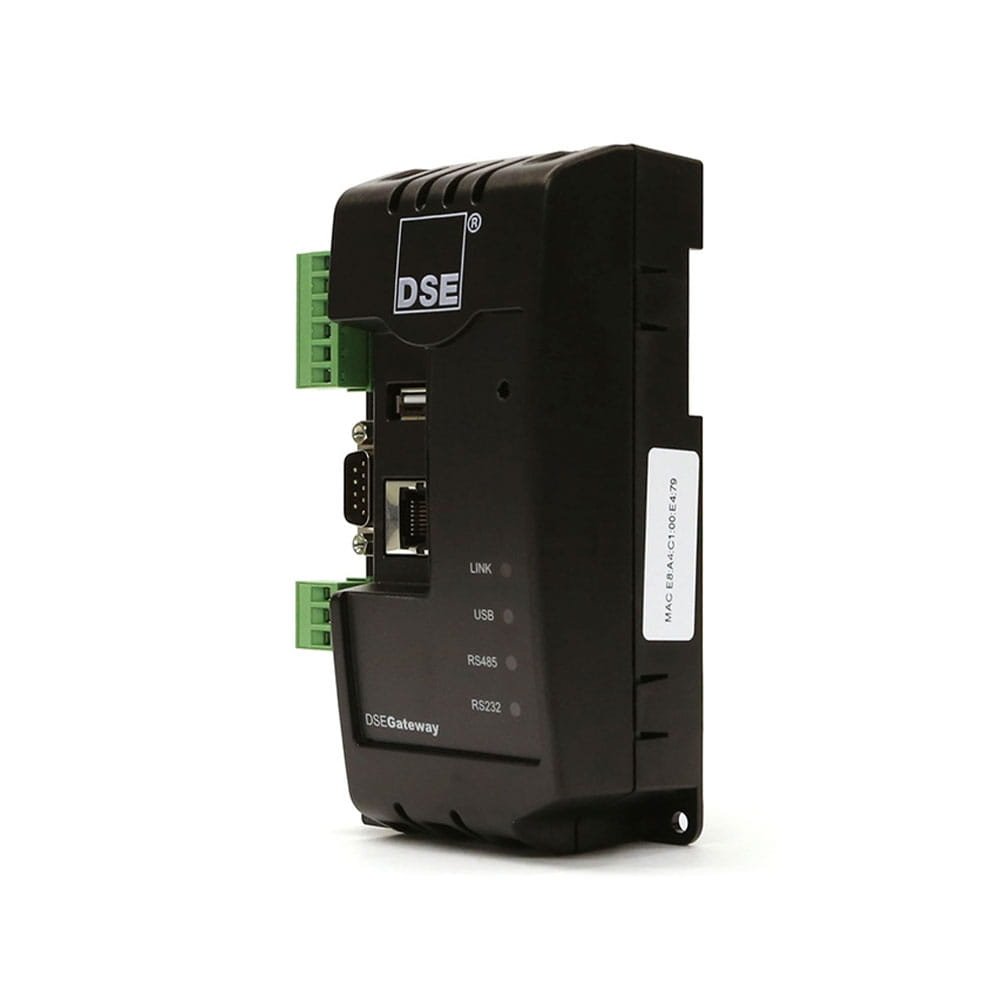

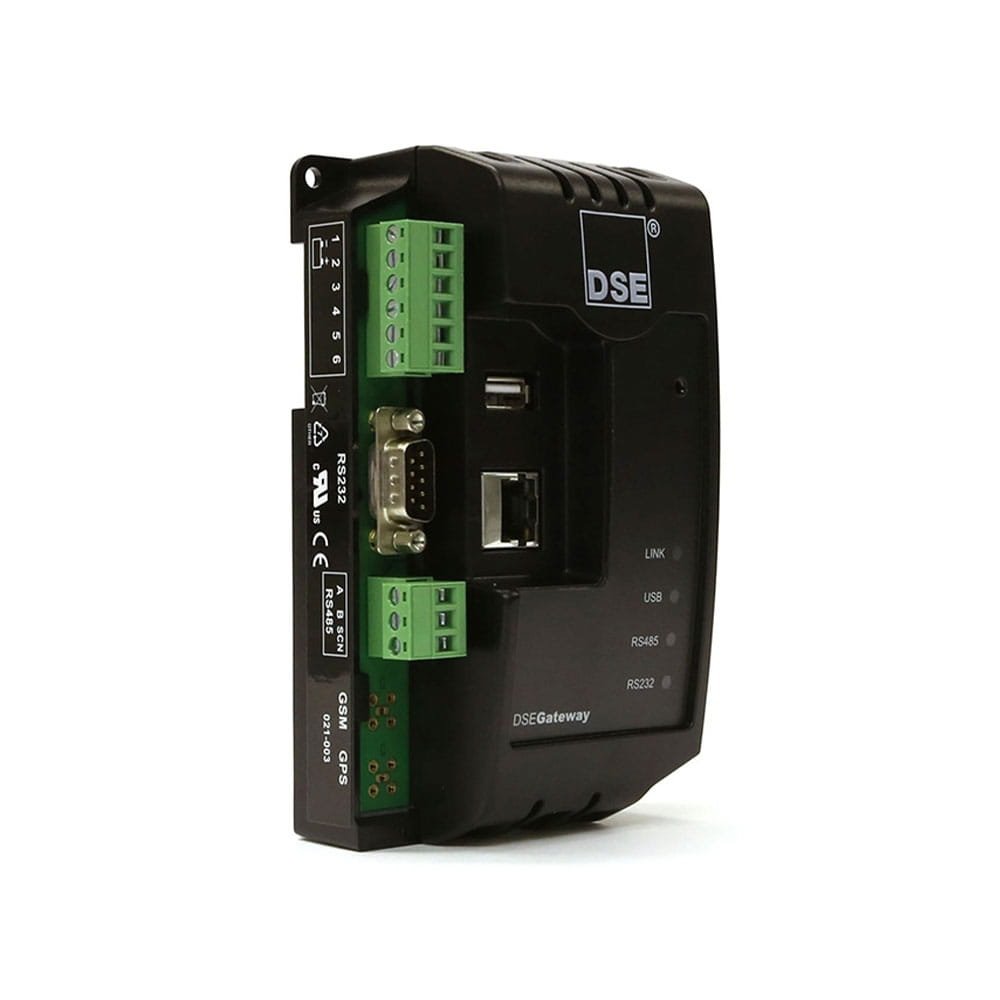

Original DSE892-01 | Simple Network Management Protocol (SNMP) Gateway
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
CRANKING DROPOUTS:Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
- MAXIMUM OPERATING CURRENT: 200 mA at 12 V / 110 mA at 24 V
- MAXIMUM STANDBY CURRENT: 150 mA at 12 V / 90 mA at 24 V

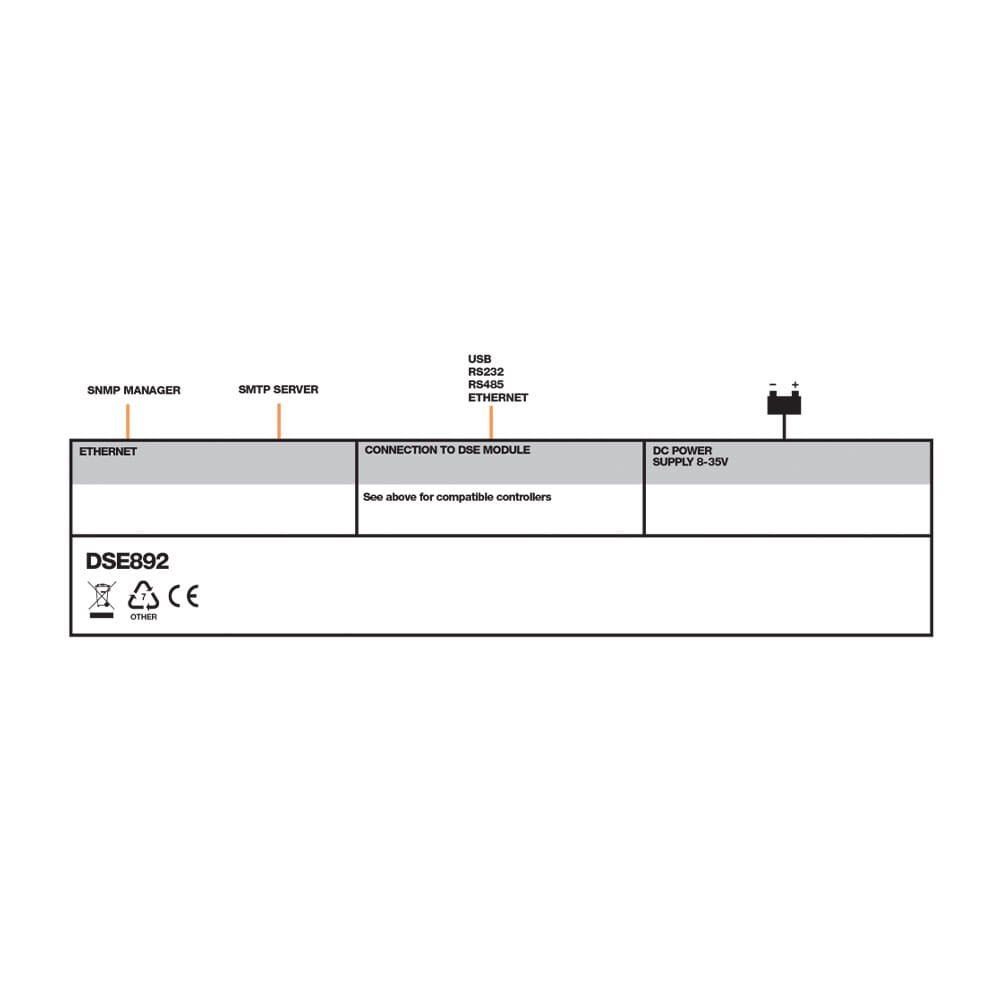

- COMMUNICATIONS: USB (Single DSE Controller)
RS232 (Single DSE Controller)
RS485 (Multiple DSE Controllers)
Ethernet (Multiple DSE Controllers)
Ethernet SNMP & SMTP - Multiple DSE control module compatibility.
- Communication port status LEDs.
- DIN rail mount.
- Plug & socket connections.
- Auto generated Email/SNMP TRAP messages when control module events and operarting changes take place.
- Customisable Email/SNMP TRAPs based upon module instrumentation values.
- Simple Internet browser configuration.
Call for Quote for international purchases!
$498.99
SKU: DSE892-01
Categories: Remote Monitoring
The DSE892 connects DSE control modules to external SNMP systems. Once a connection is made full monitoring and control functionality becomes active. The gateway device specialises in monitoring the instrumentation and operating state of the connected DSE control module.
- SMTP client email.
- Automatic MIB file generation to ease system integration.
- Single DSE892 gateways can be connected to multiple control modules.
- SNMP SET to change controller mode.
- SNMP GET for instrumentation.
- SNMP V2 compatibility
OVERALL SIZE
85 mm x 149 mm x 51 mm (3.3” x 5.8” x 2.0”)
WEIGHT
0.24kg
PRODUCT VARIANTS
0892-01 - 892 Simple Management Network Protocol (SMNP) Gateway
