DSE BC2410Ei-01 Battery Charger Original
- AC SUPPLY: VOLTAGE RANGE 90 V to 305 V (L to N)
- FREQUENCY RANGE: 48 Hz to 64 Hz (L to N)
- DC OUTPUT: 10 A DC at 12 V & 24 V DC
- RIPPLE AND NOISE: <1%
- EFFICIENCY: >86%
- REGULATION: LINE <0.5%
- LOAD: 2%
- Intelligent two, three and four stage charging profiles
- Configurable charging curves
- 12 V / 24 V auto voltage detection for multiple battery types
- Short-circuit & reverse polarity protection
- Option to be used as a battery charger, power supply or both
- Automatic / manual boost and storage charge functionality to help maintain battery condition
Call for Quote for international purchases!
Price range: $650.99 through $763.99

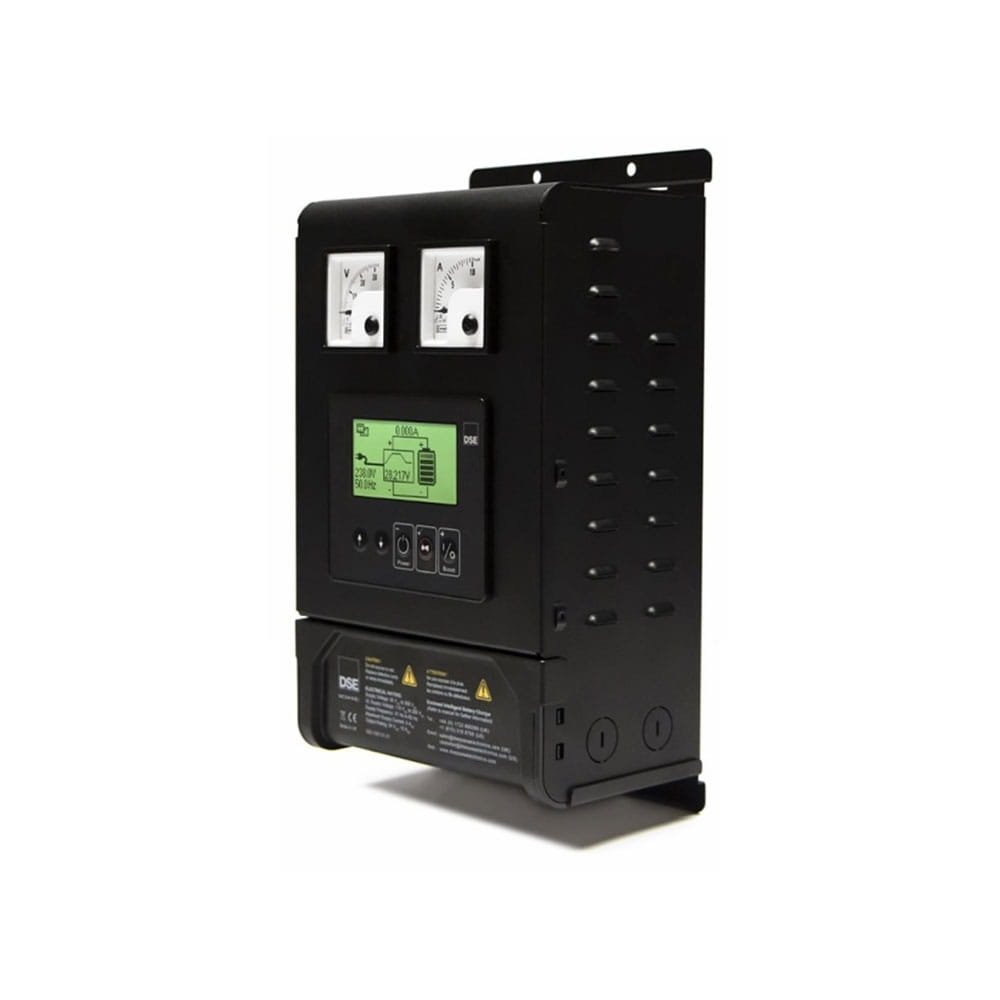

The DSEBC2410Ei is an enclosed intelligent battery charger that supports multiple battery types across a wide range of applications. Its advanced technology automatically detects system settings and charging profiles, including cell voltage and boost voltage, to deliver high-level charging performance.

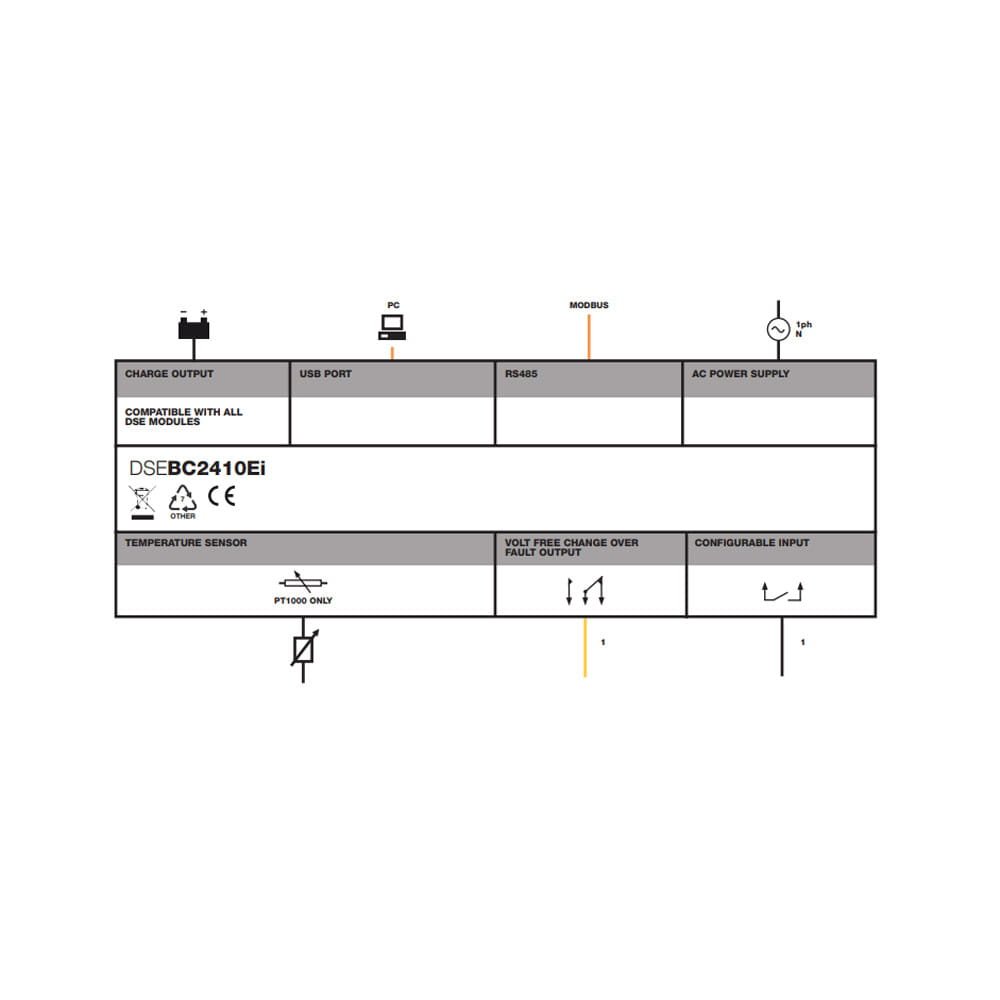

It also offers high-level features such as Modbus RS485 external system integration, remote temperature compensation, short-circuit and reverse-polarity protection, multi-stage charging regimes, configurable charging curves, and enhanced battery-life optimization.

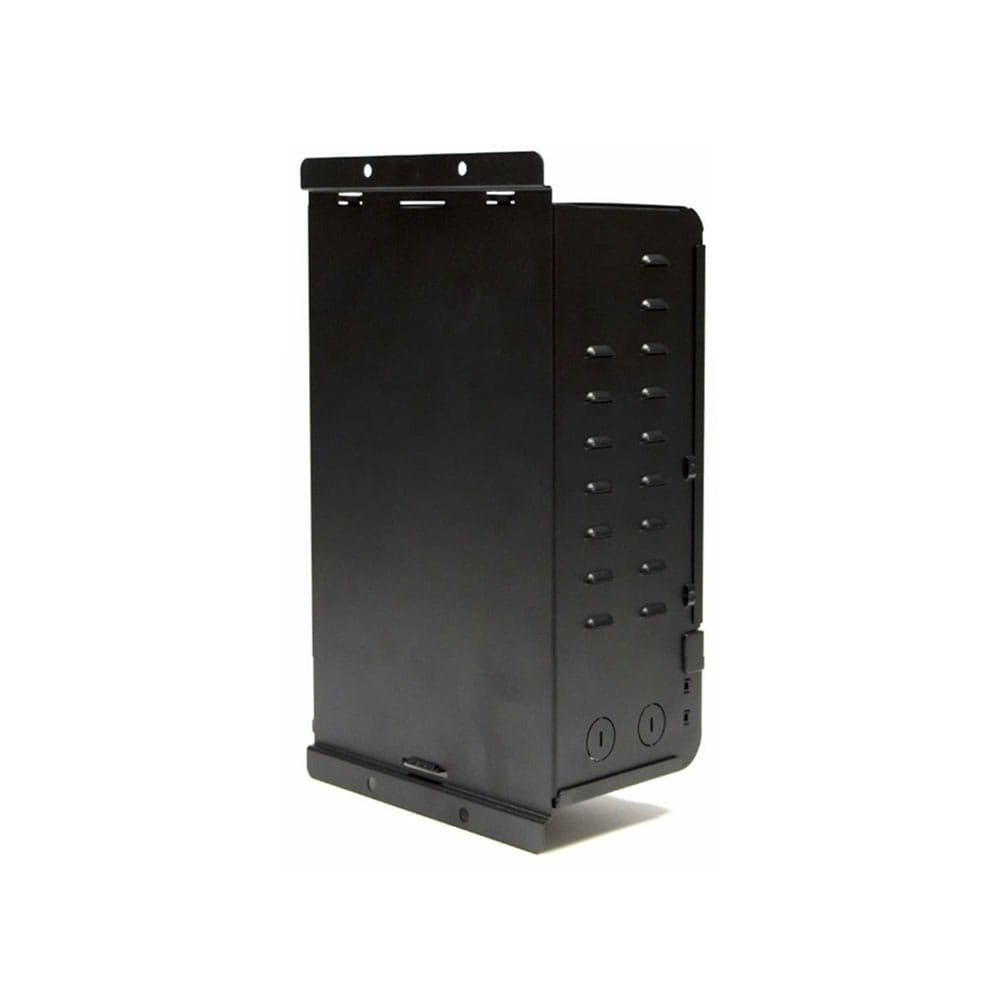

OVERALL SIZE
170 mm x 305 mm x 116 mm (6.7” x 12.0” x 4.6”)
WEIGHT
2.3kg
PRODUCT VARIANTS

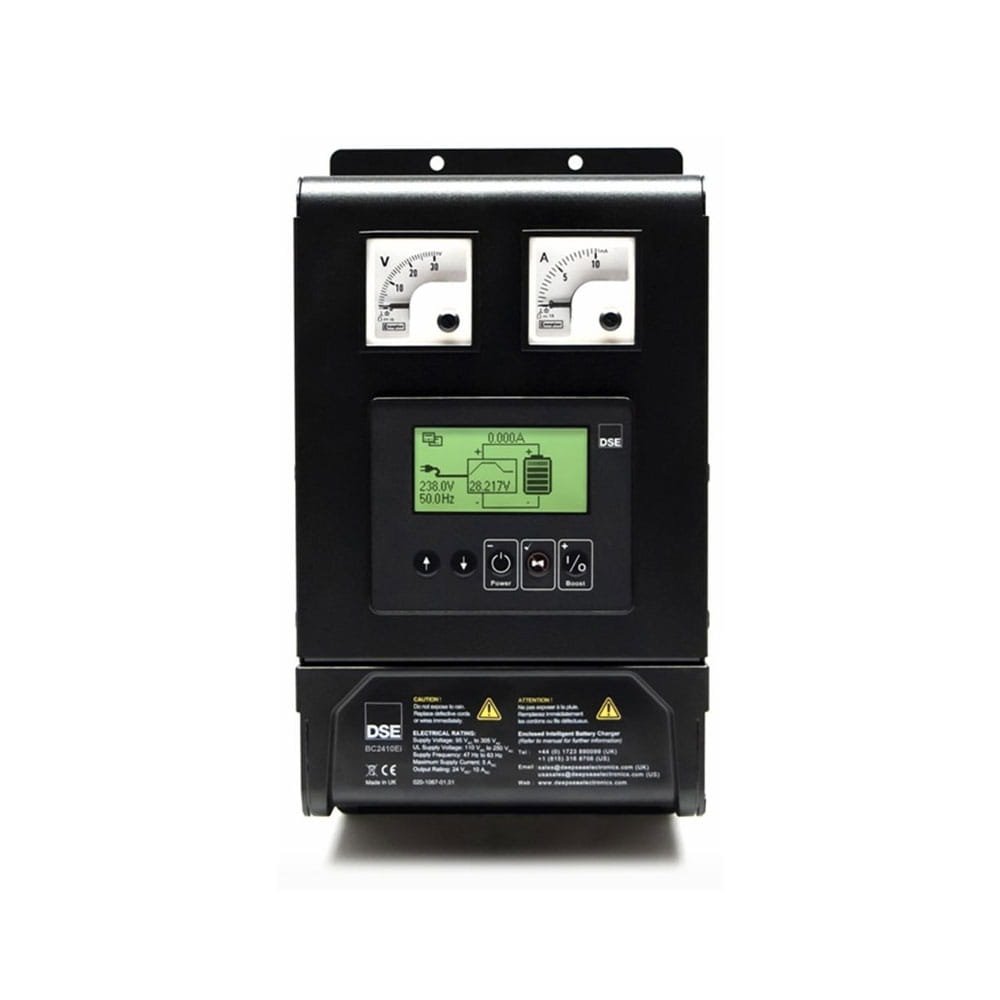

BC2410Ei-01 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Display)
BC2410Ei-02 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Display & Meters)
BC2410Ei-03 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Meters)
