DSE 9150-00 Battery Charger Original
- AC SUPPLY
VOLTAGE RANGE: 90 V to 250 V (L-N) - DC OUTPUT: 5 A DC 12 V DC at 13.7 V DC
- RIPPLE AND NOISE: <1%
- EFFICIENCY: >80%
- REGULATION: LINE <0.001% Vo
- LOAD: 1% Vo
- Constant current/constant voltage.
- Reverse polarity, short-circuit and current limiting protection.
- Cell charge boost and equalizing.
- 80% operating efficiency.
- Dedicated boost connection terminals.
- Chargers can be linked together.
Call for Quote for international purchases!
$108.99
SKU: DSE9150-00
Categories: 12 Volt

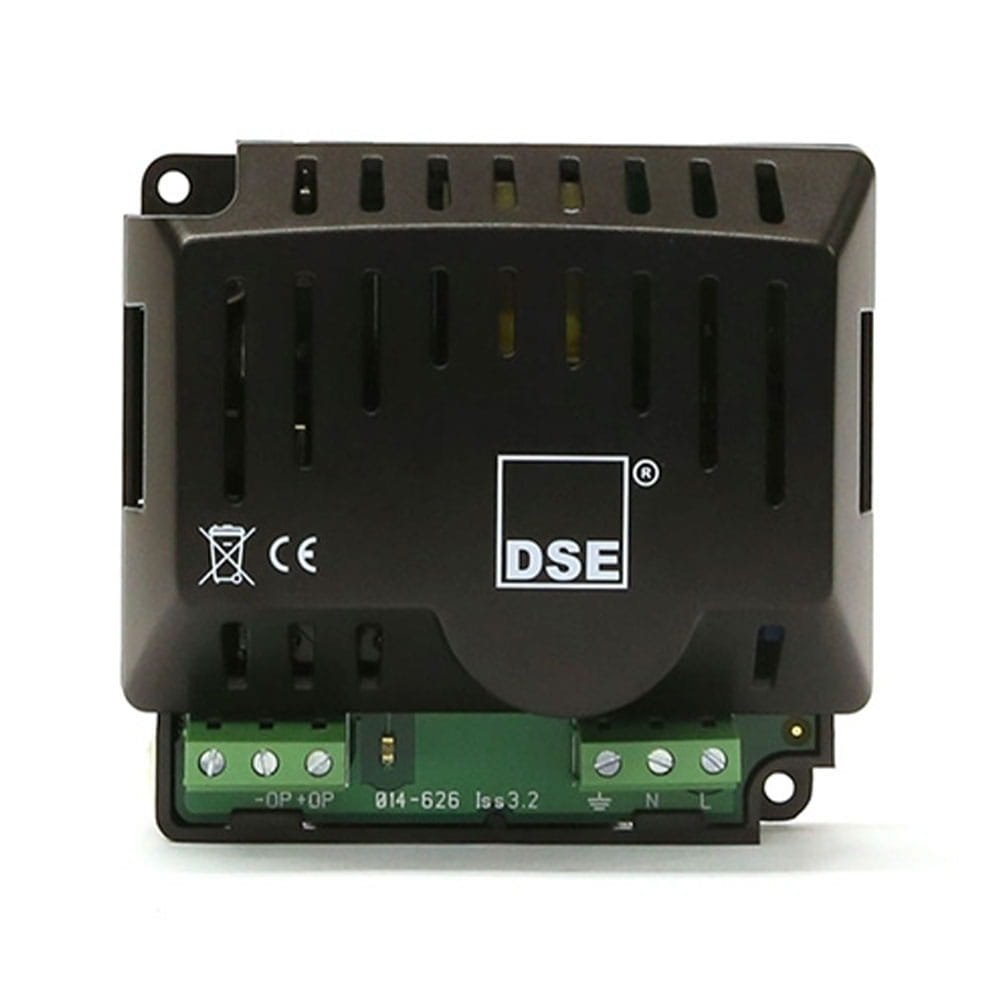

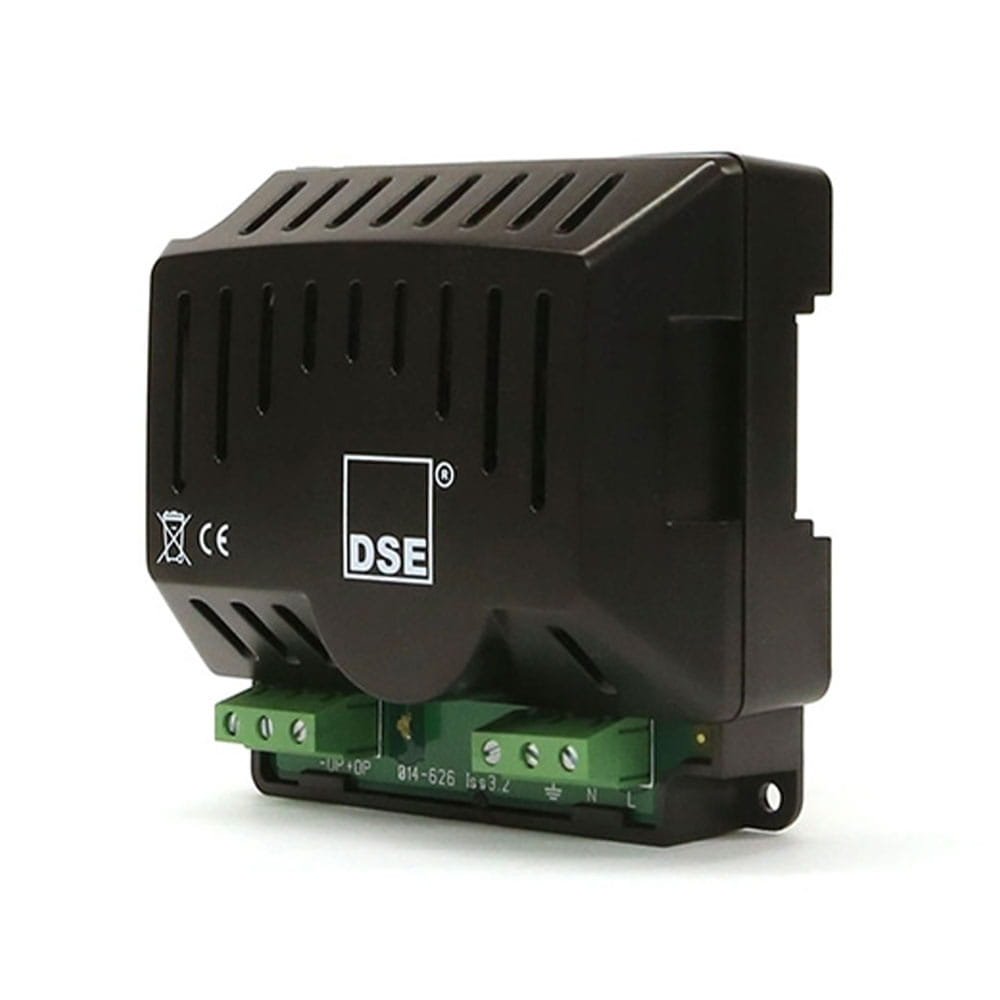

The DSE9150 12-volt 3 amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections.
OVERALL SIZE
108 mm x 101 mm x 49 mm (4.2” x 4.0” x 1.9”)
WEIGHT
0.16kg
PRODUCT VARIANTS
9150-00 - 12 volt 3 amp Compact Battery Charger (90v-265v 50/60Hz)
