DSE 9470-01 Battery Charger Original
- AC SUPPLY
- MINIMUM SUPPLY VOLTAGE: 90 VAC with Charge Output De-rate / 110 VAC without Charge Output De-rate
- MAXIMUM SUPPLY VOLTAGE: 305 VAC
- UL VOLTAGE APPROVAL RATING: USA Only (9470-01) 100 – 305 VAC
- USA & Canada (9470-A4) 110 – 150 VAC
- FREQUENCY RANGE: 48 Hz to 64 Hz (L-N)
- CHARGE OUTPUT
- VOLTAGE RANGE: Configured as 12 V: 12 VDC to 15.5 VDC / Configured as 24 V: 24 VDC to 31 VDC
- VOLTAGE RIPPLE AND NOISE: Less than 1% of Configured Boost Voltage
- VOLTAGE LOAD REGULATION: 2 %
Call for Quote for international purchases!
$327.99
SKU: DSE9470-01
Categories: 24 Volt, Intelligent

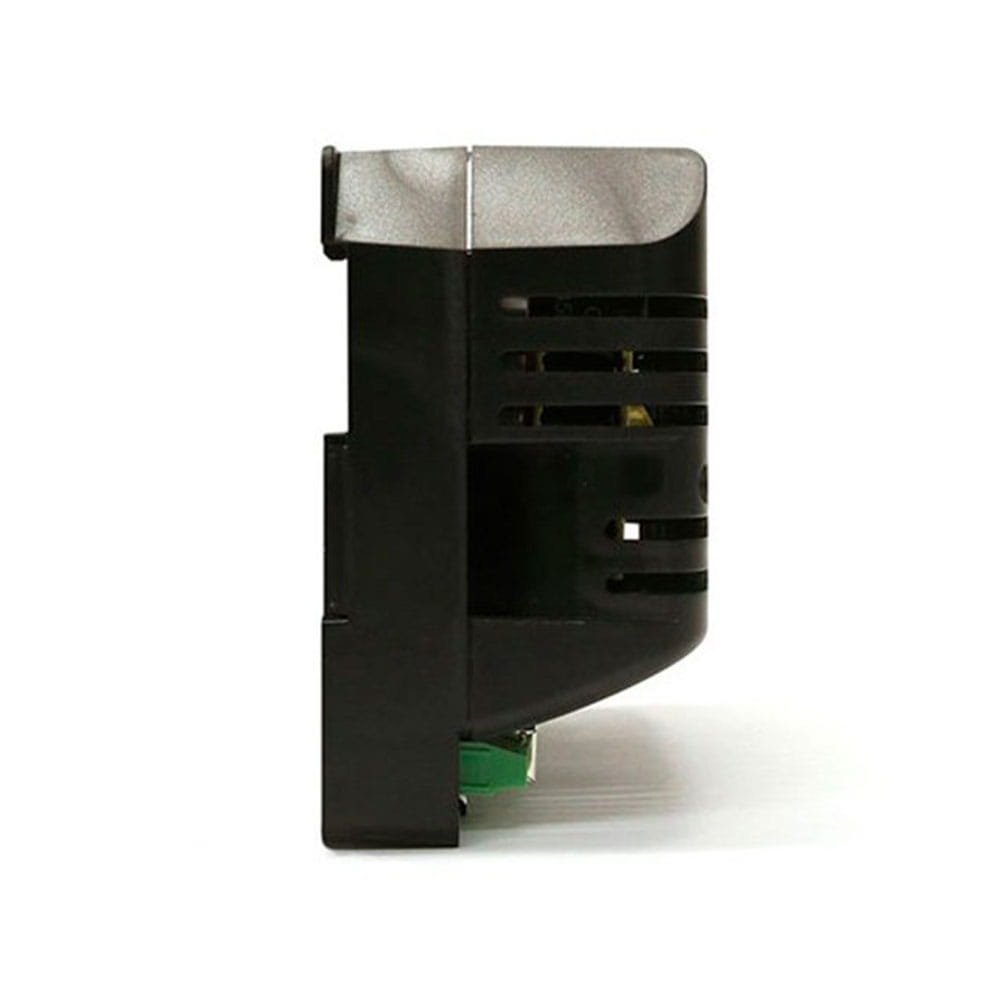

The DSE9470 MKII is an intelligent 12/24-volt, 10 amp switched-mode battery charger that has fully programmable charging curves, making it suitable for multiple different battery chemistry types. The battery charger is programmed using the DSE Configuration Suite PC Software and is mounted direct to a chassis or onto DIN rail for ease of integration and installation. There are also three integrated LEDs mounted to the battery charger to indicate current charging status and fault conditions.
- UL Recognised.
- Fully configurable two three or four stage charging profiles
- Automatic and / or manual boots and storage charge functions
- Periodic automatic battery detection test with configurable timers
- Status and fault indication provided by three multi-colour LEDs.
- PC configuration using DSE Configuration Suite
OVERALL SIZE
70 mm x 200 mm x 130 mm (2.7” x 7.9” x 5.1”)
WEIGHT
0.75kg
PRODUCT VARIANTS
9470-01 - 24 V 10 A Intelligent Battery Charger
