DSE 9474-01 Battery Charger Original
- AC SUPPLY
VOLTAGE RANGE: 90 V to 305 V (L-N) - FREQUENCY RANGE: 48 Hz to 64 Hz (L-N)
- DC OUTPUT: DSE9474 DC OUTPUT: 30 A DC 24 V DC
- RIPPLE AND NOISE: 1%
- EFFICIENCY: >90%
- REGULATION LINE: <0.5%
- LOAD: 1%
- Intelligent three & four stage charging profiles.
- Low output ripple/excellent line regulation.
- AC input under/over voltage.
- Optional battery temperature compensation using a PT1000 temperature sensor.
- External system integration via MODBUS RTU using RS485.
- 90% operating efficiency.
- External remote display option (DSE2541).
Call for Quote for international purchases!
$944.99
SKU: 9474-01
Categories: 24 Volt, Intelligent

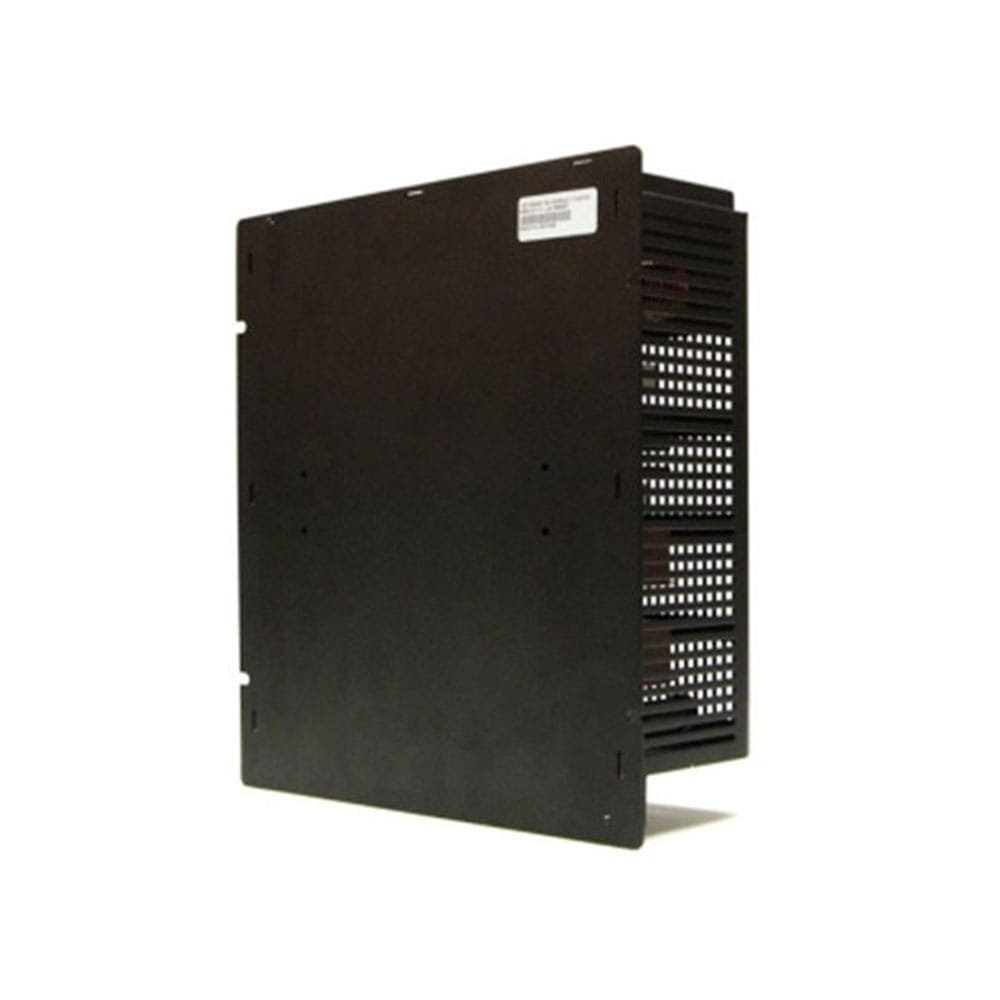

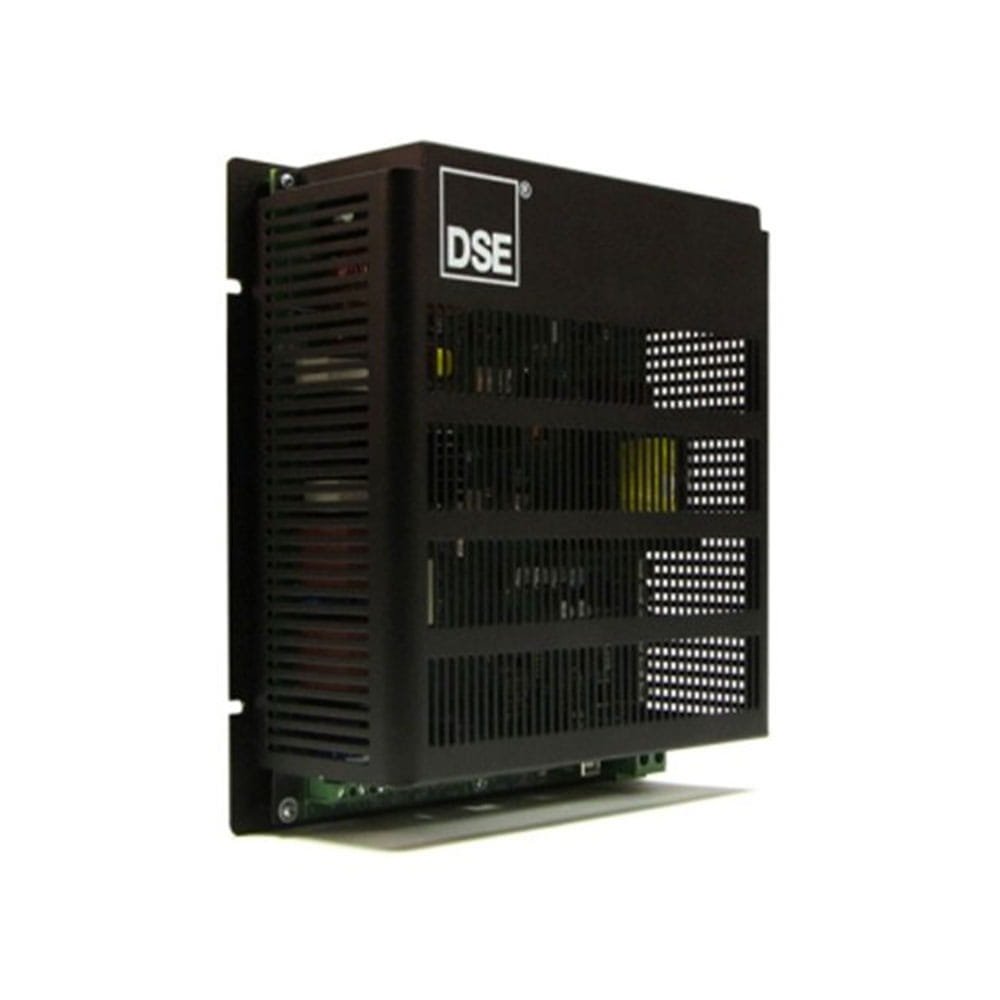

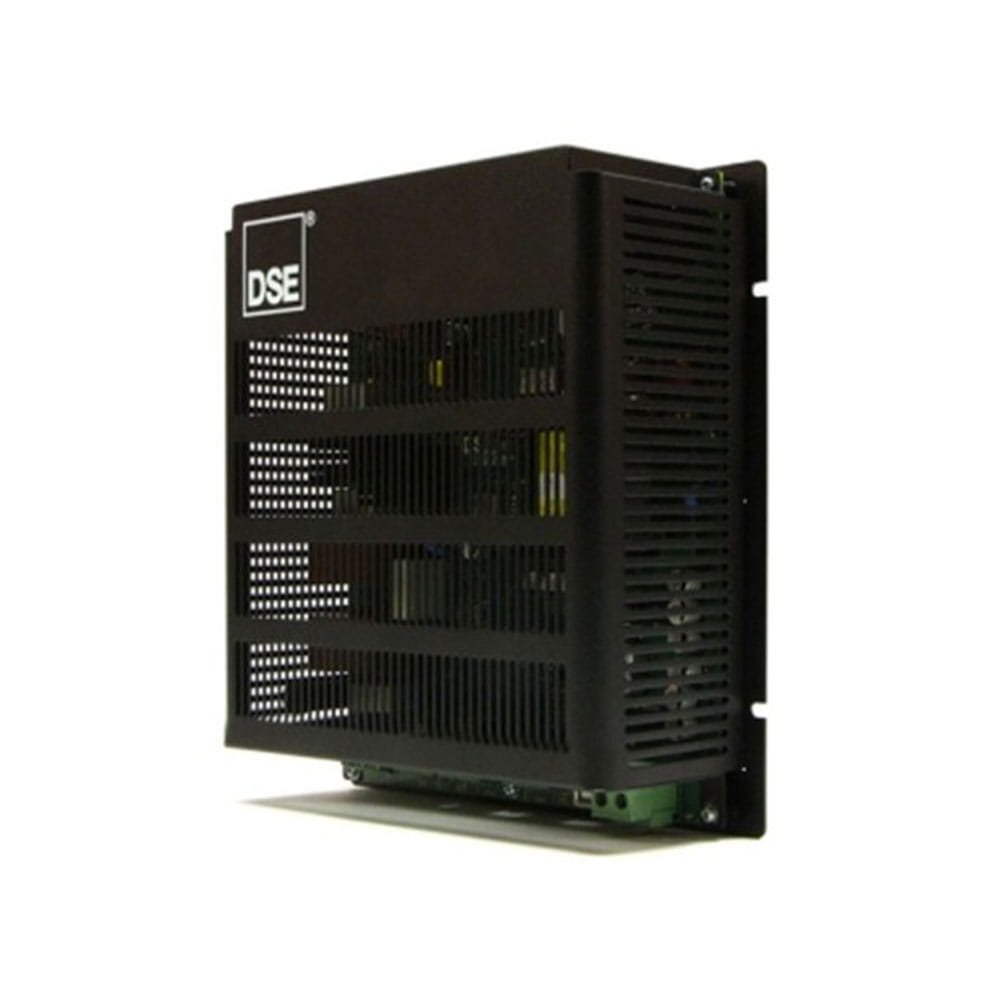

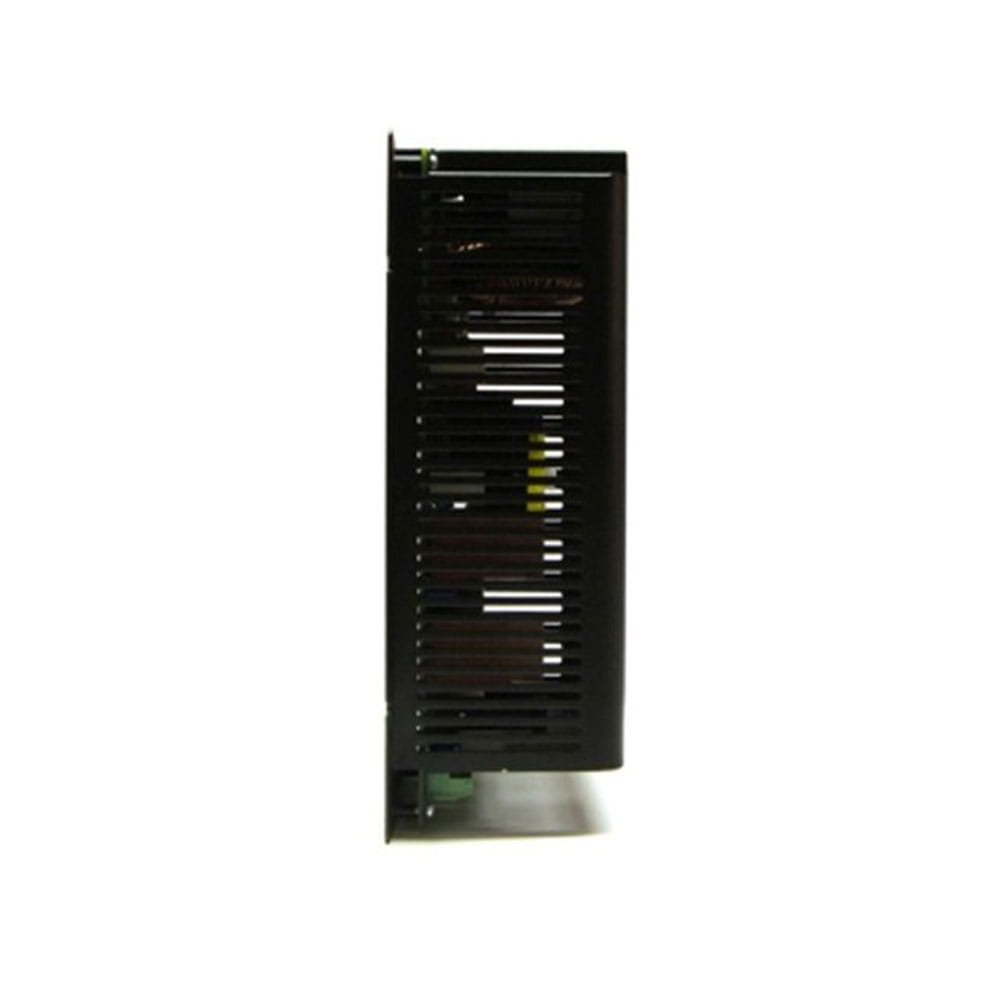

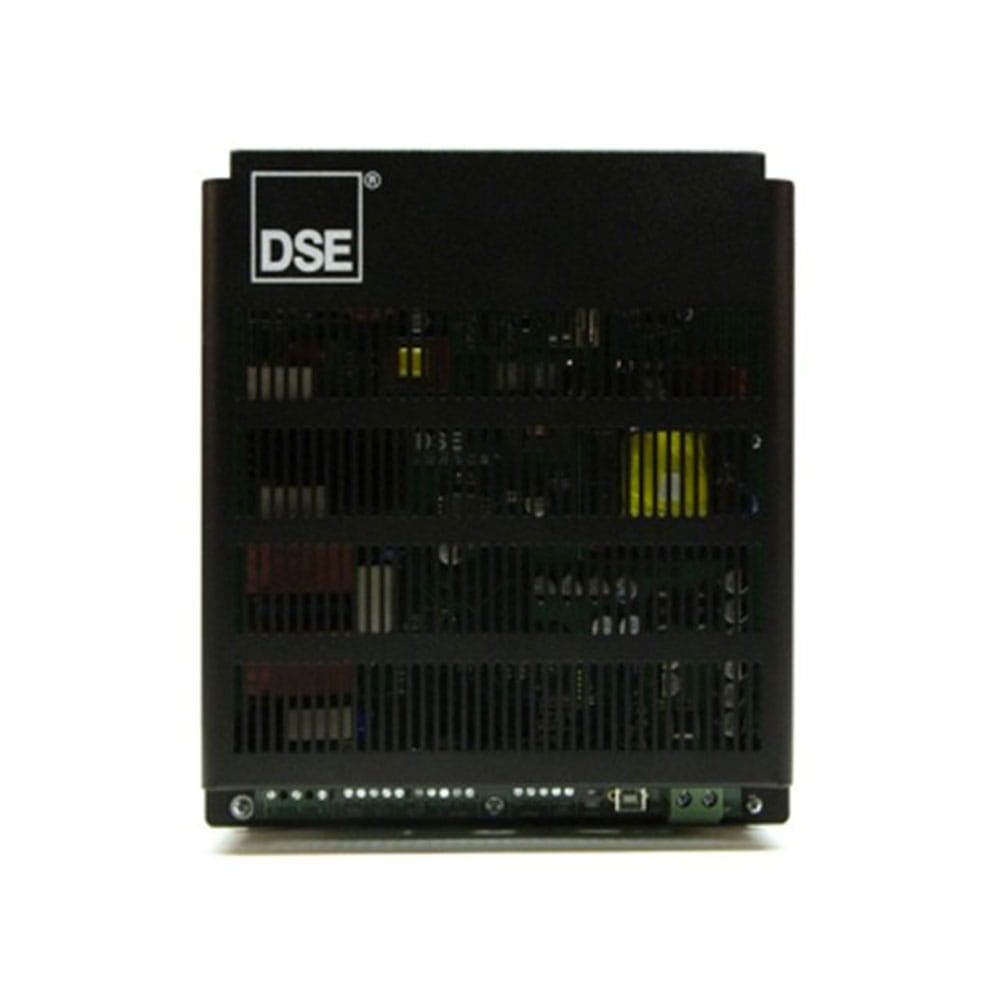

The DSE9474 is an intelligent 24-volt, 30 amp CAN enabled switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
OVERALL SIZE
240 mm x 263 mm x 89 mm (9.4” x 10.4” x 3.5”)
WEIGHT
2.5kg
PRODUCT VARIANTS
9474-01 - 24 volt 30 amp Intelligent Battery Charger (90-305v 50/60Hz)
