DSE 9476-01 Battery Charger Original
- AC SUPPLY
VOLTAGE RANGE: 95 V to 305 V (L-N) - FREQUENCY RANGE: 47 Hz to 63 Hz (L-N)
- DC OUTPUT: DSE9476 OUTPUT 20 A DC at 24 V DC
- RIPPLE AND NOISE: <1%
- EFFICIENCY: >92%
- REGULATION LINE: <0.5%
- LOAD: 1%
- Intelligent two, three & four stage charging profiles.
- Can be used as a battery charger, power supply or both at the same time.
- Digital microprocessor technology.
- 570W max power output.
- Active power factor correction 0.99 at full load (low line).
- External remote display option (DSE2541).
Call for Quote for international purchases!
$782.42
SKU: 9476-01
Categories: 24 Volt, Intelligent
The DSE9476 intelligent battery charger can be programmed for different charging curves to maximise the life of the battery.

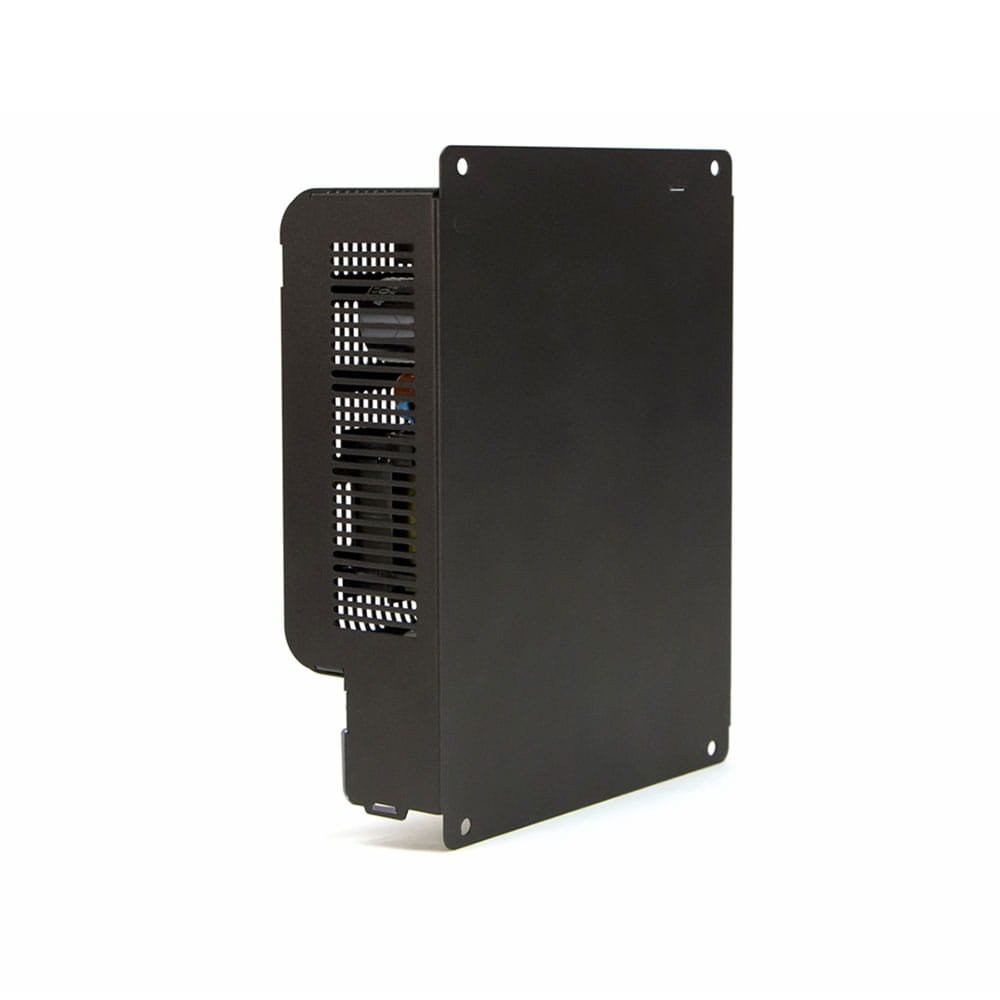

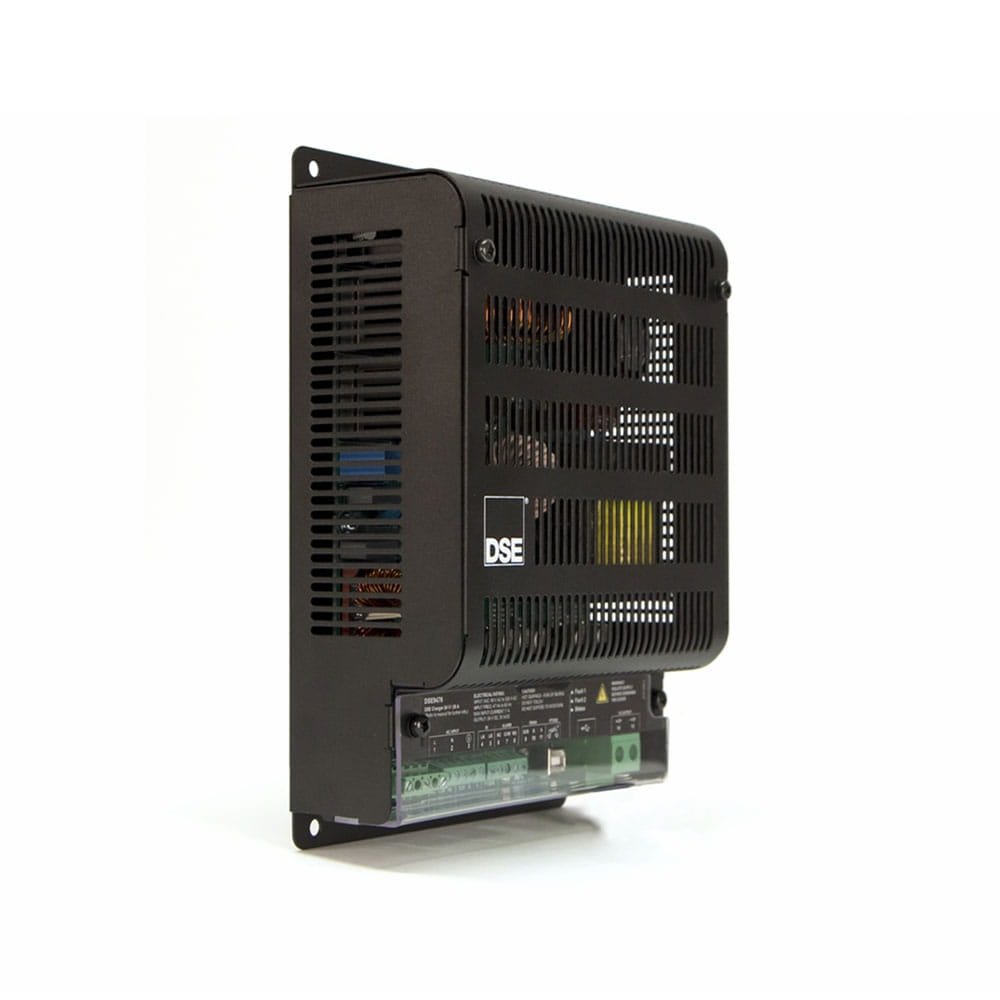

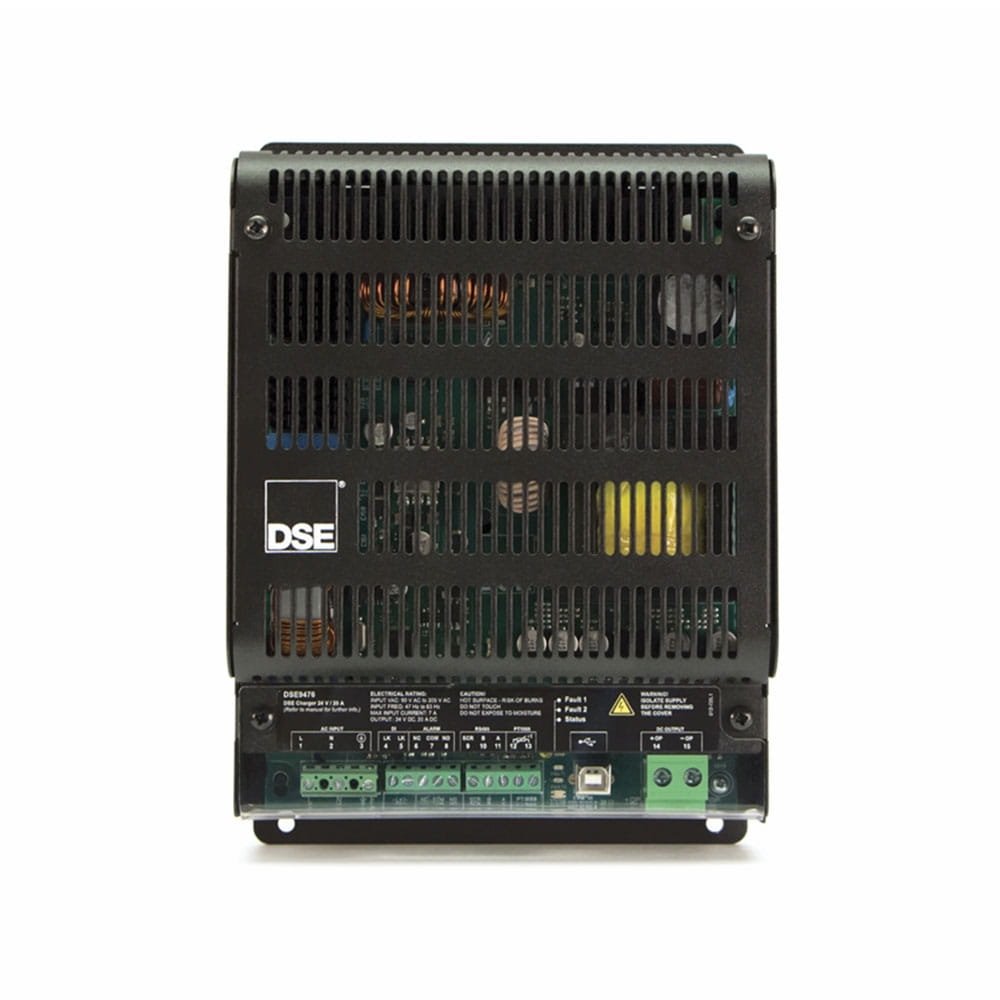

The DSE9476 is programmed using the user-friendly DSE Configuration Suite PC software. The charger is mounted to the chassis using the fixing holes that are built into the case. The chargers’ stylish design includes three coloured LEDs to indicate charging status and fault conditions.
OVERALL SIZE
183 mm x 233 mm x 76 mm (7.2” x 9.2” x 3.0”)
WEIGHT
1.8kg
PRODUCT VARIANTS
9476-01 - 24 V 20 A Intelligent Battery Charger
