DSE 2541-02 Battery Charger Original
- DC SUPPLY: CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous
- MAXIMUM OPERATING CURRENT: 80 mA at 12 V, 75 mA at 24 V
- MAXIMUM STANDBY CURRENT: 65 mA at 12 V, 60 mA at 24 V
- FAULT OUTPUT: 3 A at 30 V DC volt-free relay
- STORAGE TEMPERATURE RANGE: -40 °C to +85 °C / -40 °F to +185 °F
- OPERATING TEMPERATURE RANGE: -30°C to +70°C / -22 °F to +158 °F
- User-friendly set-up and button layout for ease of use
- Multiple parameters are displayed simultaneously which are clearly displayed on the large back-lit icon display
- Compatible with a wide range of DSE battery chargers
- LCD alarm indication
- 1 volt-free change-over fault output
Call for Quote for international purchases!
$268.99
SKU: DSE2541
Categories: Enclosed Overview

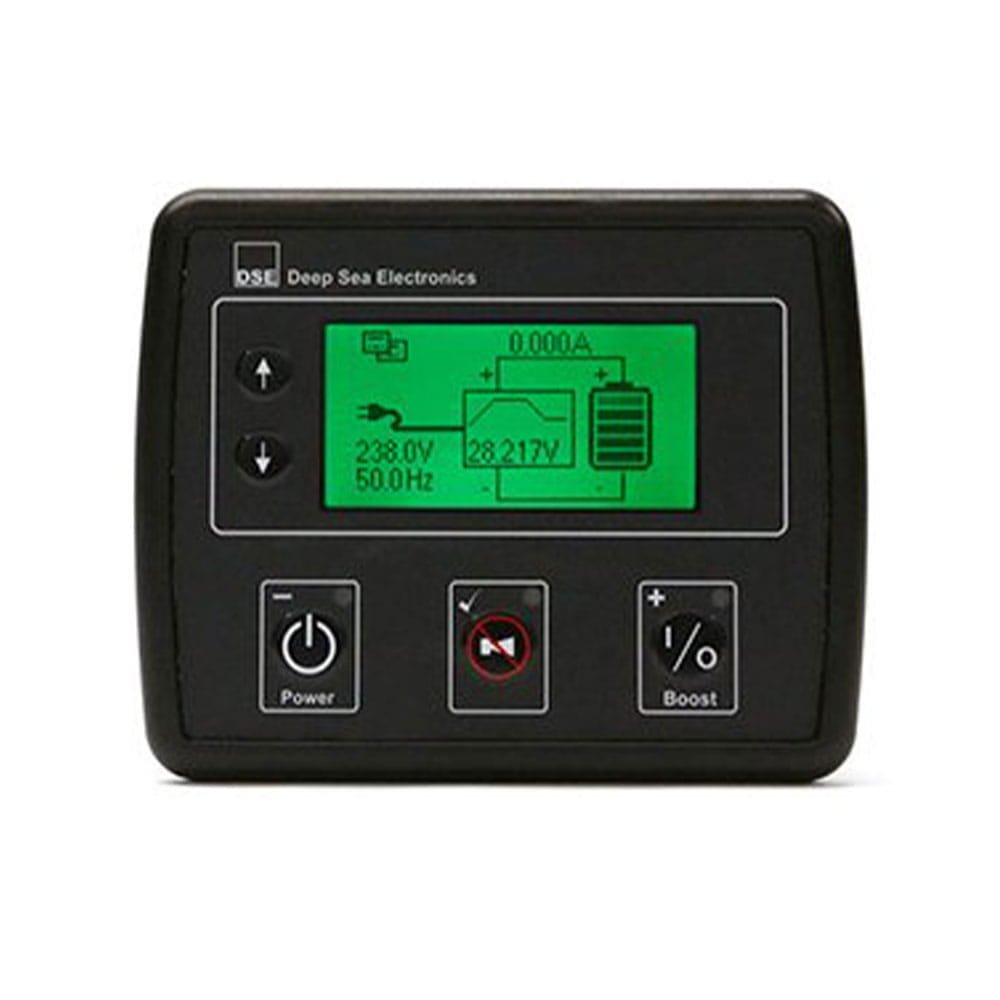

The DSE2541 Remote Battery Charger Display Module has been designed to work with all intelligent and enclosed battery chargers.
The module displays information to the operator on charge output, charge cycle, mains (utility) supply status and indicates when fault conditions are present.
OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.7”)
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6” x 3.6”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.24kg
PRODUCT VARIANTS
2541-02 - 2541 Remote Battery Charger Display Module
