Original DSE3110 | Manual & Auto Start Control Module
Limit Stock
OVERALL SIZE
98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1 ” x 2.7″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.16kg
PRODUCT VARIANTS
3110-01 – Manual & Auto Start Control Module (Mpu)
3110-02 – Manual & Auto Start Control Module (Can)
3110-31 – Manual & Auto Start Control Module (Mpu) UL CC
98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1 ” x 2.7″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.16kg
PRODUCT VARIANTS
3110-01 – Manual & Auto Start Control Module (Mpu)
3110-02 – Manual & Auto Start Control Module (Can)
3110-31 – Manual & Auto Start Control Module (Mpu) UL CC
Call for Quote for international purchases!
$295.99
SKU: DSE3110
Categories: Manual & Auto Start
Tags:Control Modules, DSE

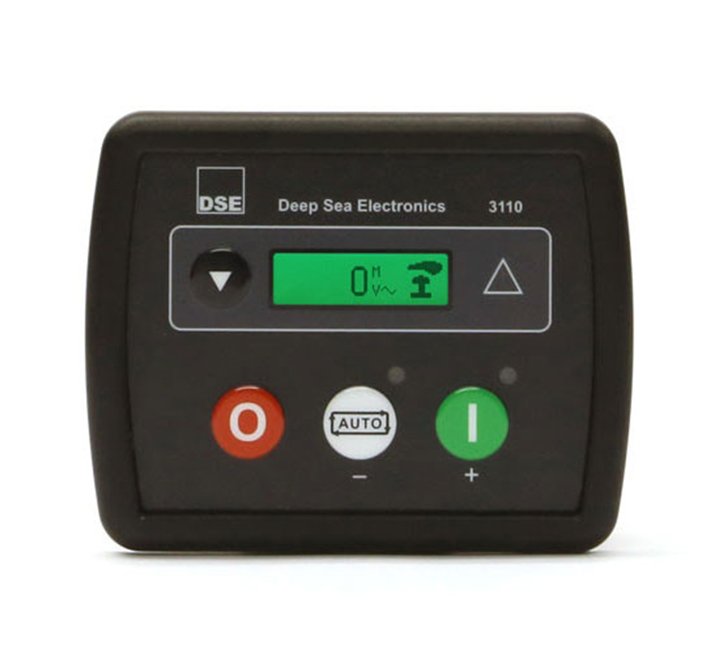

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
Key Features
- Standard engine and electronic CAN bus variants.
- Configurable inputs/outputs (6 digital inputs/4 outputs – 2 outputs configurable on magnetic pick-up variant).
- Remote start input.
- Comprehensive display parameters.
- Engine pre-heat.
- Configurable timers & alarms.
- Large back-lit icon LCD display.
- DSE Configuration Suite PC Software.
Key Benefits
- Instant integration with both standard and modern electronically controlled engines.
- Provides multiple installation options.
- Provides a simple connection to operate the generator from a remote location.
