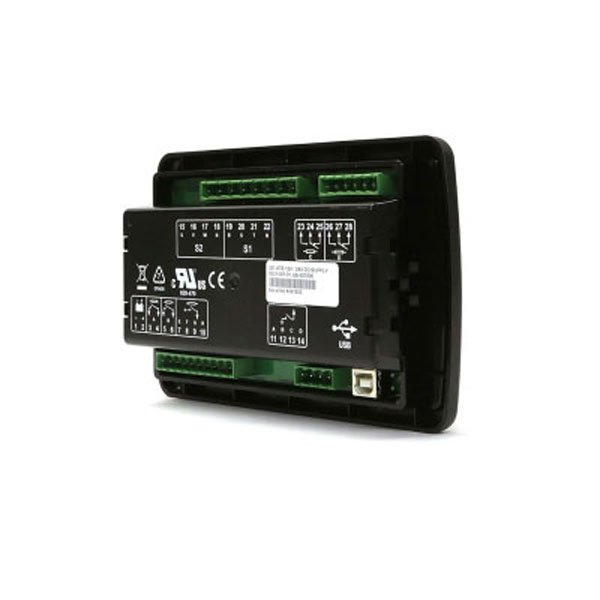

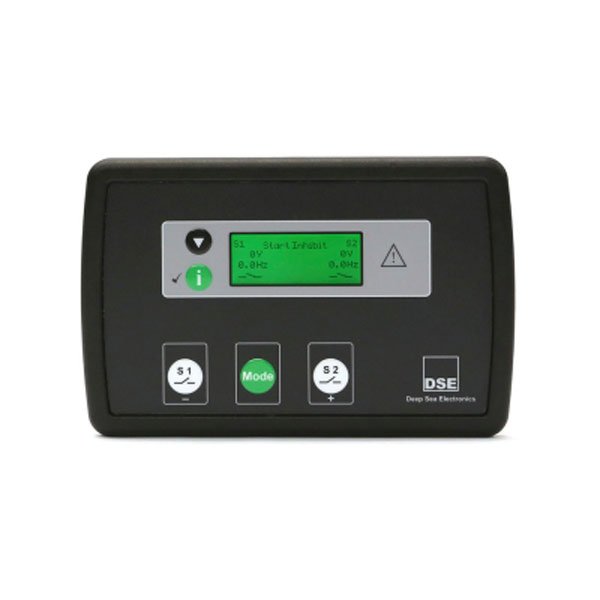

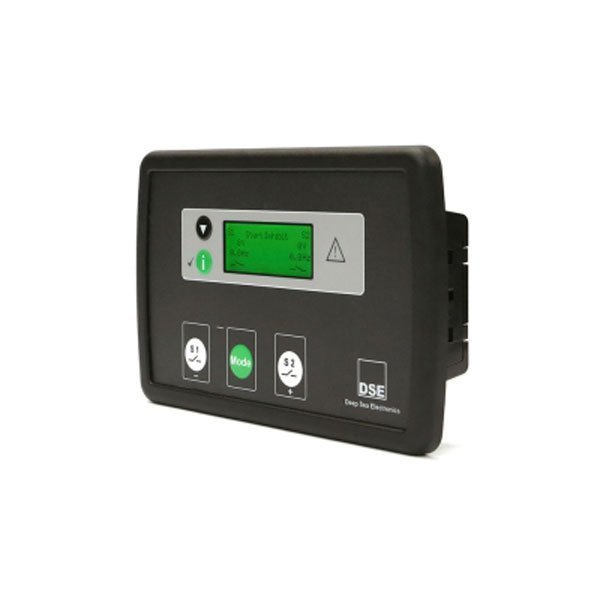

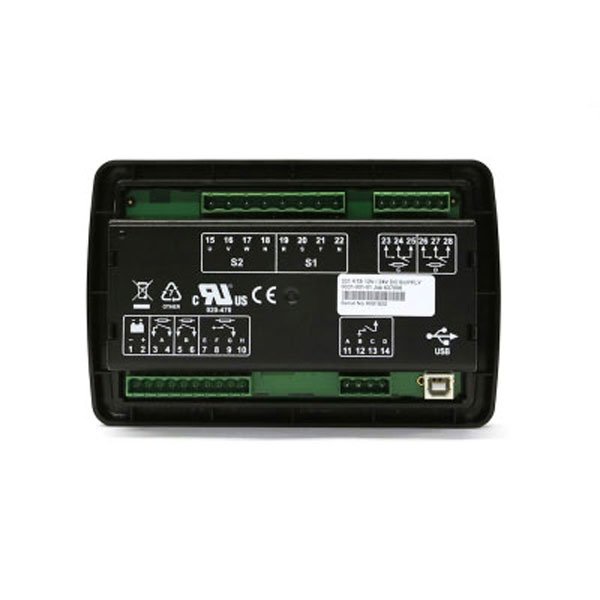

Original DSE331 | Auto Transfer Switch Control Module
Limit Stock
OVERALL SIZE
180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
PRODUCT VARIANTS
0331-01 – 331 Auto Transfer Switch Control Module – 12/24 Volt DC Supply (020-313 gasket not included)
180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
PRODUCT VARIANTS
0331-01 – 331 Auto Transfer Switch Control Module – 12/24 Volt DC Supply (020-313 gasket not included)
Call for Quote for international purchases!
$432.99
SKU: DSE331-01
Categories: Auto Transfer Switch
Tags:Control Modules, DSE
[vc_row][vc_column][vc_column_text]

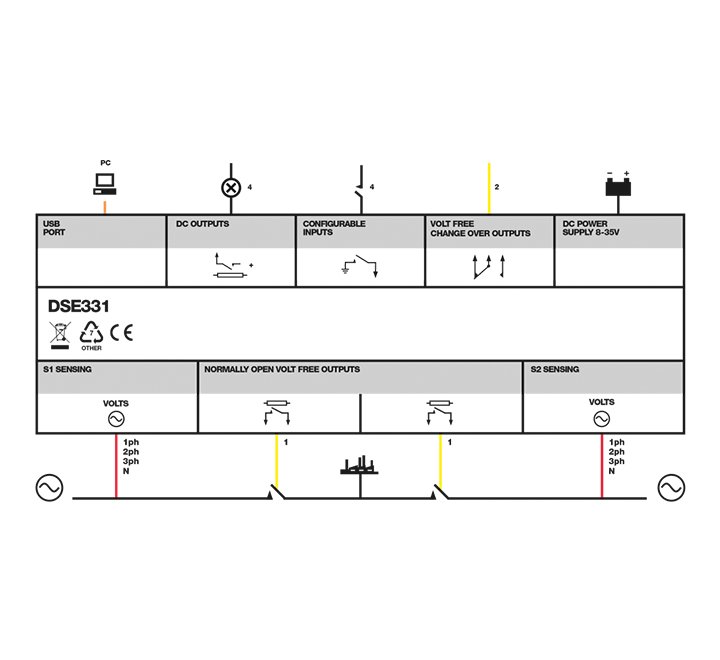

The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
