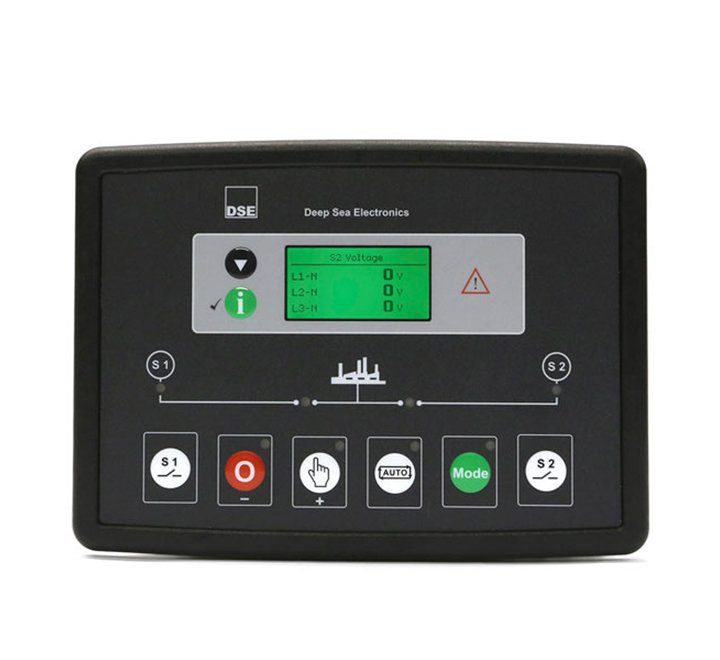

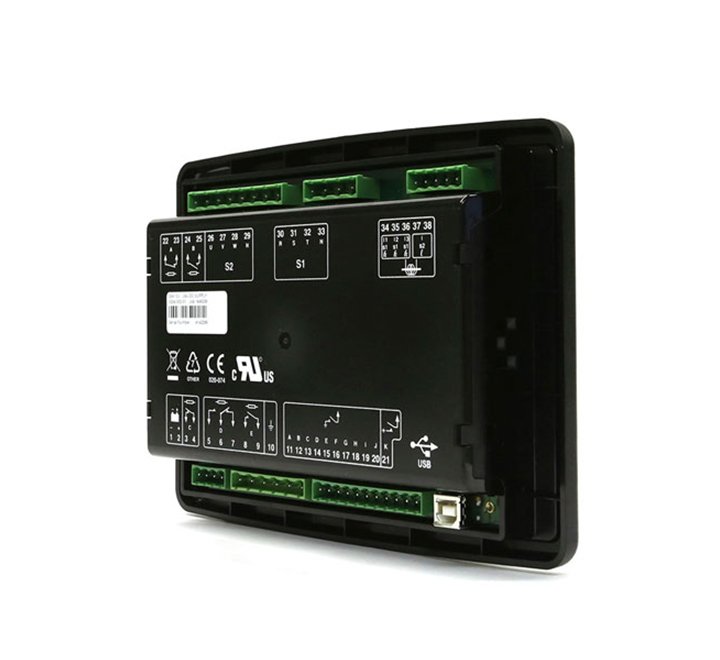

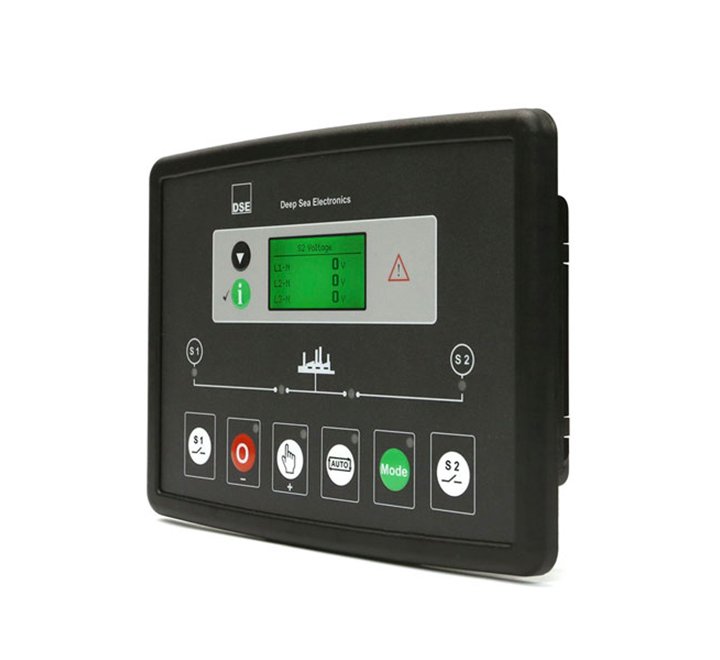

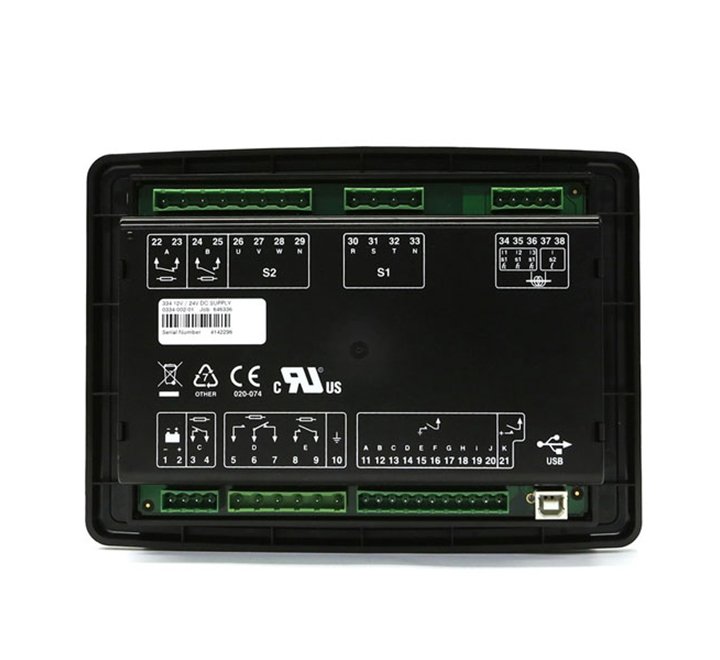

Original DSE334 | Auto Transfer Switch Control Module
OVERALL SIZE
215 mm x 158 mm x 42 mm (8.5” x 6.2” x 1.6”)
PANEL CUTOUT SIZE
182 mm x 137 mm (7.2” x 5.4”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.52kg
PRODUCT VARIANTS
0334-01 – 334 Auto Transfer Switch Control Module – 12/24 Volt DC Supply
215 mm x 158 mm x 42 mm (8.5” x 6.2” x 1.6”)
PANEL CUTOUT SIZE
182 mm x 137 mm (7.2” x 5.4”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.52kg
PRODUCT VARIANTS
0334-01 – 334 Auto Transfer Switch Control Module – 12/24 Volt DC Supply
Call for Quote for international purchases!
$567.99
SKU: DSE0334
Categories: Auto Transfer Switch
Tags:Control Modules, DSE
[vc_row][vc_column][vc_column_text]

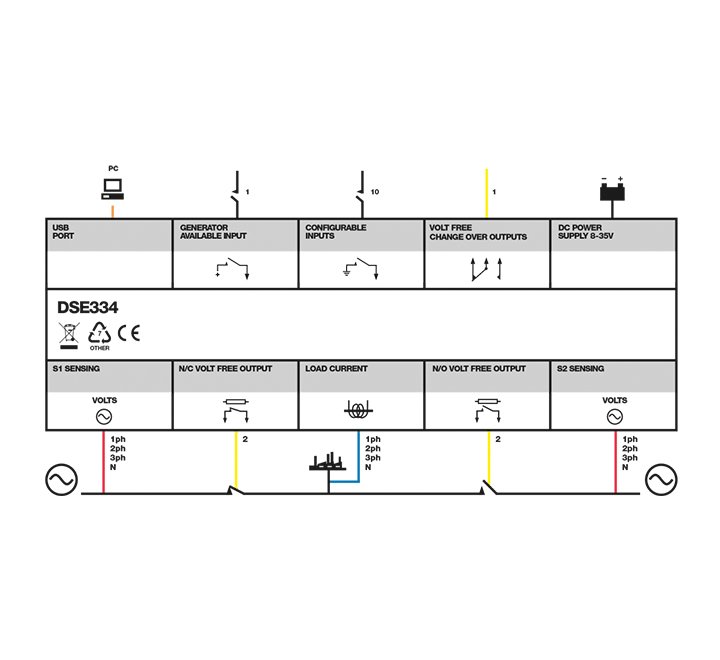

The DSE334 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
