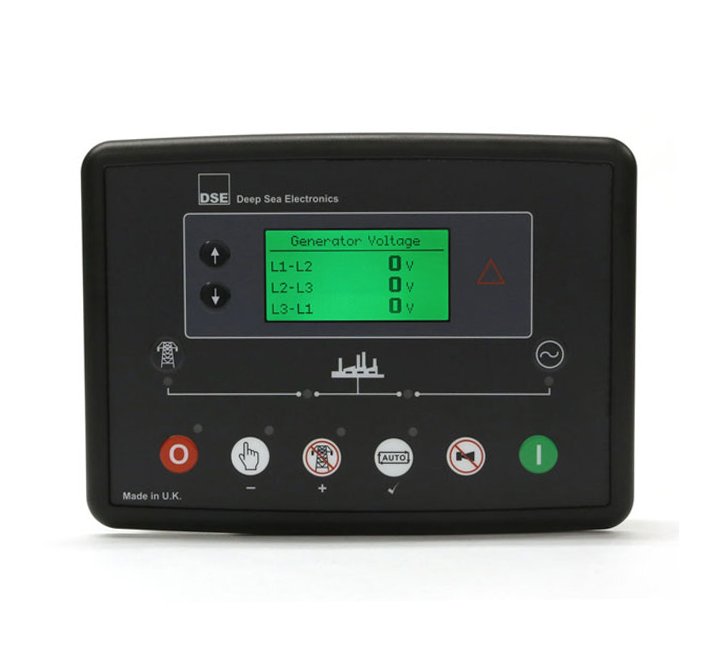

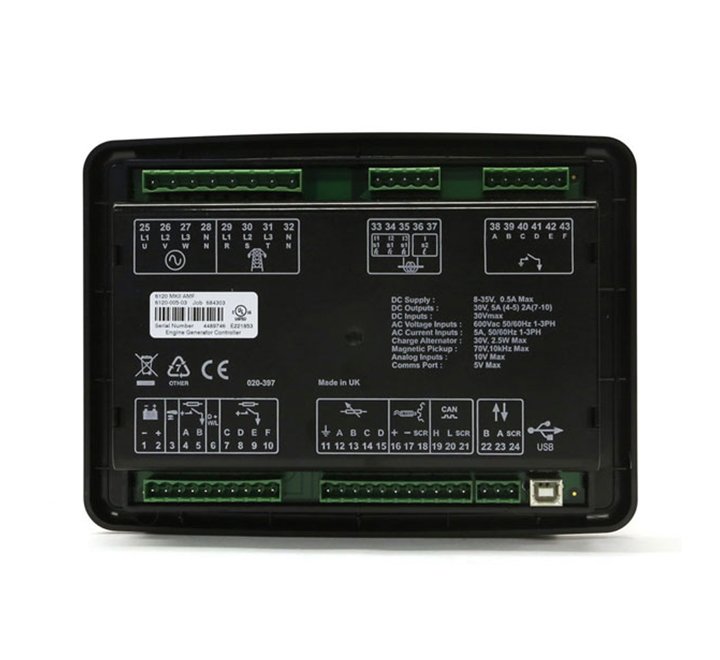

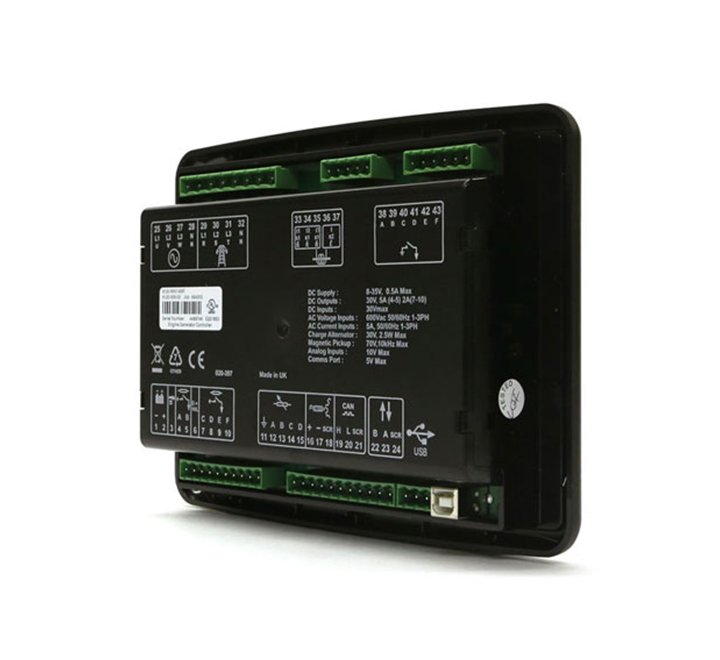

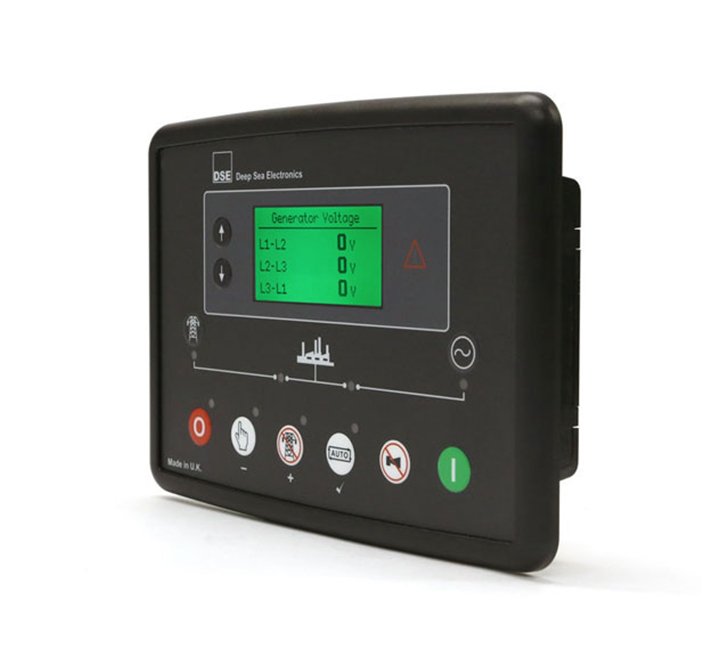

DSE6020MKII | Auto Mains Failure Control Module
OVERALL SIZE
216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)
PANEL CUTOUT SIZE
184 mm x 137 mm (7.2″ x 5.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.48kg
PRODUCT VARIANTS
6020-03 – MKII Auto Mains (Utility) Failure Control Module
Call for Quote for international purchases!
$540.99
SKU: DSE6020-03
Categories: Auto Mains Failure
The DSE6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained
during cranking.
FEATURES
- Support for 0-10 V & 4-20mA oil pressure senders.
- Large back-lit icon LCD display.
- Heated display option.
- 3-phase generator sensing.
- 3-phase generator and mains (utility) sensing.
- Breaker control buttons on front fascia.
- Generator & load power monitoring (kW, kV A, kV Ar, pf).
- Generator overload protection (kW).
- CAN, MPU & alternator speed sensing (selectable depending on engine type).
- Tier 4 CAN engine support.
- Configurable event log (50).
- DSE Configuration Suite PC Software.
- Fuel and start outputs (configurable on CAN).
- Engine maintenance alarms (3)
- Start on low battery.
