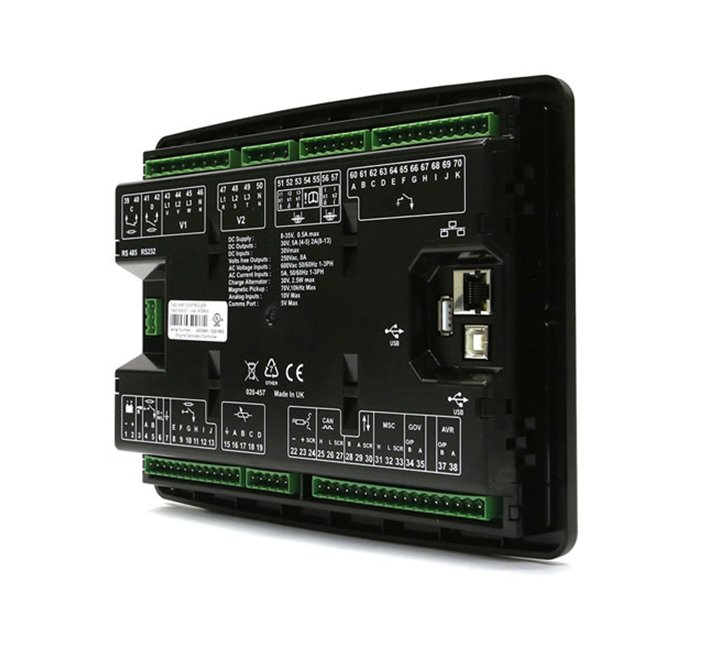

DSE7420 MKII | Auto Mains Failure Control Module
Limit Stock
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7420-03 – 7420 MKII Auto Mains (Utility) Failure Control Module
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7420-03 – 7420 MKII Auto Mains (Utility) Failure Control Module
Call for Quote for international purchases!
$798.99
SKU: DSE7420MKII
Categories: Auto Mains Failure
Tags:Control Modules, DSE
7420 DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
5 V for up to 1 Minute
CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
510 mA at 12 V, 240 mA at 24 V
MAXIMUM STANDBY CURRENT
330 mA at 12 V, 160 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
