Original DSEE800 | Engine Only Control Module
Limit Stock
OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7 ” x 6.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
E800-01 – E800 Engine Control Module
Call for Quote for international purchases!
$1,015.99
SKU: E800
Categories: Engine & Pump (E-Series)
Tags:Control Modules, DSE
[vc_row][vc_column][vc_column_text]

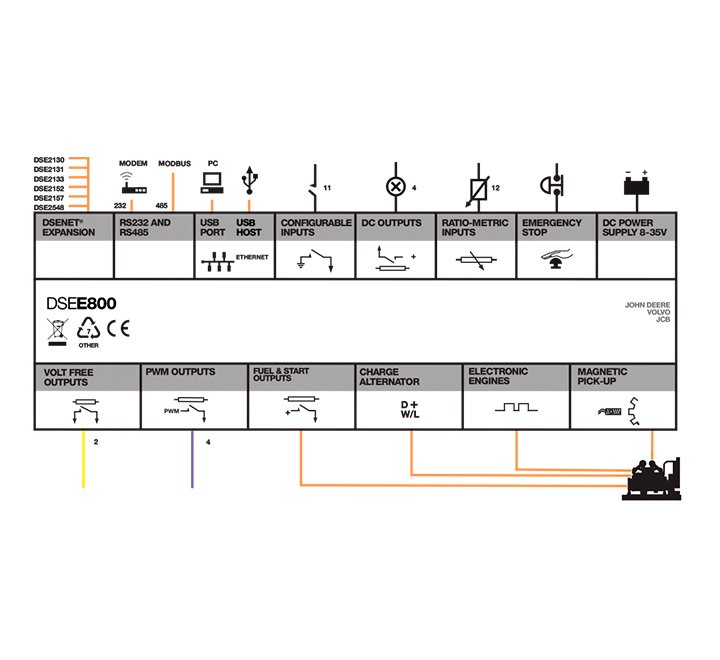

The DSEE800 engine control module provides flexible control and monitoring for engine-driven pumps, compressors, hydraulic power packs and off-highway machinery. It works with both electronic and mechanical diesel engines and offers exceptional flexibility through its integrated PLC editor, allowing users to match operating modes to their specific applications.
Comprehensive communication and system expansion options let users extend the system’s input/output capabilities and communicate across complex networks.
