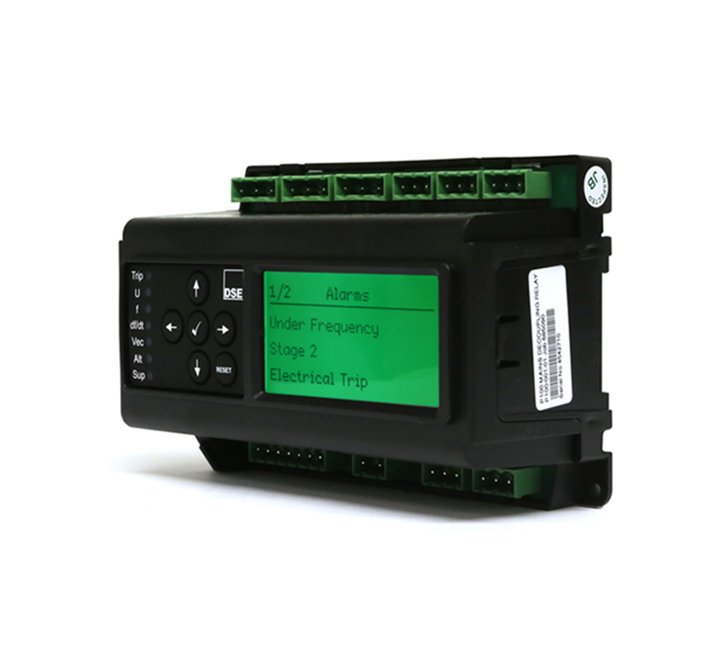

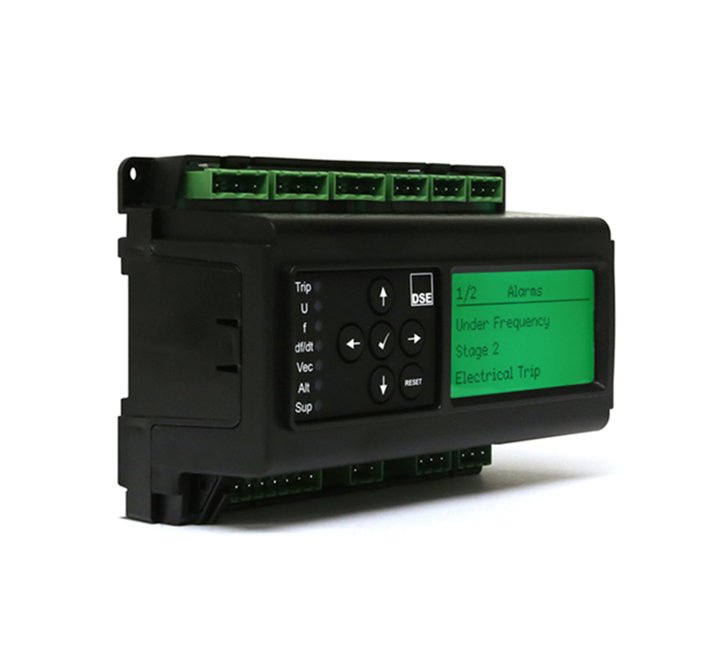

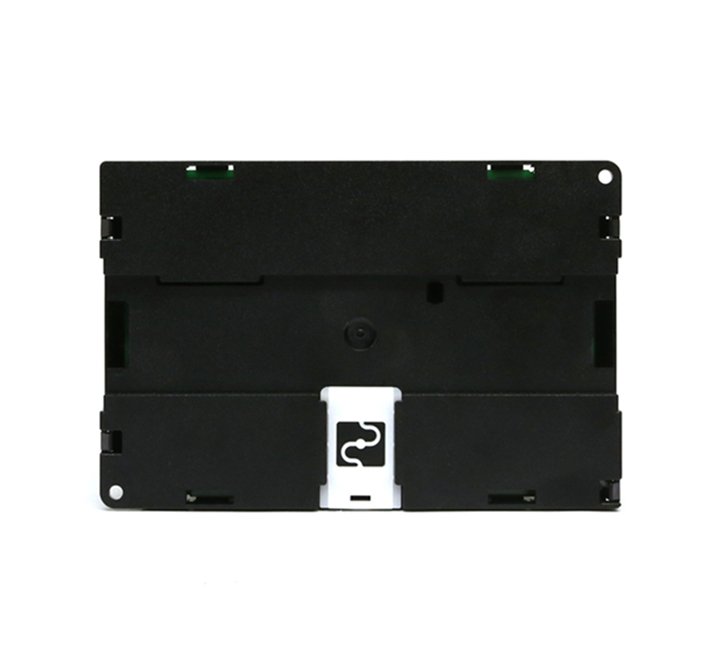

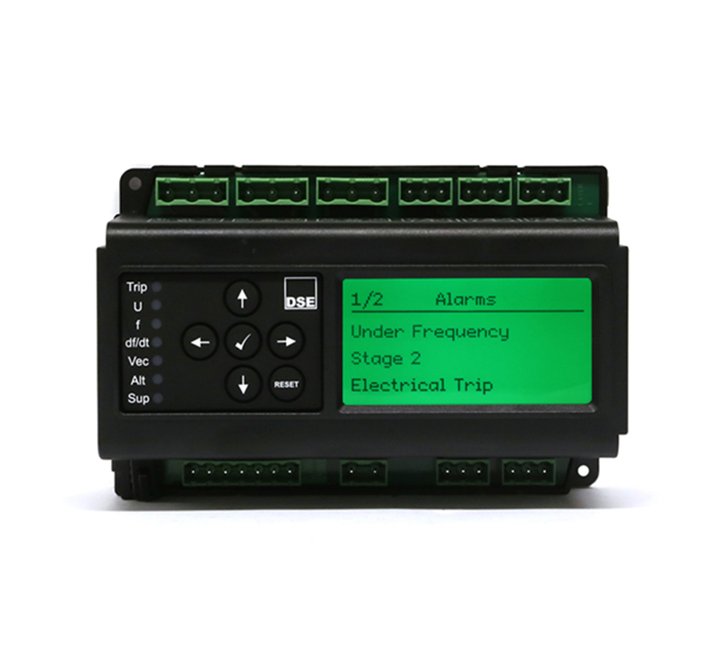

Original DSEP100 | Mains Decoupling Relay
OVERALL SIZE
157 mm x 95 mm x 67 mm (6.2” x 3.5” x 2.6”)
PANEL CUTOUT SIZE
N/A
MAXIMUM PANEL THICKNESS
N/A
WEIGHT
0.38kg
PRODUCT VARIANTS
P100-01 – P100 Mains (Utility) Decoupling Relay
157 mm x 95 mm x 67 mm (6.2” x 3.5” x 2.6”)
PANEL CUTOUT SIZE
N/A
MAXIMUM PANEL THICKNESS
N/A
WEIGHT
0.38kg
PRODUCT VARIANTS
P100-01 – P100 Mains (Utility) Decoupling Relay
Call for Quote for international purchases!
Price range: $1,188.99 through $2,197.99
SKU: P100-01
Categories: AVR | DSE, Main Protection Relay
Tags:Control Modules, DSE

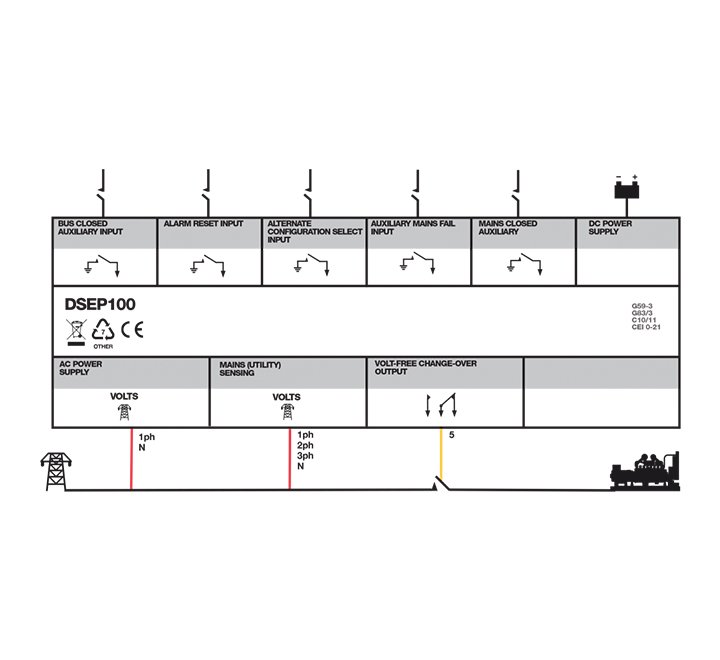

[vc_row][vc_column][vc_column_text]The DSEP100 G59 mains protection relay detects and protects multiple devices that generate power in parallel with a mains (utility) supply. Examples include diesel generators, photovoltaic (solar) installations and wind turbine installations.
The DSEP100 ensures that all mains (utility) failures are detected. When detection takes place the mains (utility) supply is disconnected from the local source in line with international requirements. This removes the risk of power being supplied to an islanded grid. [/vc_column_text][/vc_column][/vc_row]
